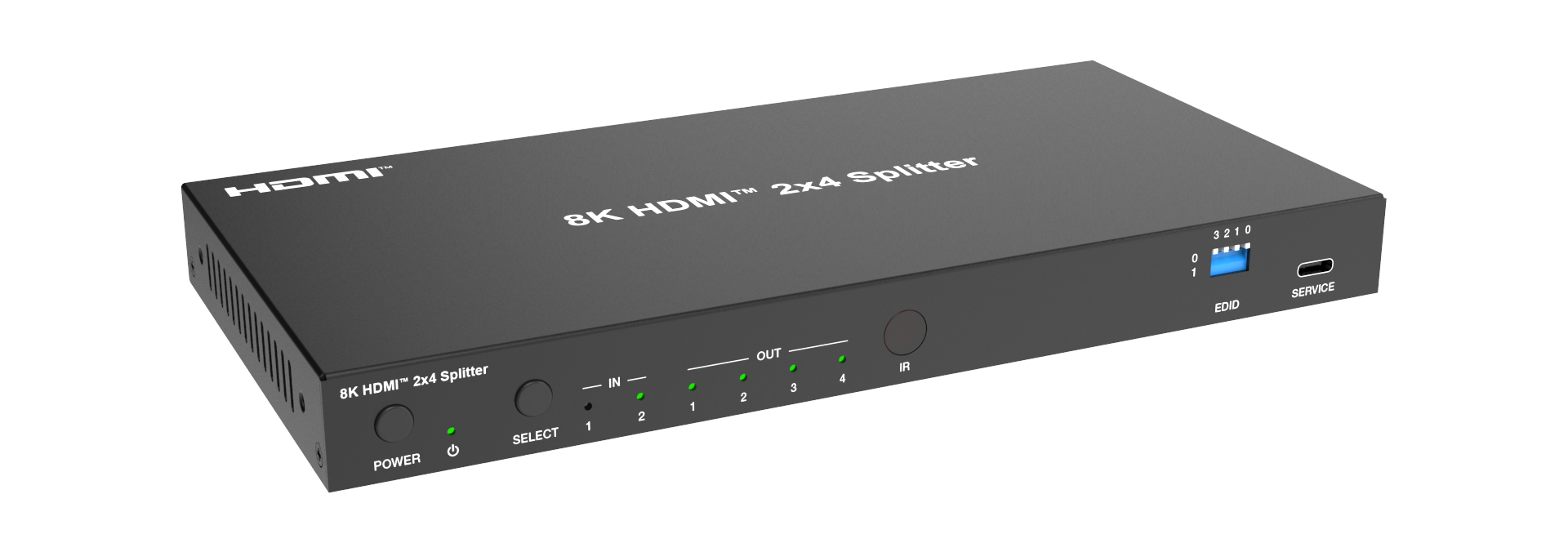

48Gbps 2x4 HDMI Splitter
MSPL-SPC24AP
48Gbps 2x4 HDMI Splitter (MSPL-SPC24AP) is a MEGRA MATRIX splitter that copies one source to several displays at the same time.
It is for rooms that send one source to many displays — lobbies, classrooms, and signage walls.
Key facts from this model: 2 in / 4 out; 8K; 3m class; HDMI 2.1.
- HDCP 2.3 compliant
- Support 48Gbps video bandwidth
- Support resolution up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
- Support HDR, HDR10, HDR10+, Dolby Vision, ALLM/VRR pass-through
- Support 8K->4K/2K downscaling on each output for legacy display
- Support HDR to SDR conversion on each output for legacy display
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: Up to LPCM/Dolby/DTS 5.1CH L/R Out: LPCM 2CH |
| Audio Parameters | Output Impedanc / 300 Ohm |
| Output Level (Maximum) | 8.2dBu(2Vrms) @balanced audio 2.2dBu(1Vrms) @unbalanced audio |
| Frequency Response | (+0.5dB，-1dB) 20Hz to 20KHz |
| Audio Output Sync Delay | 0 to 2.2ms |
| Audio S/N Ratio | 99dB@2Vrms, 1KHz, A-weighted |
| Audio THD+N | <0.2%@0dBV, 1KHz |
| IR Level | 12Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 3m/9.8ft over HDMI cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connections | |
| Input | 2× IN [HDMI type A, 19-pin female] |
| Output | 4× OUT [HDMI type A, 19-pin female] 1× OPTICAL [S/PDIF] 1× L/R [5pin-3.5mm phoenix connector] |
| Control | 1× RS-232 [3pin-3.5mm phoenix connector] 1× IR CTL [3.5mm stereo mini-jack] 1× SERVICE [USB type C, upgrade port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 220mm [W] × 110mm [D] × 21.5mm [H] |
| Weight | 620g |
| Power Supply | DC 12V/1A |
| Power Consumption | 6.24W |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% relative humidity, non-condensing |
| Relative Humidity | 10%~90% relative humidity, non-condensing |
Questions about this model
What job is 48Gbps 2x4 HDMI Splitter for?
48Gbps 2x4 HDMI Splitter is a MEGRA MATRIX splitter. It copies one source to several displays at the same time.
What are the key facts and limits of MSPL-SPC24AP?
MSPL-SPC24AP is listed with: 2 in / 4 out; 8K; 3m class; HDMI 2.1. Full connections are in the specification table on this page.
When should I choose a splitter instead of a matrix or switcher?
Choose a splitter when every display must show the same source at the same time. A matrix is for screens that need different sources. A switcher is several sources to one screen. An extender is one source to one distant screen. A converter does not multiply outputs.
What should I send for a correct quote on MSPL-SPC24AP?
WhatsApp MEGRA with model MSPL-SPC24AP, the client name, and the location. Add room type and I/O or run length if you already know them.
Will each output show a different source?
No. MSPL-SPC24AP is a splitter — every output shows the same input. It is listed as 2 in / 4 out. Different pictures on each screen need a matrix.
