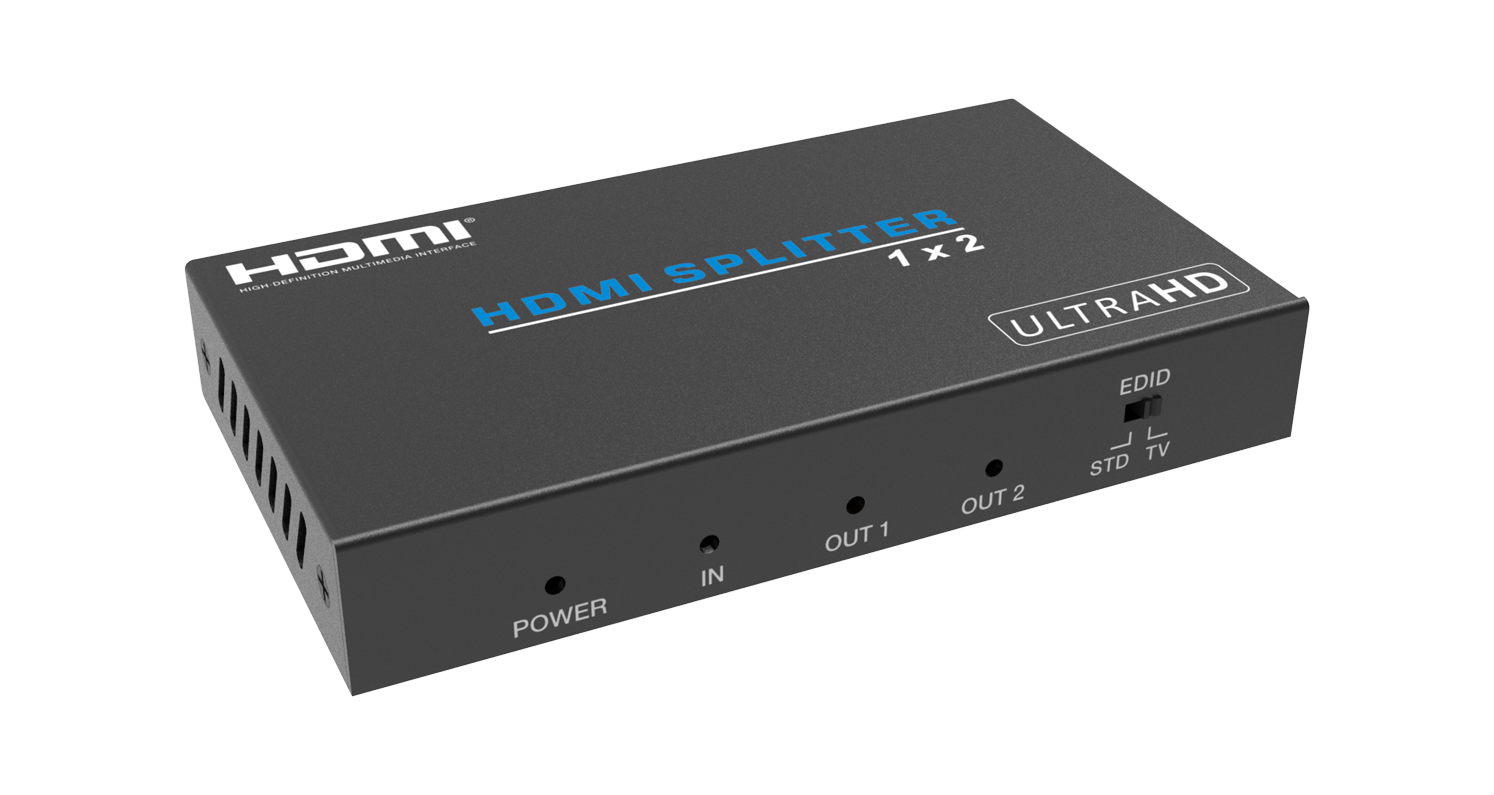

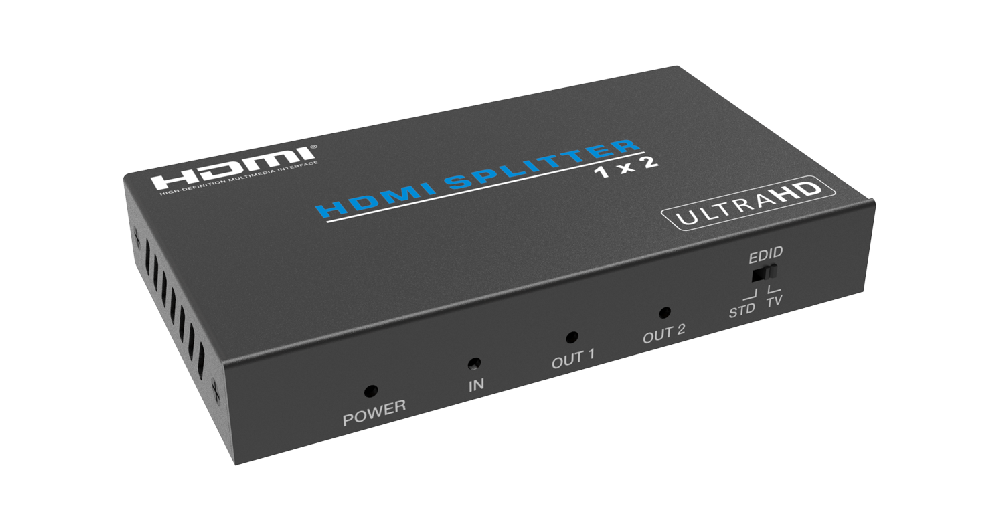

1x2 4K60 HDMI Splitter
MSPL-B12IH
1x2 4K60 HDMI Splitter (MSPL-B12IH) is a MEGRA MATRIX splitter that copies one source to several displays at the same time.
It is for rooms that send one source to many displays — lobbies, classrooms, and signage walls.
Key facts from this model: 1 in / 2 out; 4K60; 4K2K@24/25/30/60Hz.
- HDMI 2.0b, HDCP 2.2 compliant
- Up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
- VESA format up to QSXGA@60Hz
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Built-in equalizer, retiming and driver
- Smart EDID, STD(1080p) mode and TV(copy OUT1) mode
For quote: model + client name + location
Specifications
| Technical | |
| Video Bandwidth | 600MHz/18Gbps |

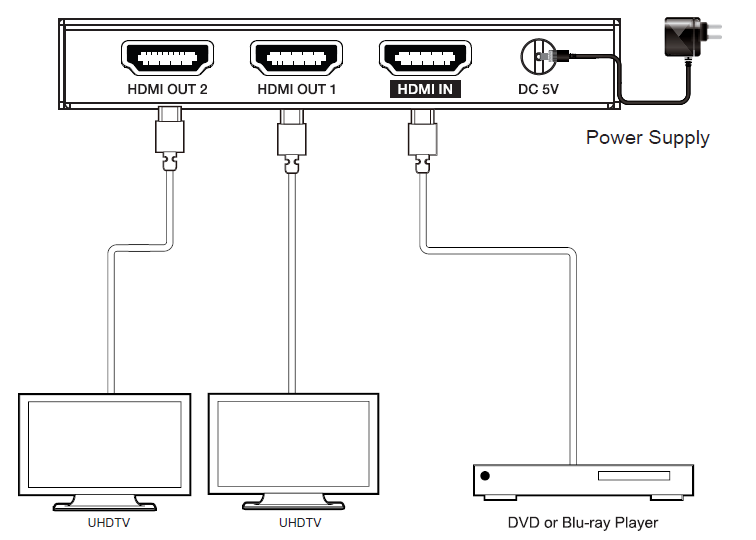

| Input Port | 1xHDMI Type A (19-pin female) |
| Output Ports | 2xHDMI Type A (19-pin female) |
| Video Resolution | 4K2K@24/25/30/60Hz |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Mechanical | |
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Dimensions | 56 mm(W)x100 mm(D)x16mm(H) |
| Weight | 165g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 2W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 1x2 4K60 HDMI Splitter for?
1x2 4K60 HDMI Splitter is a MEGRA MATRIX splitter. It copies one source to several displays at the same time.
What are the key facts and limits of MSPL-B12IH?
MSPL-B12IH is listed with: 1 in / 2 out; 4K60; 4K2K@24/25/30/60Hz. Full connections are in the specification table on this page.
When should I choose a splitter instead of a matrix or switcher?
Choose a splitter when every display must show the same source at the same time. A matrix is for screens that need different sources. A switcher is several sources to one screen. An extender is one source to one distant screen. A converter does not multiply outputs.
What should I send for a correct quote on MSPL-B12IH?
WhatsApp MEGRA with model MSPL-B12IH, the client name, and the location. Add room type and I/O or run length if you already know them.
Will each output show a different source?
No. MSPL-B12IH is a splitter — every output shows the same input. It is listed as 1 in / 2 out. Different pictures on each screen need a matrix.
