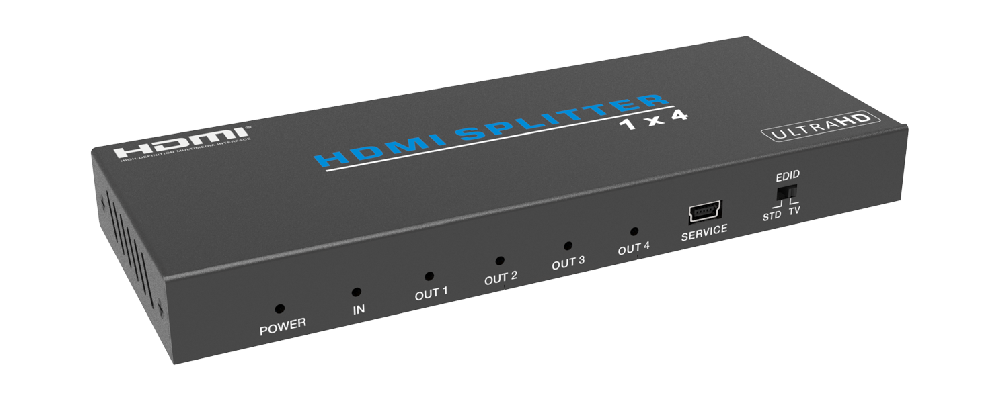

1x4 4K60 HDMI Splitter
MSPL-B14IH
1x4 4K60 HDMI Splitter (MSPL-B14IH) is a MEGRA MATRIX splitter that copies one source to several displays at the same time.
It is for rooms that send one source to many displays — lobbies, classrooms, and signage walls.
Key facts from this model: 1 in / 4 out; 4K60; 480i-1080P50/60,4K2K@24/30,4K2K@60Hz.
- HDMI 2.0b, HDCP 2.2 compliant
- Supports video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
- Support 3D frame sequential video format up to 1080p@60;
- Supports 3D frame sequential video format up to 4K2K@30Hz
- Supports high resolution VESA mode video format up to QSXGA@60Hz
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
For quote: model + client name + location
Specifications
| Technical | |
| Video Bandwidth | 600MHz/18Gbps |

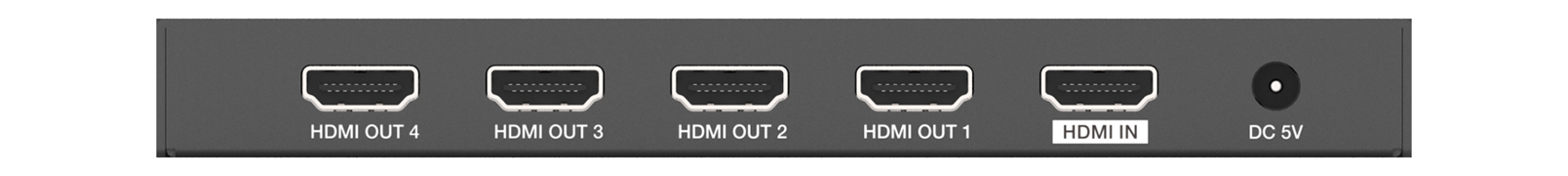

| Input Port | 1x HDMI Type A (19-pin female) |
| Output Ports | 4x HDMI Type A (19-pin female) |
| Video Resolution | 480i-1080P50/60,4K2K@24/30,4K2K@60Hz |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Dimensions | 63mm (W) x 163mm (D) x 16mm (H) |
| Weight | 260g |
| Power Supply | 5V/1A DC (US/EU standards，CE/FCC/UL certified) |
| Power Consumption | 2W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 1x4 4K60 HDMI Splitter for?
1x4 4K60 HDMI Splitter is a MEGRA MATRIX splitter. It copies one source to several displays at the same time.
What are the key facts and limits of MSPL-B14IH?
MSPL-B14IH is listed with: 1 in / 4 out; 4K60; 480i-1080P50/60,4K2K@24/30,4K2K@60Hz. Full connections are in the specification table on this page.
When should I choose a splitter instead of a matrix or switcher?
Choose a splitter when every display must show the same source at the same time. A matrix is for screens that need different sources. A switcher is several sources to one screen. An extender is one source to one distant screen. A converter does not multiply outputs.
What should I send for a correct quote on MSPL-B14IH?
WhatsApp MEGRA with model MSPL-B14IH, the client name, and the location. Add room type and I/O or run length if you already know them.
Will each output show a different source?
No. MSPL-B14IH is a splitter — every output shows the same input. It is listed as 1 in / 4 out. Different pictures on each screen need a matrix.
