1x4 4K60 HDMI Splitter (4K to 2K/Audio Breakout)
MSPL-B14SA

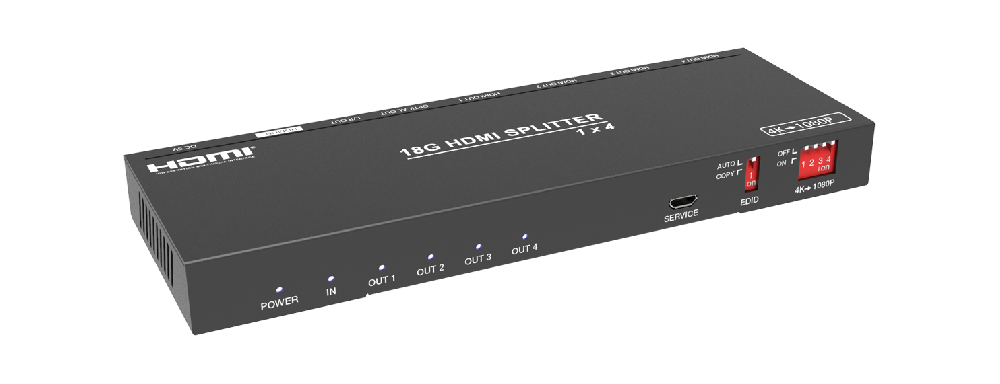

1x4 4K60 HDMI Splitter (4K to 2K/Audio Breakout) (MSPL-B14SA) is a MEGRA MATRIX splitter that copies one source to several displays at the same time.
It is for rooms that send one source to many displays — lobbies, classrooms, and signage walls.
Key facts from this model: 1 in / 4 out; 4K60; HDMI 2.0b.
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
- Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)
- Supports digital and analog audio extract output from HDMI source.

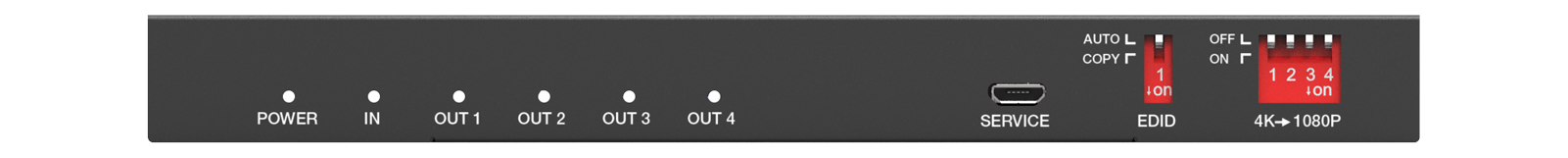

- Supports output bypass and 4K->1080P downscaler function via dial switch on panel.
- EDID can be selected COPY and AUTO modes via dial switch on panel.(COPY: It copys OUT 1 port EDID setting to all outputs port, If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT 1~2 capable EDID is detected then the unit will copy HDMI OUT 3...etc. The priority order is OUT 1 to OUT 4. AUTO: Compare OUT 1~OUT 4 EDID setting and output the best resolution to all outputs).
- Supports analog audio PCM 2.0.
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) |
| Color Depth | 4K60Hz 8-bit, 1080P 12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| L/R Audio Formats | PCM 2.0 |
| Optical Audio Formats | LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+,DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

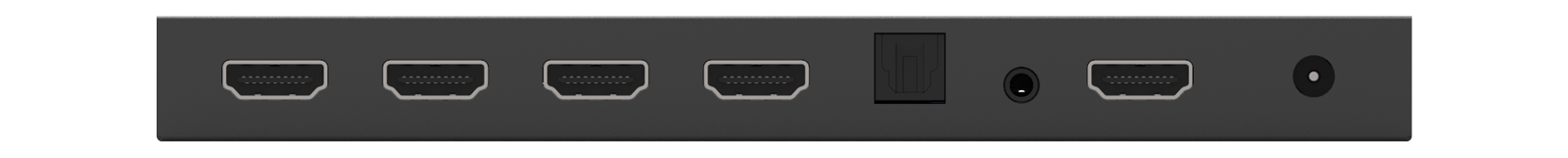

| Input Port | 1x HDMI Type A [19-pin female] |

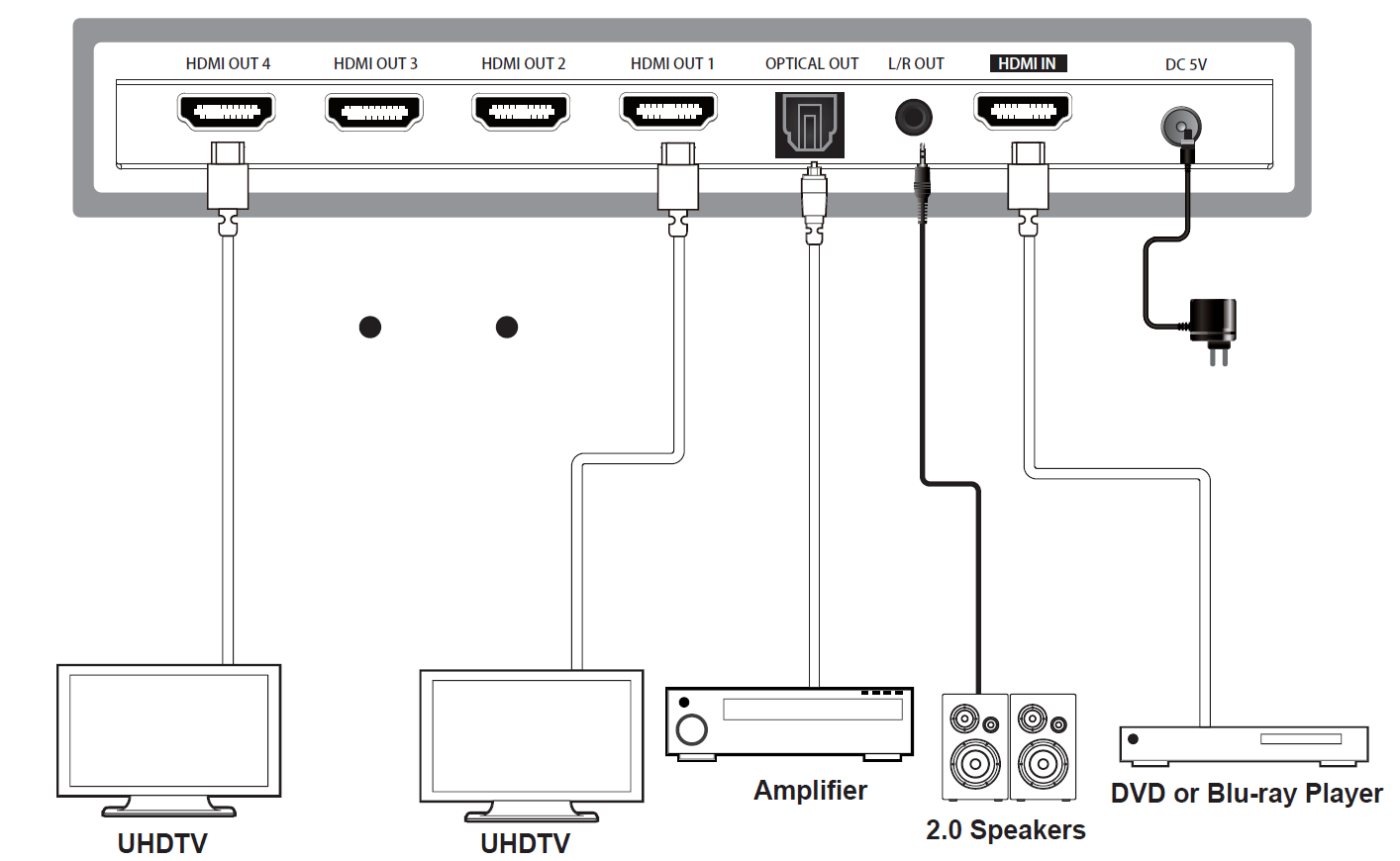

| Output Ports | 4x HDMI Type A [19-pin female] 1x L/R Audio out [3.5mm Stereo Mini-jack] 1x Optical out [S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 180mm(W)x62mm(D)x14mm(H) |
| Weight | 227g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC5V/1A (US/EU standards，CE/FCC/UL certified) |
| Power Consumption | 3.5W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 1x4 4K60 HDMI Splitter (4K to 2K/Audio Breakout) for?
1x4 4K60 HDMI Splitter (4K to 2K/Audio Breakout) is a MEGRA MATRIX splitter. It copies one source to several displays at the same time.
What are the key facts and limits of MSPL-B14SA?
MSPL-B14SA is listed with: 1 in / 4 out; 4K60; HDMI 2.0b. Full connections are in the specification table on this page.
When should I choose a splitter instead of a matrix or switcher?
Choose a splitter when every display must show the same source at the same time. A matrix is for screens that need different sources. A switcher is several sources to one screen. An extender is one source to one distant screen. A converter does not multiply outputs.
What should I send for a correct quote on MSPL-B14SA?
WhatsApp MEGRA with model MSPL-B14SA, the client name, and the location. Add room type and I/O or run length if you already know them.
Will each output show a different source?
No. MSPL-B14SA is a splitter — every output shows the same input. It is listed as 1 in / 4 out. Different pictures on each screen need a matrix.
