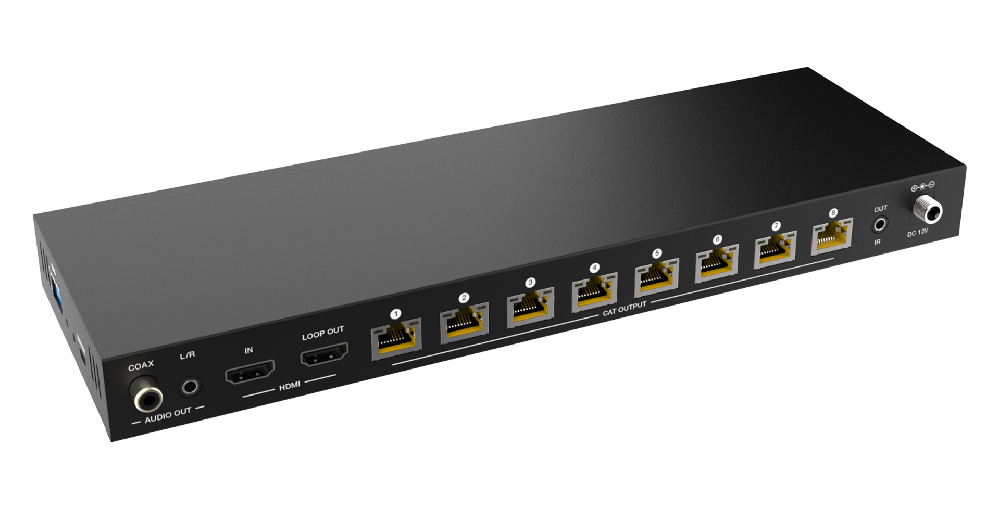

1x8 4K60 CAT Splitter (60m)
MSPL-SPB18D60
1x8 4K60 CAT Splitter (60m) (MSPL-SPB18D60) is a MEGRA MATRIX splitter that copies one source to several displays at the same time.
It is for rooms that send one source to many displays — lobbies, classrooms, and signage walls.
Key facts from this model: 1 in / 8 out; 4K60; 60m class; HDMI 2.0.
- HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@50/60Hz 4:4:4
- Support 3D, HDR, HDR10+, HLG and Dolby vision
- Support up to 7.1CH HD audio pass-through
- Support digital and analog audio de-embedded output
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Up to 4k2k@50/60Hz 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
| HDR | Support HDR10, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Coaxial Audio Formats | LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH |
| Analog Audio Formats | PCM 2.0 |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |

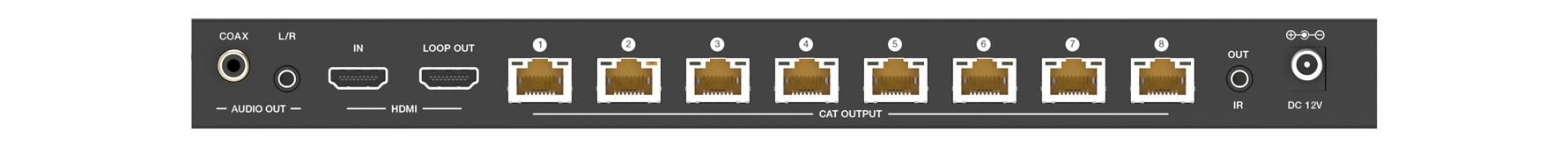

| Connections | |
| Input | 1x HDMI Type A (19-pin female) |
| Output | 1x HDMI Type A (19-pin female） 8x CAT OUT [RJ45, 8-pin female] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [3.5mm Stereo Mini-jack] |
| Control | 1x SERVICE (Micro USB, Update port） 1x EDID DIAL switch [5-pin] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | Transmitter: 300mm (W) x 100mm (D) x 28mm (H) Receiver: 88mm (W) x 61mm (D) x 18mm (H) |
| Weight | Transmitter: 823g Receiver:155g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 25.44W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 1x8 4K60 CAT Splitter (60m) for?
1x8 4K60 CAT Splitter (60m) is a MEGRA MATRIX splitter. It copies one source to several displays at the same time.
What are the key facts and limits of MSPL-SPB18D60?
MSPL-SPB18D60 is listed with: 1 in / 8 out; 4K60; 60m class; HDMI 2.0. Full connections are in the specification table on this page.
When should I choose a splitter instead of a matrix or switcher?
Choose a splitter when every display must show the same source at the same time. A matrix is for screens that need different sources. A switcher is several sources to one screen. An extender is one source to one distant screen. A converter does not multiply outputs.
What should I send for a correct quote on MSPL-SPB18D60?
WhatsApp MEGRA with model MSPL-SPB18D60, the client name, and the location. Add room type and I/O or run length if you already know them.
Will each output show a different source?
No. MSPL-SPB18D60 is a splitter — every output shows the same input. It is listed as 1 in / 8 out. Different pictures on each screen need a matrix.
