1x4 4K60 HDBaseT Splitter (150m)
MSPL-SPB14H150

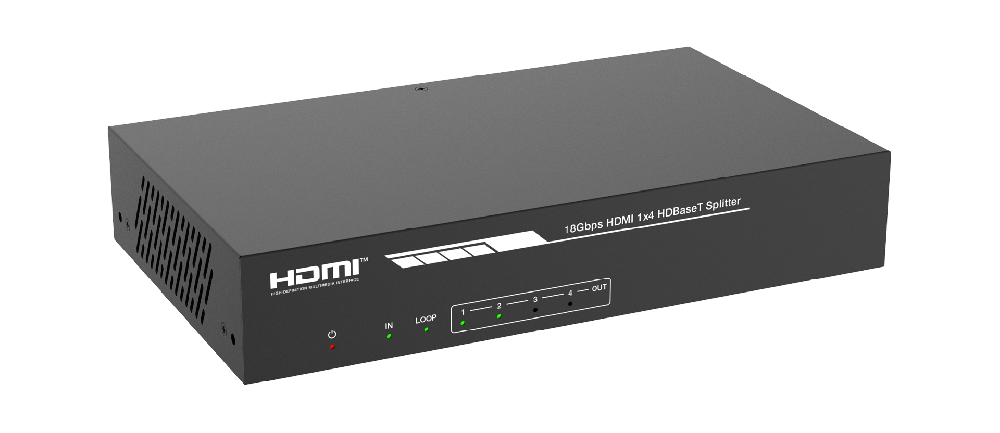

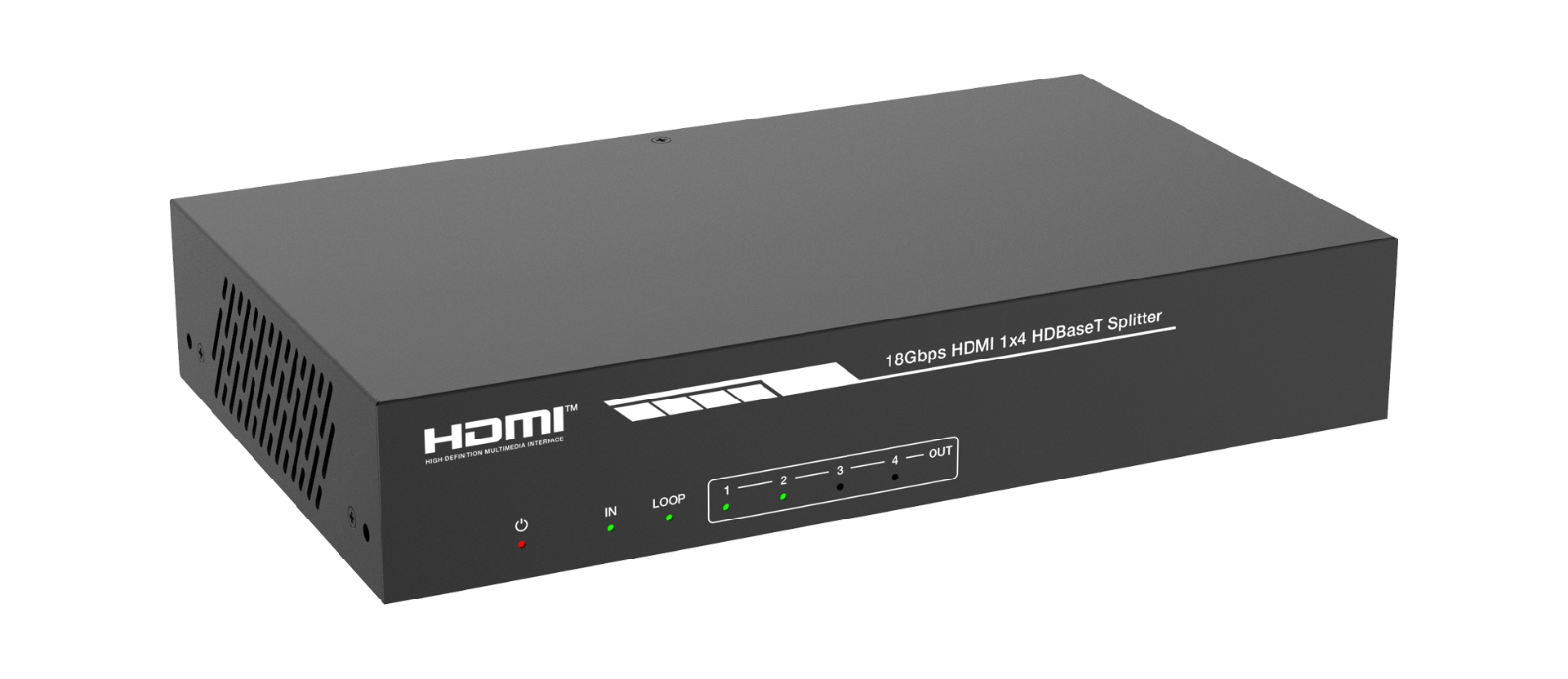

1x4 4K60 HDBaseT Splitter (150m) (MSPL-SPB14H150) is a MEGRA MATRIX splitter that copies one source to several displays at the same time.
It is for rooms that send one source to many displays — lobbies, classrooms, and signage walls.
Key facts from this model: 1 in / 4 out; 4K60; 150m class; HDMI 2.0b.
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz 4:4:4
- Support HDR, HDR10+, HLG and Dolby vision
- Support up to 7.1CH HD audio pass-through
- Support digital and analog audio de-embedded output
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Up to 4k2k@60Hz 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR | Support HDR10, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| Analog Audio Formats | PCM 2.0CH |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Input | 1x HDMI Type A (19-pin female) |

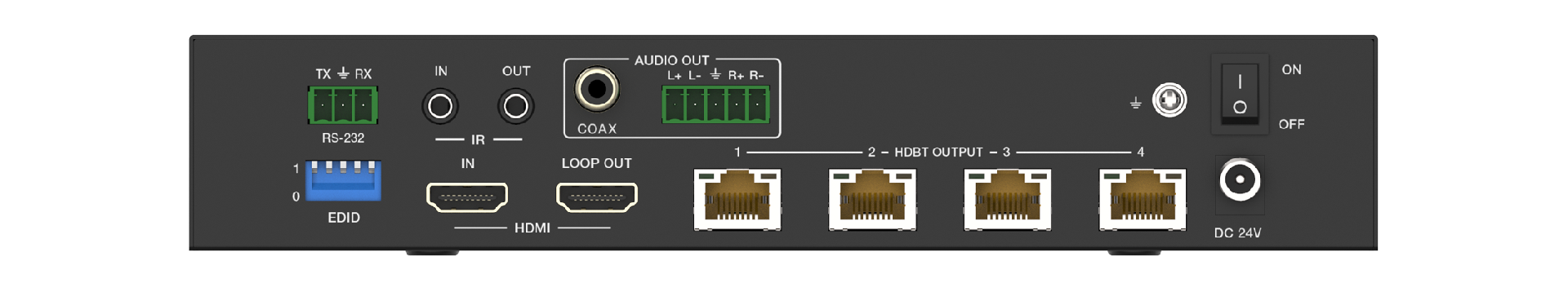

| Output | 1x HDMI Type A (19-pin female） 4x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector] |
| Control | 1x RS-232 (3-pin phoenix connector） 1x EDID DIP switch [5-pin] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | Transmitter: 220mm (W) × 130mm (D) × 40mm (H) Receiver: 140mm (W) × 65mm (D) × 18mm (H) |
| Weight | Transmitter: 853g; Receiver: 246g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/2.7A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 35W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 1x4 4K60 HDBaseT Splitter (150m) for?
1x4 4K60 HDBaseT Splitter (150m) is a MEGRA MATRIX splitter. It copies one source to several displays at the same time.
What are the key facts and limits of MSPL-SPB14H150?
MSPL-SPB14H150 is listed with: 1 in / 4 out; 4K60; 150m class; HDMI 2.0b. Full connections are in the specification table on this page.
When should I choose a splitter instead of a matrix or switcher?
Choose a splitter when every display must show the same source at the same time. A matrix is for screens that need different sources. A switcher is several sources to one screen. An extender is one source to one distant screen. A converter does not multiply outputs.
What should I send for a correct quote on MSPL-SPB14H150?
WhatsApp MEGRA with model MSPL-SPB14H150, the client name, and the location. Add room type and I/O or run length if you already know them.
Will each output show a different source?
No. MSPL-SPB14H150 is a splitter — every output shows the same input. It is listed as 1 in / 4 out. Different pictures on each screen need a matrix.
