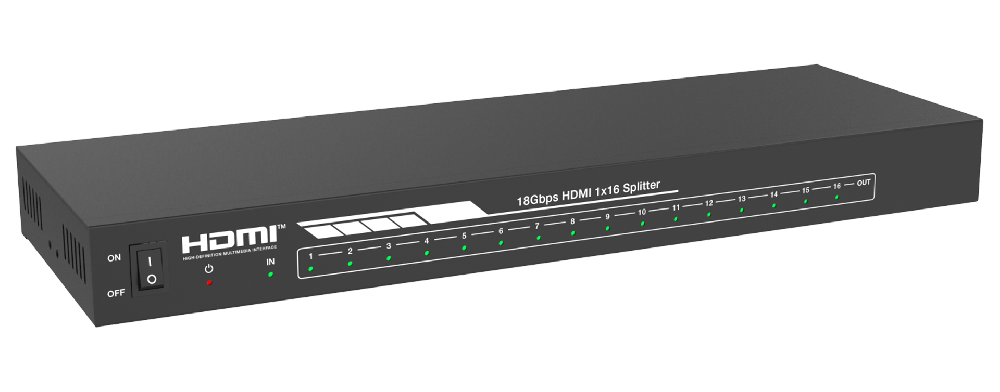

1x16 4K60 HDMI Splitter
MSPL-SPB116

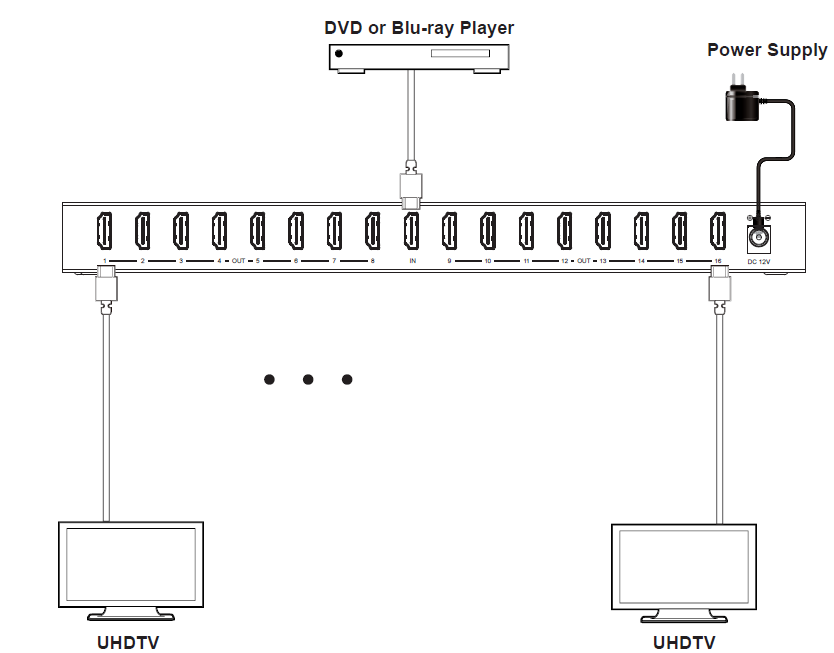

1x16 4K60 HDMI Splitter (MSPL-SPB116) is a MEGRA MATRIX splitter that copies one source to several displays at the same time.
It is for rooms that send one source to many displays — lobbies, classrooms, and signage walls.
Key facts from this model: 1 in / 16 out; 4K60; HDMI 2.0b; Up to 4k2k@50/60Hz 4:4:4.
- HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@50/60Hz 4:4:4
- Support digital audio format: DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
- Support HDR, HDR10, HDR10+, HLG and Dolby vision
- Advanced EDID management
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Up to 4k2k@50/60Hz 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0 |
| HDR | Support HDR, HDR10, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby TrueHD, DTS-HD |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

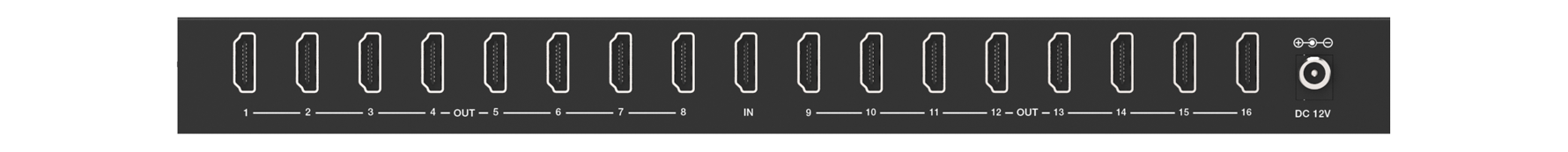

| Input Port | 1x HDMI Type A (19-pin female) |
| Output Ports | 16x HDMI Type A (19-pin female） |
| Control | 1x SERVICE (Micro USB, Update port） 1x DIAL switch [5-pin] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 300mm (W) x 100mm (D) x 28mm (H) |
| Weight | 900g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 12W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 1x16 4K60 HDMI Splitter for?
1x16 4K60 HDMI Splitter is a MEGRA MATRIX splitter. It copies one source to several displays at the same time.
What are the key facts and limits of MSPL-SPB116?
MSPL-SPB116 is listed with: 1 in / 16 out; 4K60; HDMI 2.0b; Up to 4k2k@50/60Hz 4:4:4. Full connections are in the specification table on this page.
When should I choose a splitter instead of a matrix or switcher?
Choose a splitter when every display must show the same source at the same time. A matrix is for screens that need different sources. A switcher is several sources to one screen. An extender is one source to one distant screen. A converter does not multiply outputs.
What should I send for a correct quote on MSPL-SPB116?
WhatsApp MEGRA with model MSPL-SPB116, the client name, and the location. Add room type and I/O or run length if you already know them.
Will each output show a different source?
No. MSPL-SPB116 is a splitter — every output shows the same input. It is listed as 1 in / 16 out. Different pictures on each screen need a matrix.
