1x2 4K CAT Splitter (70m)
MSPL-SP912C70
1x2 4K CAT Splitter (70m) (MSPL-SP912C70) is a MEGRA MATRIX splitter that copies one source to several displays at the same time.
It is for rooms that send one source to many displays — lobbies, classrooms, and signage walls.
Key facts from this model: 1 in / 2 out; 4K; 70m class; HDMI 1.4.
- HDMI 1.4 and HDCP 1.4 compliant
- Video resolution up to 4K2K@30Hz (4:4:4) 8-bit
- Support audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
- Extend the signal transmission distance up to 40m/131ft at the resolution of 4K30 or 70m/230ft at 1080P@60Hz via a single CAT6 cable
- Support 1 HDMI input, 1 HDMI loop output and 2 CAT outputs
- Advanced EDID management
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 297MHz/10.2Gbps |
| Video Resolution | 480i -1080p50/60Hz, 4Kx2K@30Hz (4:4:4) |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K30Hz) |
| Color Space | RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0 |
| Audio Formats | LPCM 7.1CH, Dolby True HD and DTS-HD Master Audio |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

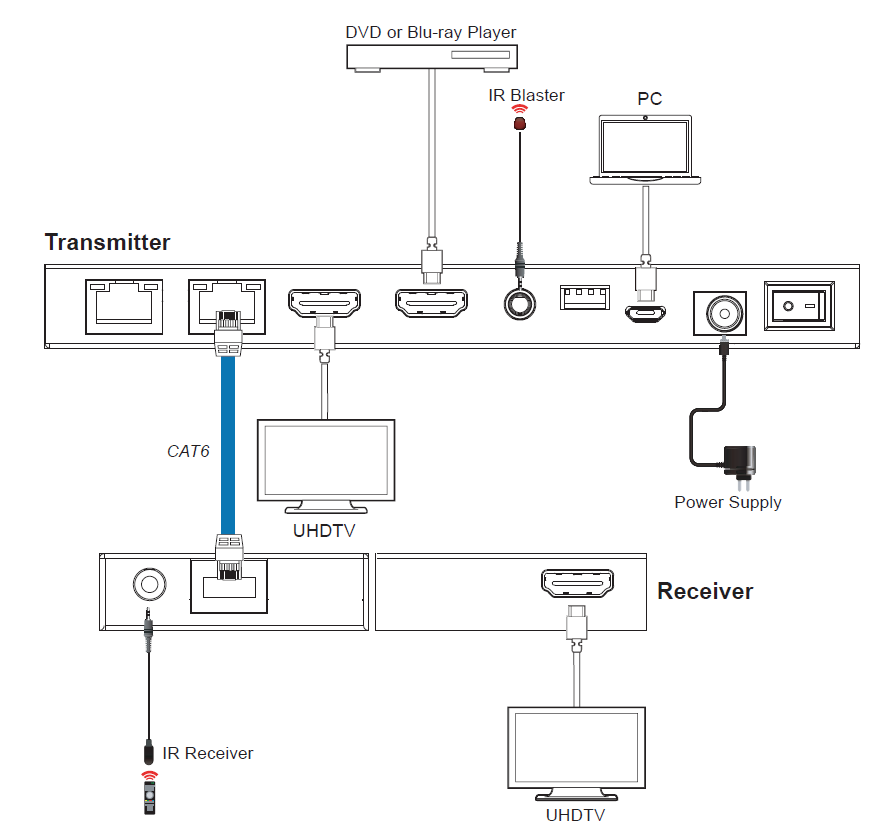

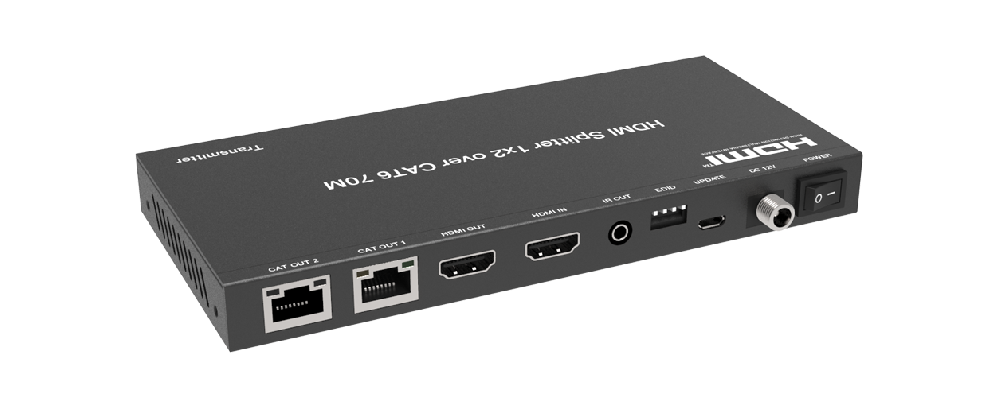

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 2x CAT OUT [RJ45] Controls: 1x IR OUT [3.5mm Stereo Mini-jack] 1x EDID DIP switch [4-pin] 1x UPDATE [Micro USB] |
| Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | Transmitter: 175mm (W) x 82mm (D) x 18mm (H) Receiver: 79.5mm (W) x 69mm (D) x 16.5mm (H) |
| Weight | Transmitter: 366g; Receiver: 130g |
| Power Supply | 12V/1A DC Locking Power (US/EU standards, CE/FCC/RoHs certificated) |
| Power Consumption | 5.4W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 1x2 4K CAT Splitter (70m) for?
1x2 4K CAT Splitter (70m) is a MEGRA MATRIX splitter. It copies one source to several displays at the same time.
What are the key facts and limits of MSPL-SP912C70?
MSPL-SP912C70 is listed with: 1 in / 2 out; 4K; 70m class; HDMI 1.4. Full connections are in the specification table on this page.
When should I choose a splitter instead of a matrix or switcher?
Choose a splitter when every display must show the same source at the same time. A matrix is for screens that need different sources. A switcher is several sources to one screen. An extender is one source to one distant screen. A converter does not multiply outputs.
What should I send for a correct quote on MSPL-SP912C70?
WhatsApp MEGRA with model MSPL-SP912C70, the client name, and the location. Add room type and I/O or run length if you already know them.
Will each output show a different source?
No. MSPL-SP912C70 is a splitter — every output shows the same input. It is listed as 1 in / 2 out. Different pictures on each screen need a matrix.
