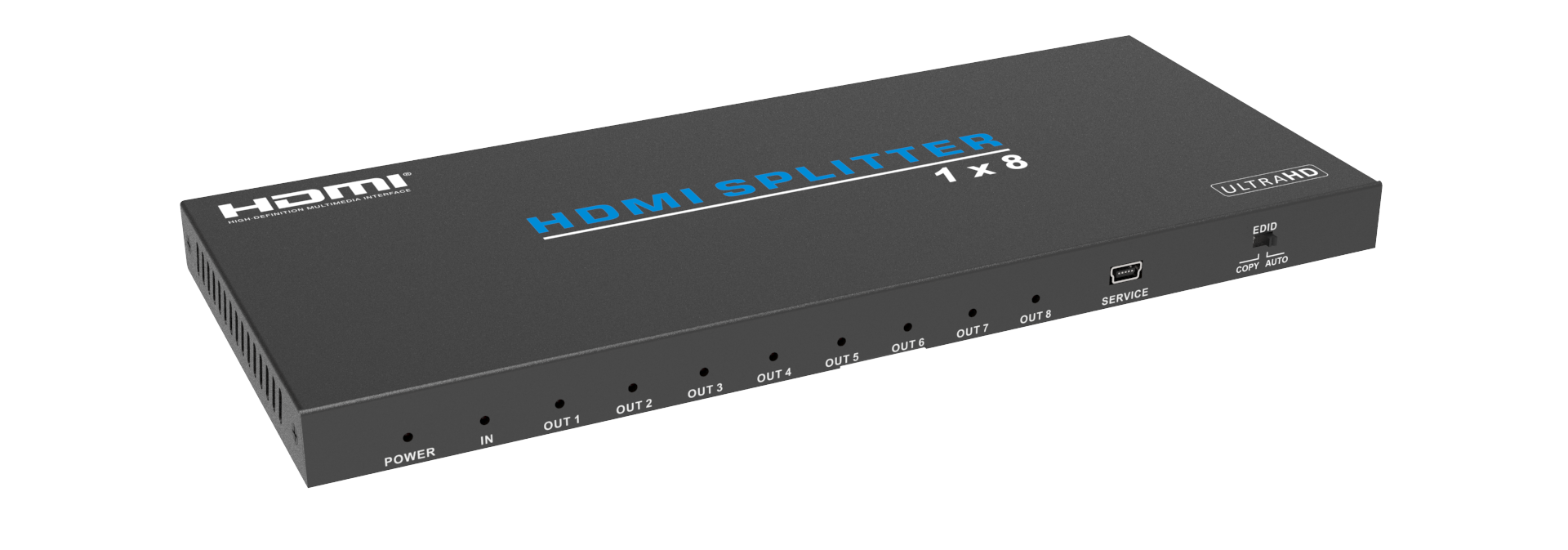

1x8 4K60 HDMI Splitter
MSPL-B18IH

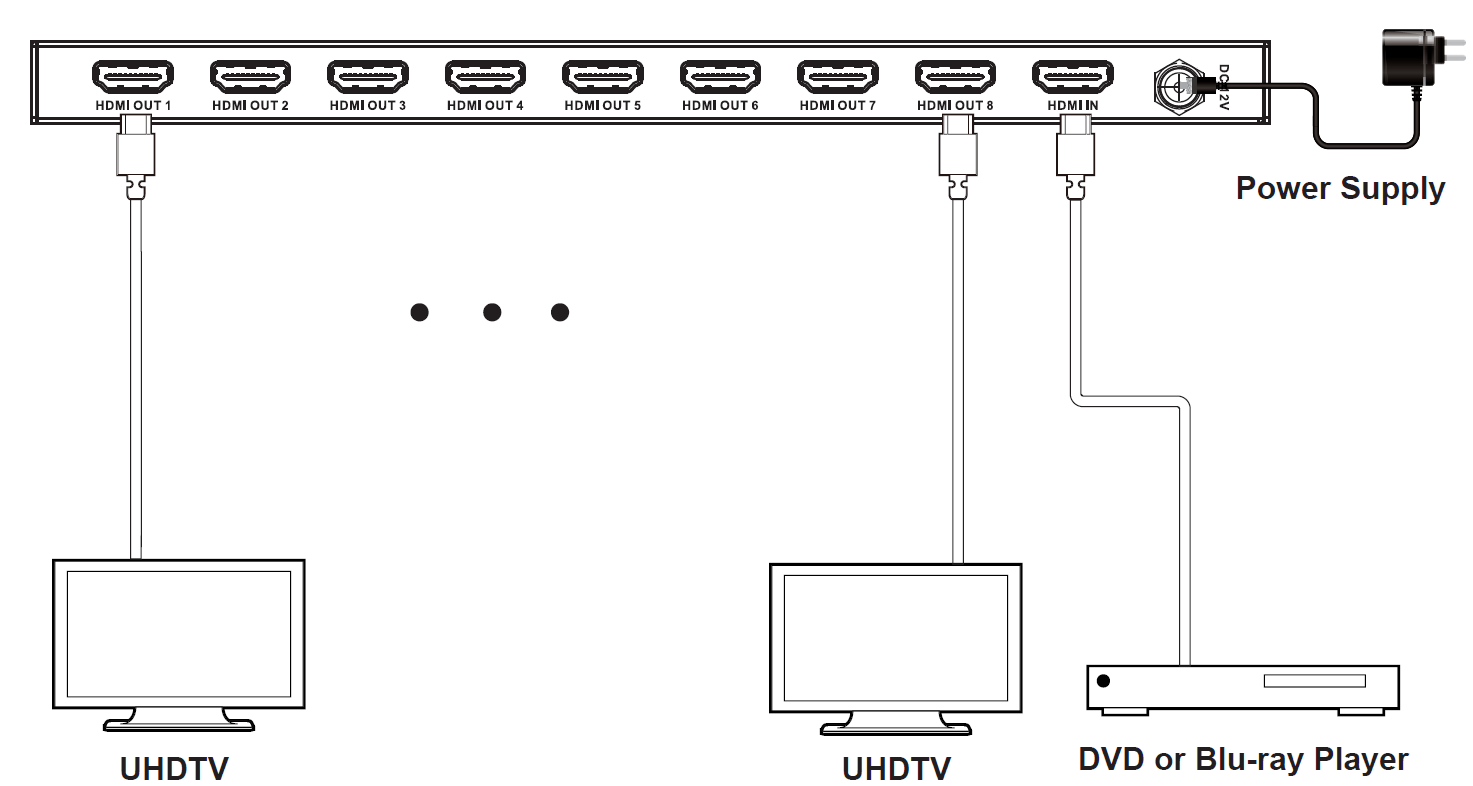

1x8 4K60 HDMI Splitter (MSPL-B18IH) is a MEGRA MATRIX splitter that copies one source to several displays at the same time.
It is for rooms that send one source to many displays — lobbies, classrooms, and signage walls.
Key facts from this model: 1 in / 8 out; 4K60; HDMI 2.0b; 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz.
- HDMI 2.0b, HDCP 2.2 compliant
- Supports 18Gbps bandwidth
- Supports resolution up to 4K@60Hz 4:4:4
- Supports HDR function
- Supports COPY/AUTO EDID control via dialling the dip switch
- Compact design for easy and flexible installation
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz |
| HDMI Audio Formats | PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

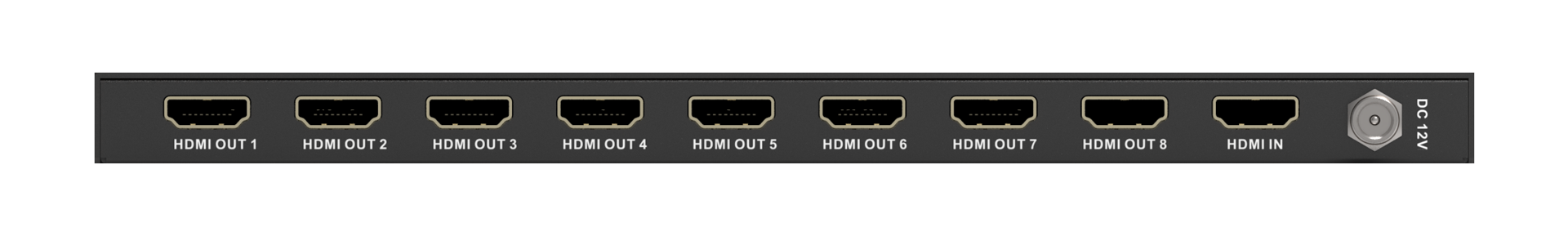

| Input Port | 1x HDMI Type A (19-pin female) 1x SERVICE (Micro USB, Update port) |
| Output Ports | 8x HDMI Type A (19-pin female） |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 243mm (W) x 102mm (D) x 16mm (H) |
| Weight | 572g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 6.15W |
| Operation Temperature | 14°F - 122°F / -10°C - 50°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 1x8 4K60 HDMI Splitter for?
1x8 4K60 HDMI Splitter is a MEGRA MATRIX splitter. It copies one source to several displays at the same time.
What are the key facts and limits of MSPL-B18IH?
MSPL-B18IH is listed with: 1 in / 8 out; 4K60; HDMI 2.0b; 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz. Full connections are in the specification table on this page.
When should I choose a splitter instead of a matrix or switcher?
Choose a splitter when every display must show the same source at the same time. A matrix is for screens that need different sources. A switcher is several sources to one screen. An extender is one source to one distant screen. A converter does not multiply outputs.
What should I send for a correct quote on MSPL-B18IH?
WhatsApp MEGRA with model MSPL-B18IH, the client name, and the location. Add room type and I/O or run length if you already know them.
Will each output show a different source?
No. MSPL-B18IH is a splitter — every output shows the same input. It is listed as 1 in / 8 out. Different pictures on each screen need a matrix.
