10 Keys Control Panel (Wall Plate)
MCTL-WPC10
10 Keys Control Panel (Wall Plate) (MCTL-WPC10) is a MEGRA MATRIX control product — a panel or controller for room operation, not a video router.
It is for rooms that need a touch panel, key panel, or central control next to the video rack.
Key facts from this model: Android 9.

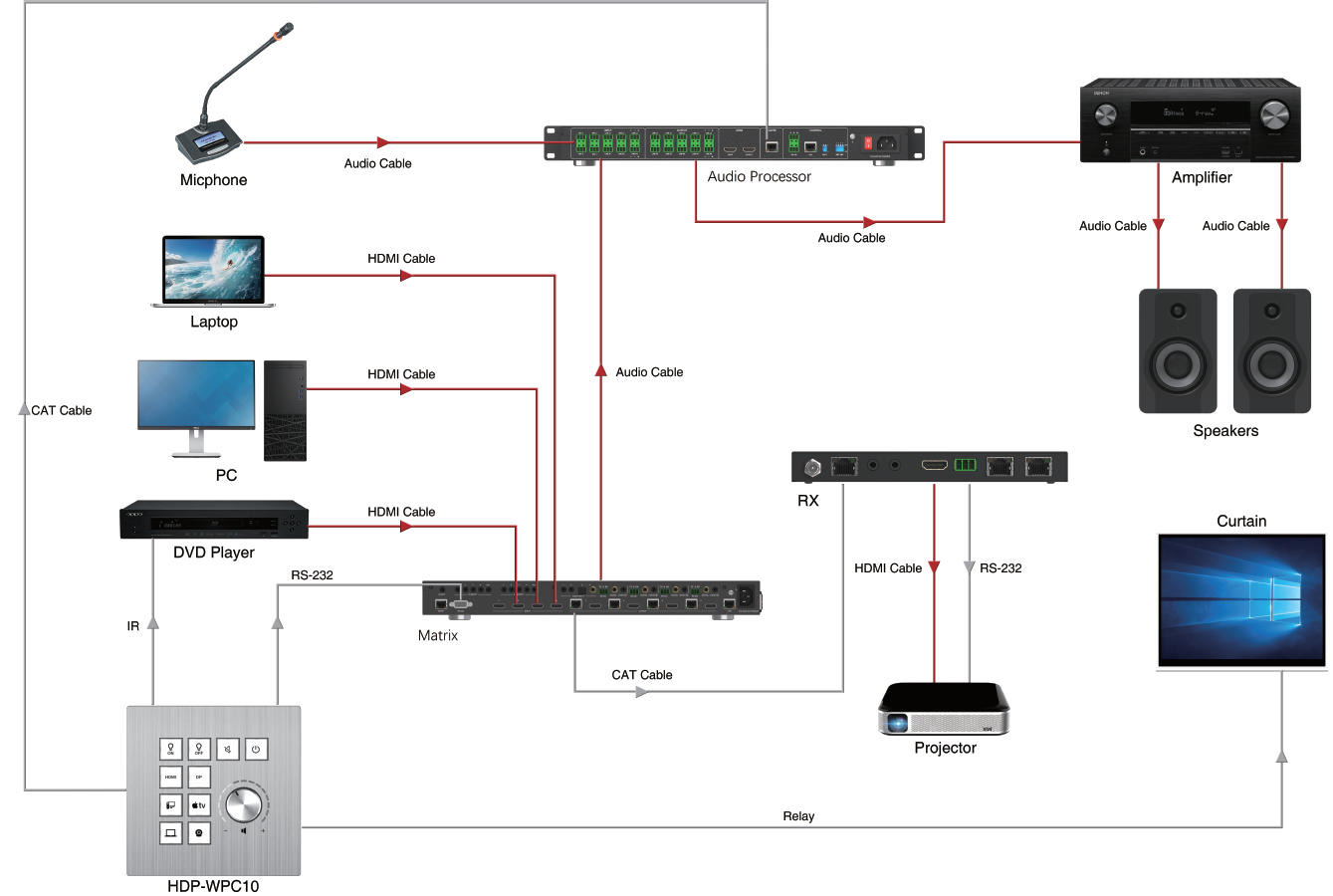

- With 2 two-way serial ports to connect matrixes, projectors or other A/V devices
- With 1 IR output/one-way serial port to connect DVD, TV sets, or other home appliances
- With 2 relay ports to control lights, doors or curtains
- With 1 digital input port to receive sensor signals

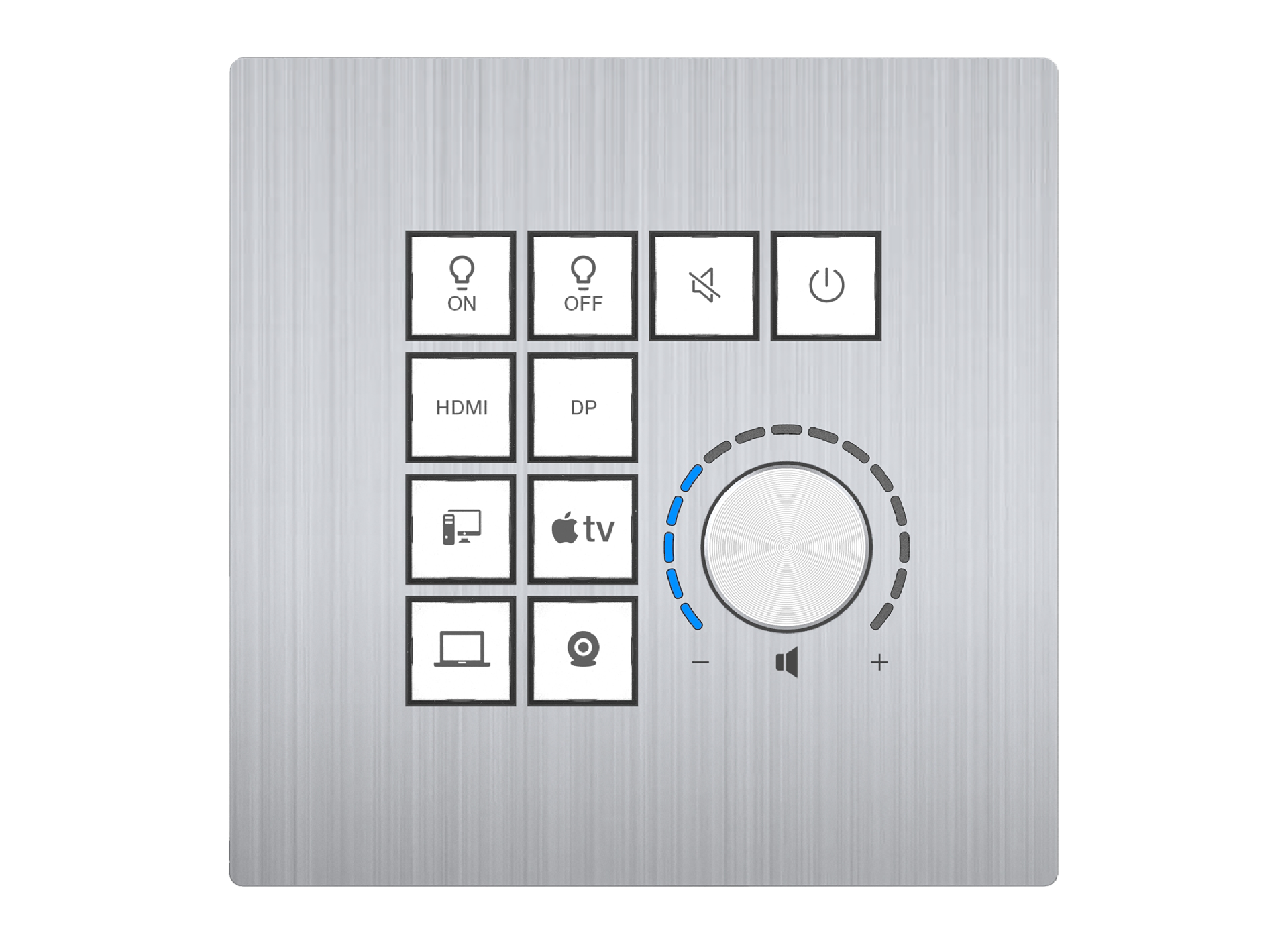

- With 10 programmable buttons for custom control logic
- With 1 programmable knob (with light indicator), volume can be controlled through the knob
For quote: model + client name + location
Specifications
| Technical | |
| CPU | ARM Cortex-A53 1.8GHz |
| Operation System | Android 9 |
| RAM | 2GB DDR4 RAM |
| Flash Memory | 8GB EMMC Flash |

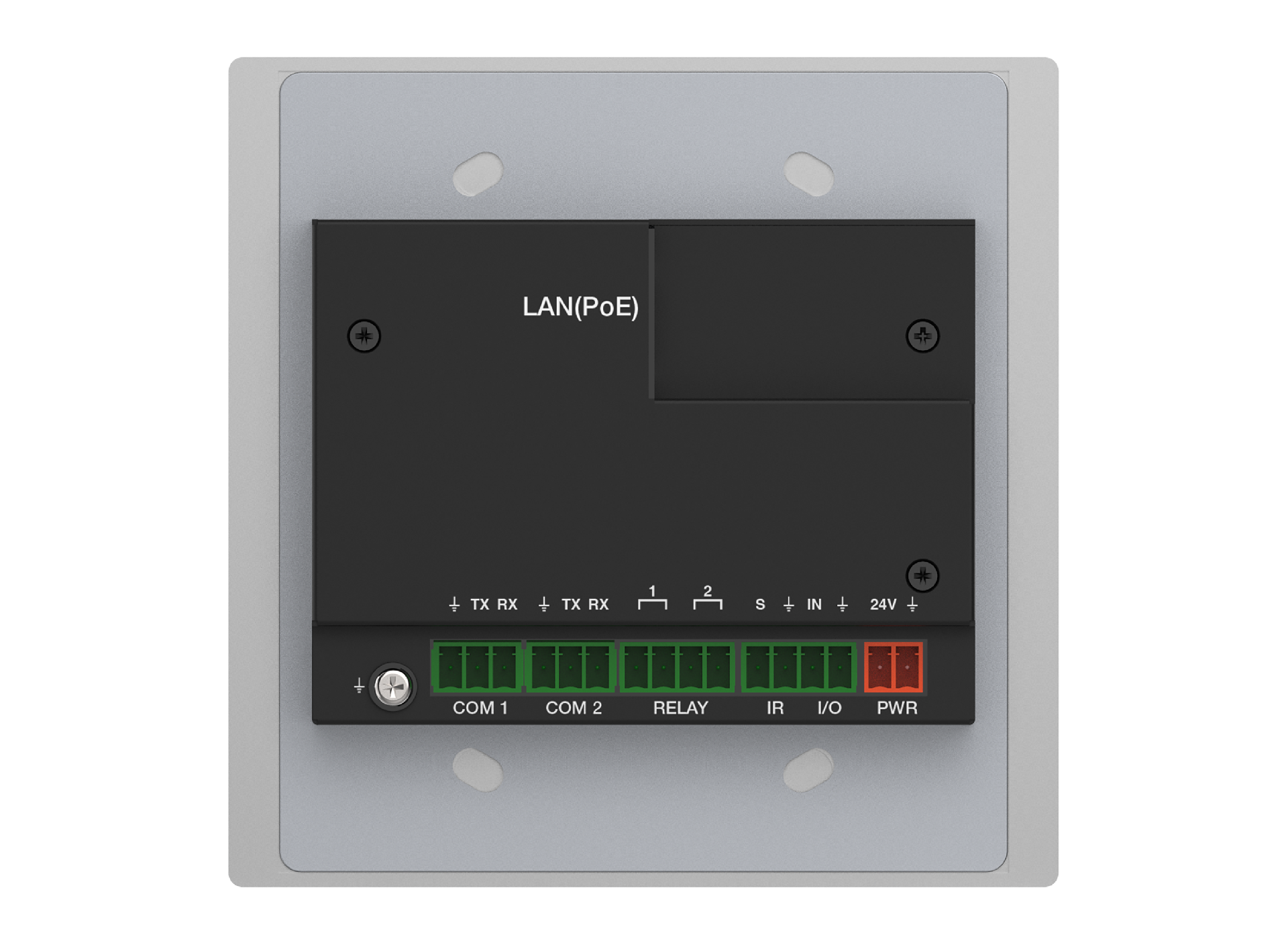

| Connections | |
| COM1/2 | 2x 3-pin Phoenix Connectors, for two-way RS-232 serial data communication |
| IR | 1x 2-pin Phoenix Connectors, for IR transmitting or one-way RS-232 serial data communication |
| RELAY | 2x 2-pin Phoenix Connectors, low-voltage relays, isolated, normally open, switching up to 30VDC, 1A / 125VAC, 0.3A |
| I/O | 1x 2-pin Phoenix Connectors, for digital signal inputting |
| LAN/POE | 1 standard 10M/100M/1000M Ethernet RJ45 interface, supporting POE function |
| PWR | 1x 2-pin Phoenix Connectors, for power supply |
| Buttons | 10x programmable buttons |
| Knob | 1x programmable knob |
| Mechanical | |
| Housing | Metal enclosure with aluminium alloy front panel |
| Color | Silver panel, black back shell |
| Dimensions | 116mm (W)x54mm (D)x116mm (H) |
| Weight | 450g |
| Installation | Type 120 Cassette Mounting |
| Power Supply | 24V DC/1A or POE |
| Power Consumption (Max) | 3.5W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Relative Humidity | 10~90% RH (non-condensing) |
Questions about this model
What job is 10 Keys Control Panel (Wall Plate) for?
10 Keys Control Panel (Wall Plate) is a MEGRA MATRIX control product. It is a panel or controller for operating AV gear in the room — it does not route HDMI video.
What are the key facts and limits of MCTL-WPC10?
MCTL-WPC10 is listed with: Android 9. Full connections are in the specification table on this page.
When should I choose a control panel instead of a matrix or extender?
Choose control when staff need a touch panel, key panel, or central controller to operate the room. These units send commands. They do not carry HDMI video. A matrix, switcher, splitter, extender, or AV over IP endpoint is the video path. A converter and a cable also do not replace a panel.
What should I send for a correct quote on MCTL-WPC10?
WhatsApp MEGRA with model MCTL-WPC10, the client name, and the location. Add room type and I/O or run length if you already know them.
Does MCTL-WPC10 route HDMI video?
No. MCTL-WPC10 is a wall control panel for room commands. Video still needs a matrix, switcher, or extender from this catalog.
