Universal Central Control System
MCTL-CTL801
Universal Central Control System (MCTL-CTL801) is a MEGRA MATRIX control product — a panel or controller for room operation, not a video router.
It is for rooms that need a touch panel, key panel, or central control next to the video rack.
Key facts from this model: Android 9.
- With 8 two-way serial ports to connect matrixes, projectors or other A/V devices
- With 8 IR outputs/one-way serial ports to connect DVD, TV sets, or other home appliances
- With 8 relay ports to control lights, doors or curtains
- With 8 digital inputs to receive sensor signals
- Capable of connecting with Ethernet-control devices for Ethernet monitoring and control
- IR learning
For quote: model + client name + location
Specifications
| Technical | |
| CPU | ARM Cortex-A53 1.8GHz |
| Operation System | Android 9 |
| RAM | 2GB DDR4 RAM |
| Flash Memory | 8GB EMMC Flash |

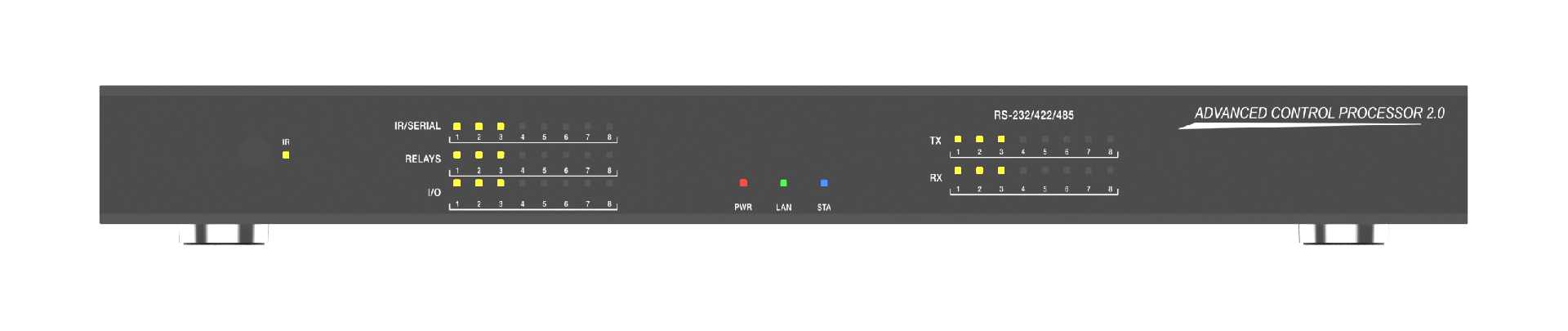

| LEDs | 1× IR Learning LED 1× Power LED 1× LAN LED 1× Status LED 8× TX LEDs 8× RX LEDs 8× IR/Serial LEDs 8× Relay LEDs 8× I/O LEDs |

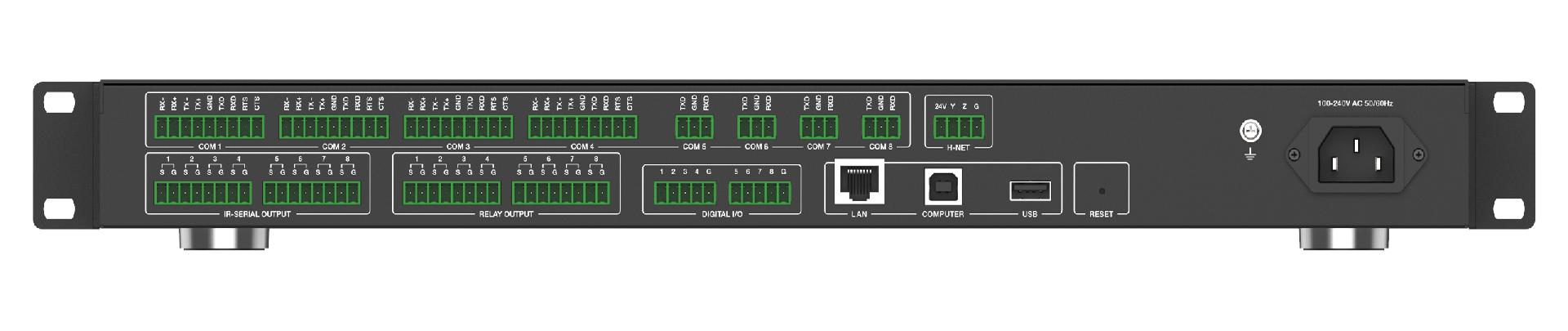

| Connections | |
| COM1/2/3/4 | 4× 9-pin Phoenix Connectors, for two-way RS-232/422/485 serial data communication |
| COM5/6/7/8 | 4× 3-pin Phoenix Connectors, for RS-232 serial data communication |
| IR-SERIAL OUTPUT | 2× 8-pin Phoenix Connectors, for IR transmitting or one way RS-232 serial data communication |
| RELAY OUTPUT | 2× 8-pin Phoenix Connectors, low-voltage relays, isolated, normally open, switching up to 30VDC, 2A / 125VAC, 1A |
| DIGITAL I/O | 2× 5-pin Phoenix Connectors, for digital signal inputting |
| LAN | A standard 10M/100M/1000M Ethernet RJ45 interface |
| USB | 1× USB TYPE A (function reserved) |
| COMPUTER | 1× USB TYPE B |
| H-NET | 1× 4-pin Phoenix Connectors, private bus interface (function reserved) |
| RESET | 1× RESET, for restoring factory default |
| IR | 1× IR learning Window |
| Mechanical | |
| Housing | Metal enclosure with aluminium alloy front panel |
| Color | Black |
| Dimensions | 440mm (W)×200mm (D)×44mm (H) |
| Weight | 2.1kg |
| Installation | Standard 19-inch cabinet (with mounting ears) or flat installation |
| Power Supply | AC110~220V 50/60Hz |
| Power Consumption (Max) | 55W (48W for external power supplies connected via the H-NET port.) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Relative Humidity | 10~90% RH (non-condensing) |
Questions about this model
What job is Universal Central Control System for?
Universal Central Control System is a MEGRA MATRIX control product. It is a panel or controller for operating AV gear in the room — it does not route HDMI video.
What are the key facts and limits of MCTL-CTL801?
MCTL-CTL801 is listed with: Android 9. Full connections are in the specification table on this page.
When should I choose a control panel instead of a matrix or extender?
Choose control when staff need a touch panel, key panel, or central controller to operate the room. These units send commands. They do not carry HDMI video. A matrix, switcher, splitter, extender, or AV over IP endpoint is the video path. A converter and a cable also do not replace a panel.
What should I send for a correct quote on MCTL-CTL801?
WhatsApp MEGRA with model MCTL-CTL801, the client name, and the location. Add room type and I/O or run length if you already know them.
Does MCTL-CTL801 route HDMI video?
No. MCTL-CTL801 is a control unit for room commands. Video still needs a matrix, switcher, or extender from this catalog.
