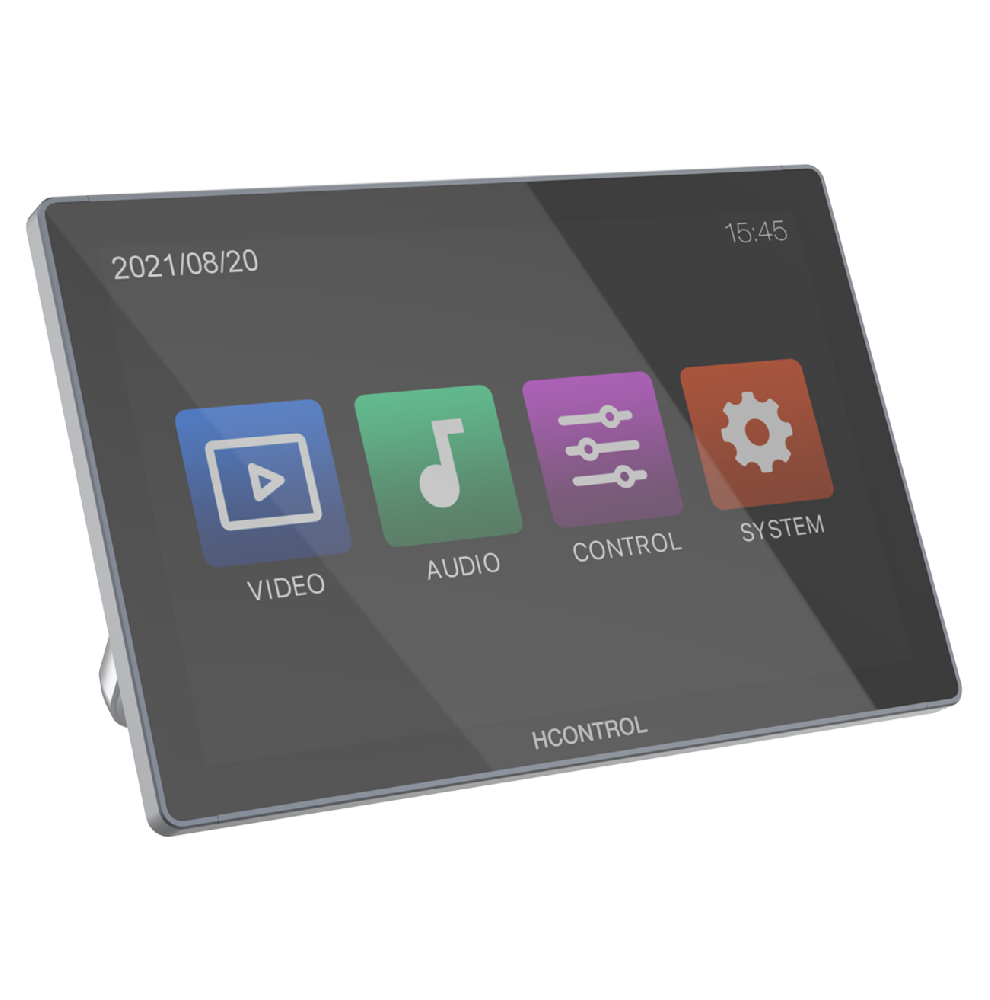

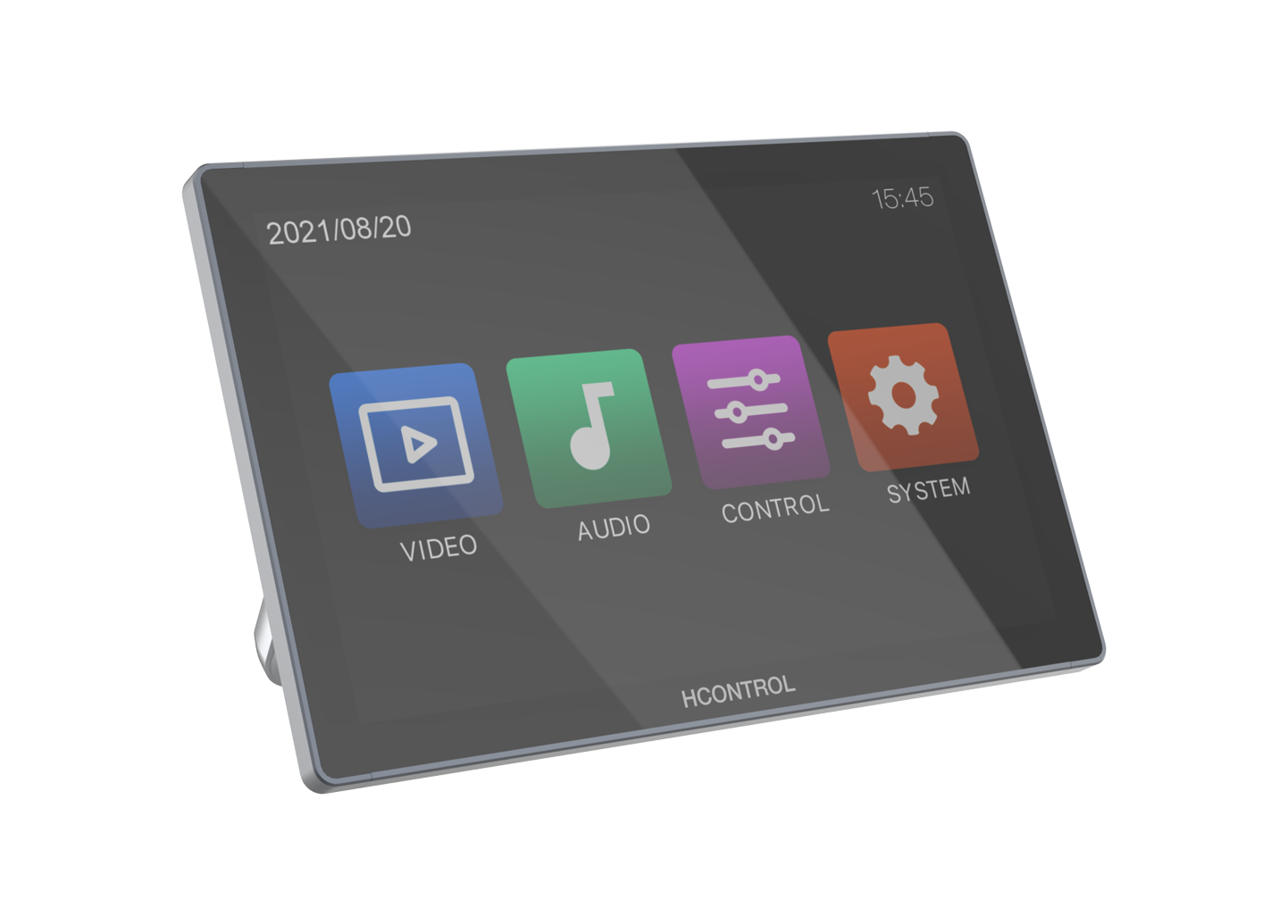

10 inch Touch Control Panel (Desktop)
MCTL-TS10D
10 inch Touch Control Panel (Desktop) (MCTL-TS10D) is a MEGRA MATRIX control product — a panel or controller for room operation, not a video router.
It is for rooms that need a touch panel, key panel, or central control next to the video rack.
Key facts from this model: 1280x800; Capacitive Touch Screen; Android 9.
- I/O: Control
For quote: model + client name + location
Specifications
| Technical | |
| CPU | ARM Cortex-A53 1.8GHz |
| Operation System | Android 9 |
| RAM | 2GB DDR4 RAM |
| Flash Memory | 8GB EMMC Flash |
| Resolution | 1280x800 |
| Touch Type | Capacitive Touch Screen |
| Connections | |
| RS-485 | 1x 3-pin Phoenix Connectors, for RS-485 serial data communication |
| LAN/POE | 1x standard 10M/100M/1000M Ethernet RJ45 interface, supporting POE function |
| POWER | 1x 2-pin Phoenix Connectors, for power supply |
| DEBUG | 1x Micro USB, system debugging port |
| Mechanical | |
| Housing | Front Panel — Touch Screen; Rear Case — Aluminum Alloys |
| Color | Front Panel — Black; Rear Case — Apple Gray |
| Dimensions | 245.4mm (L) x164mm (W)x27mm (D) |
| Weight | 887g |
| Power Supply | 24V DC/1A or POE |
| Power Consumption (Max) | 6W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Relative Humidity | 10~90% RH (non-condensing) |
Questions about this model
What job is 10 inch Touch Control Panel (Desktop) for?
10 inch Touch Control Panel (Desktop) is a MEGRA MATRIX control product. It is a panel or controller for operating AV gear in the room — it does not route HDMI video.
What are the key facts and limits of MCTL-TS10D?
MCTL-TS10D is listed with: 1280x800; Capacitive Touch Screen; Android 9. Full connections are in the specification table on this page.
When should I choose a control panel instead of a matrix or extender?

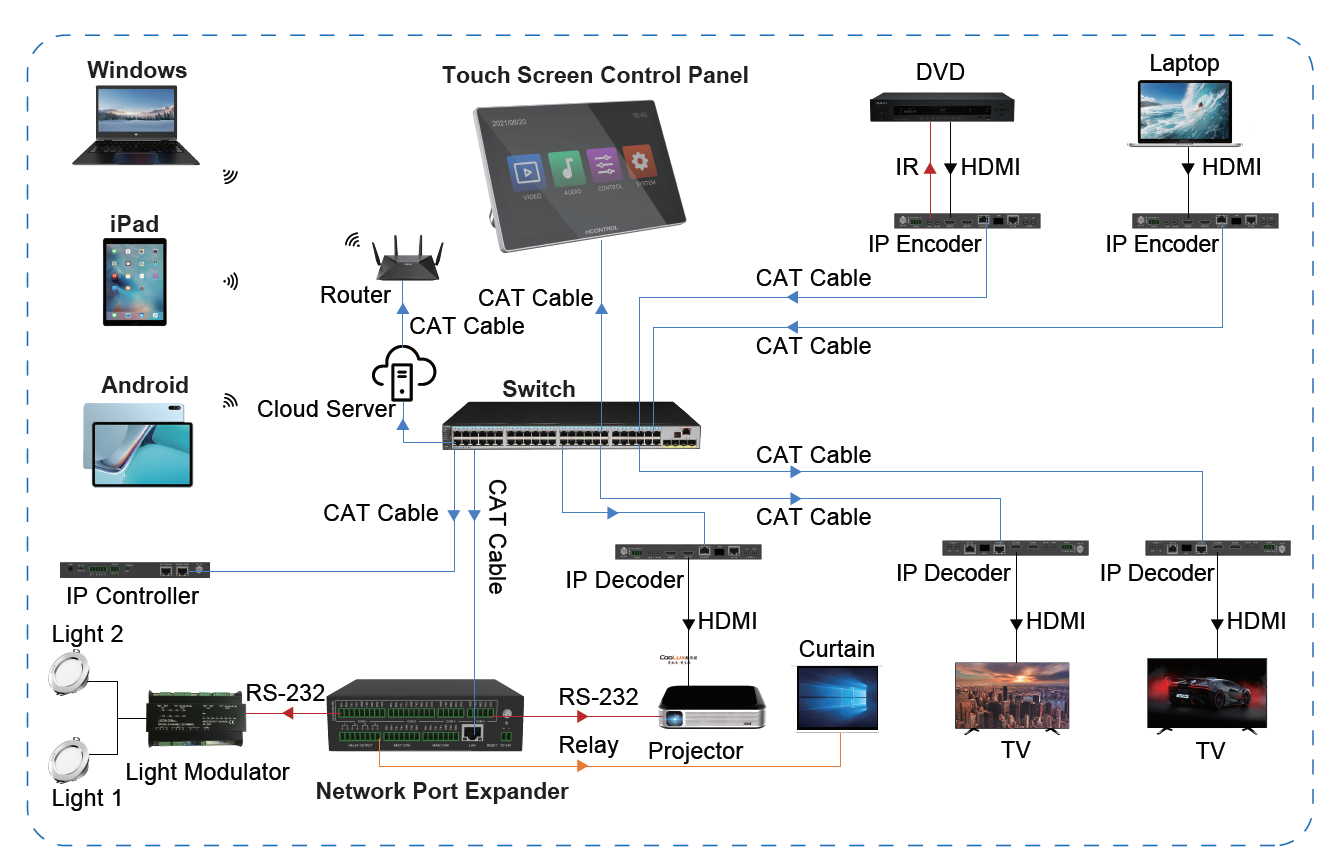

Choose control when staff need a touch panel, key panel, or central controller to operate the room. These units send commands. They do not carry HDMI video. A matrix, switcher, splitter, extender, or AV over IP endpoint is the video path. A converter and a cable also do not replace a panel.
What should I send for a correct quote on MCTL-TS10D?
WhatsApp MEGRA with model MCTL-TS10D, the client name, and the location. Add room type and I/O or run length if you already know them.
Does MCTL-TS10D route HDMI video?
No. MCTL-TS10D is a desktop touch panel for room commands. Screen resolution listed: 1280x800. Video still needs a matrix, switcher, or extender from this catalog.
