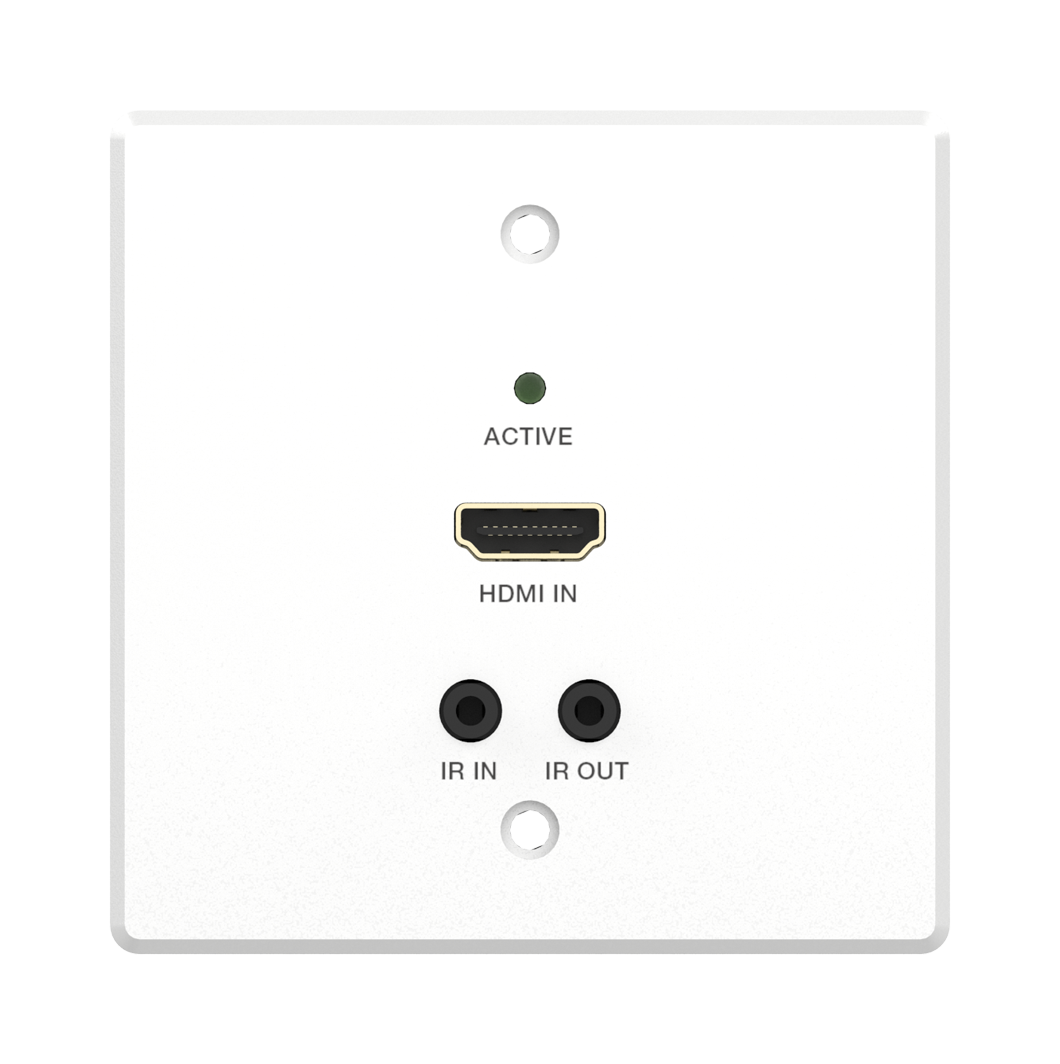

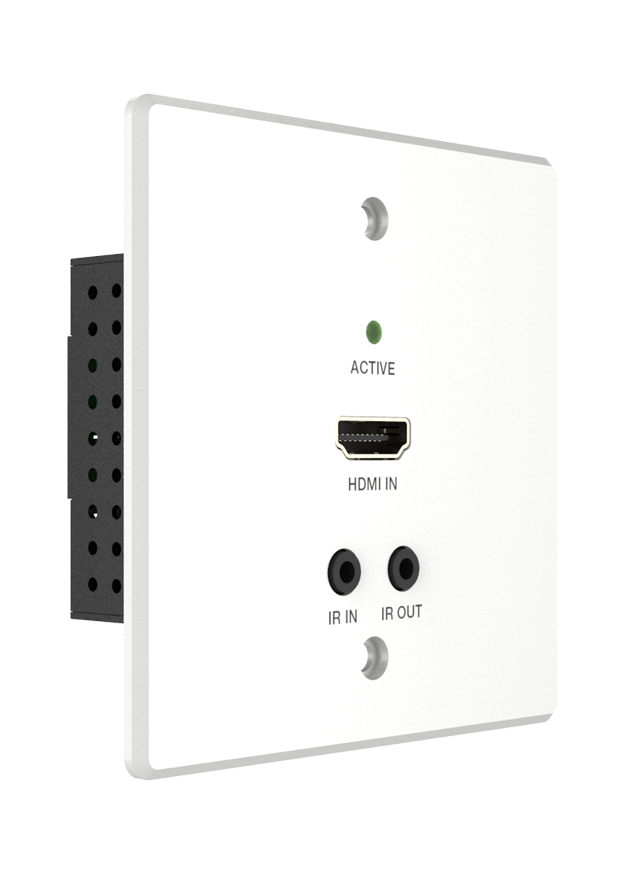

4K60 HDBaseT Wall Plate (70m/EU-1GANG)
MEPX-WPB70HEU
4K60 HDBaseT Wall Plate (70m/EU-1GANG) (MEPX-WPB70HEU) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b.
- HDMI 2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Video resolution up to 4K@60Hz 4:4:4
- HDBaseT 1.0 VS010 transmitter
- HDBaseT output can extend signal transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K@60Hz via a single CAT6/6A cable
- HDMI Audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Video Compression Standard | HDBT |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| IR Level | 5Vp-p |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | Max distance (1080p):230ft / 70m over CAT6/6A Max distance (4K@60):131ft / 40m over CAT6/6A |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

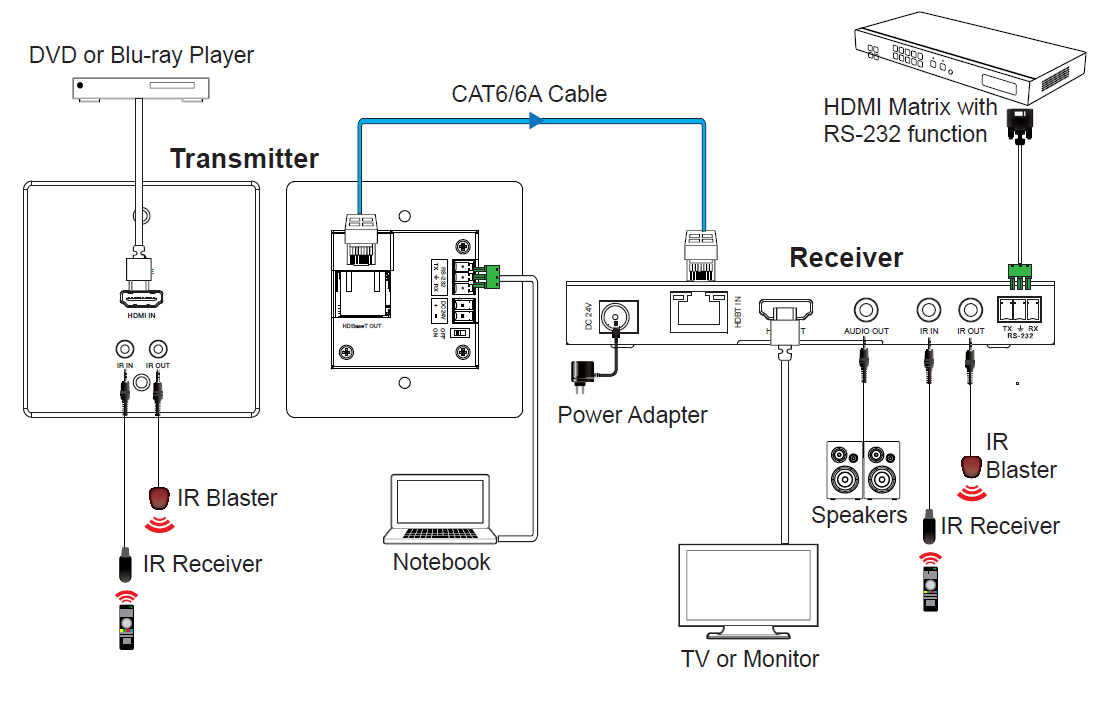

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] Output: 1x HDBaseT Out [RJ45, 8-pin female] Control: 1x RS-232 [Phoenix jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x SERVICE [Micro-USB jack] |
| Receiver | Input: 1x HDBT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] |
| Mechanical | |
| Housing | Aluminium Enclosure — Front Panel Metal Enclosure — Rear Case |
| Color | White — Front Panel Black — Rear Case |
| Dimensions | Wall plate: 80mm [W] x 80mm [D] x 38mm [H] Receiver: 140mm [W] x 65mm [D] x 18mm [H] |
| Weight | Wall plate: 157g, Receiver: 249g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | Wall plate: 3.36W, Receiver: 5.6W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDBaseT Wall Plate (70m/EU-1GANG) for?
4K60 HDBaseT Wall Plate (70m/EU-1GANG) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-WPB70HEU?
MEPX-WPB70HEU is listed with: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b. Full connections are in the specification table on this page.
When do I choose this wall-plate extender instead of a box extender or a long HDMI cable?
MEPX-WPB70HEU is a wall-plate extender kit. Use a box pair when the TX/RX sit in a rack. A long HDMI cable is only for a short local run.
What should I send for a correct quote on MEPX-WPB70HEU?
WhatsApp MEGRA with model MEPX-WPB70HEU, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-WPB70HEU?
This extender is listed at 70m on wall plate. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
