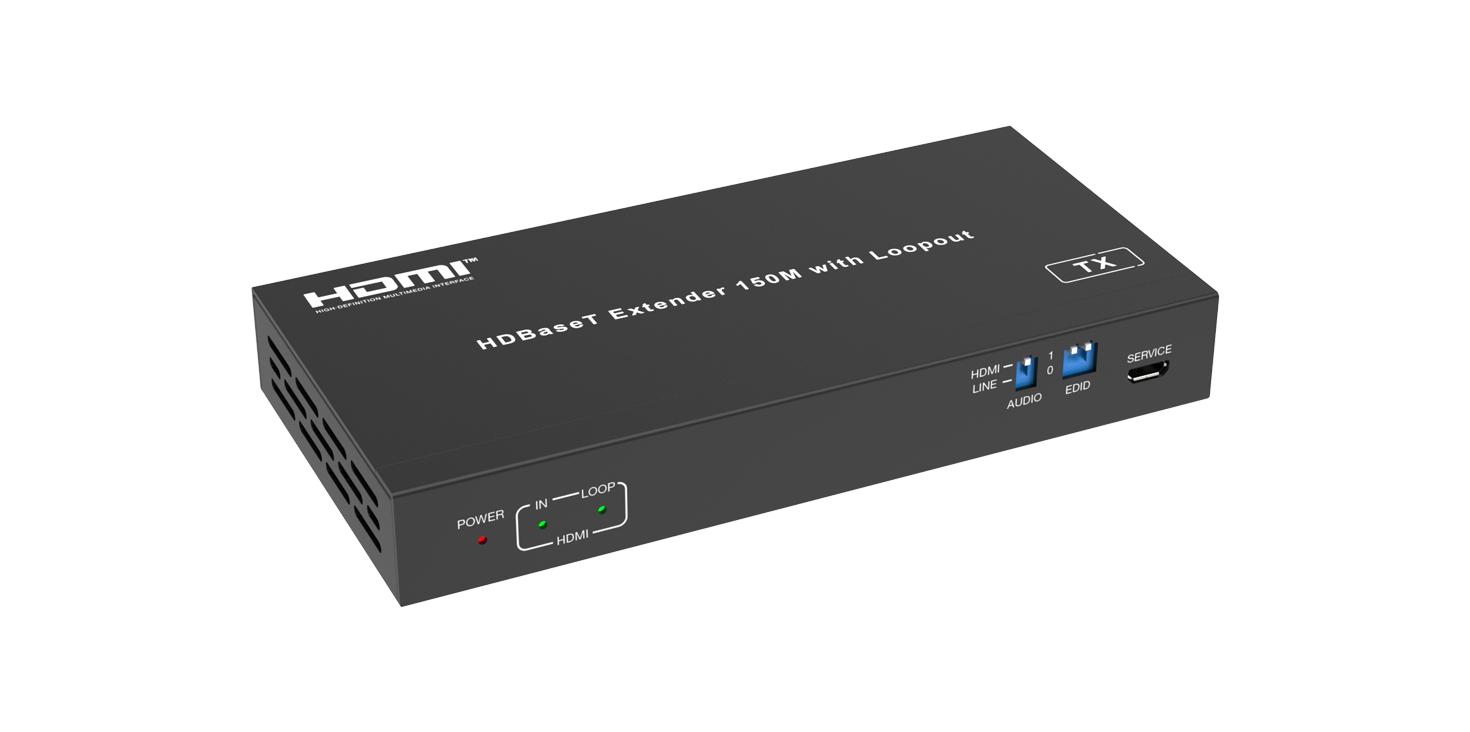

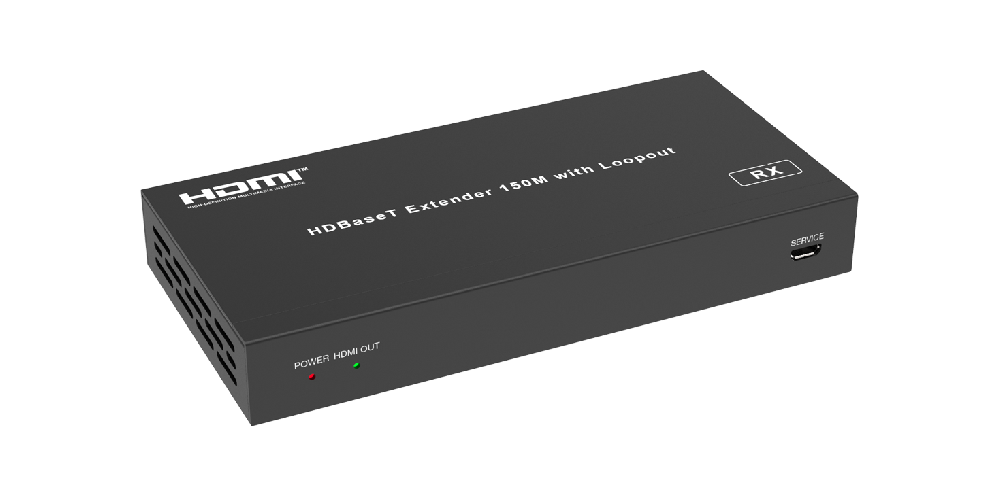

HDBaseT Extender (150m)
MEPX-E150CLA
HDBaseT Extender (150m) (MEPX-E150CLA) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 150m; 150m class; HDMI 1.3; 480i ~1080p50/60Hz; Up to1200P@60Hz.
- HDMI 1.3 and HDCP 1.4 compliant
- Video resolution is up to 1080P@60Hz
- The transmission distance via a single CAT 5e/6 cable is up to 150m/492ft
- Support bi-directional IR control, RS-232 control and EDID mangement
- Support audio embedment and dis-embedment
- Support bi-directional PoC (Power over Cable) function
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 6.75Gbps |
| Video Resolution | 480i ~1080p50/60Hz; Up to1200P@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 |
| Color Depth | 8-bit (1080P60Hz) |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| ESD Protection | 150m/492ft at 1080P@60 |
| Connections | |

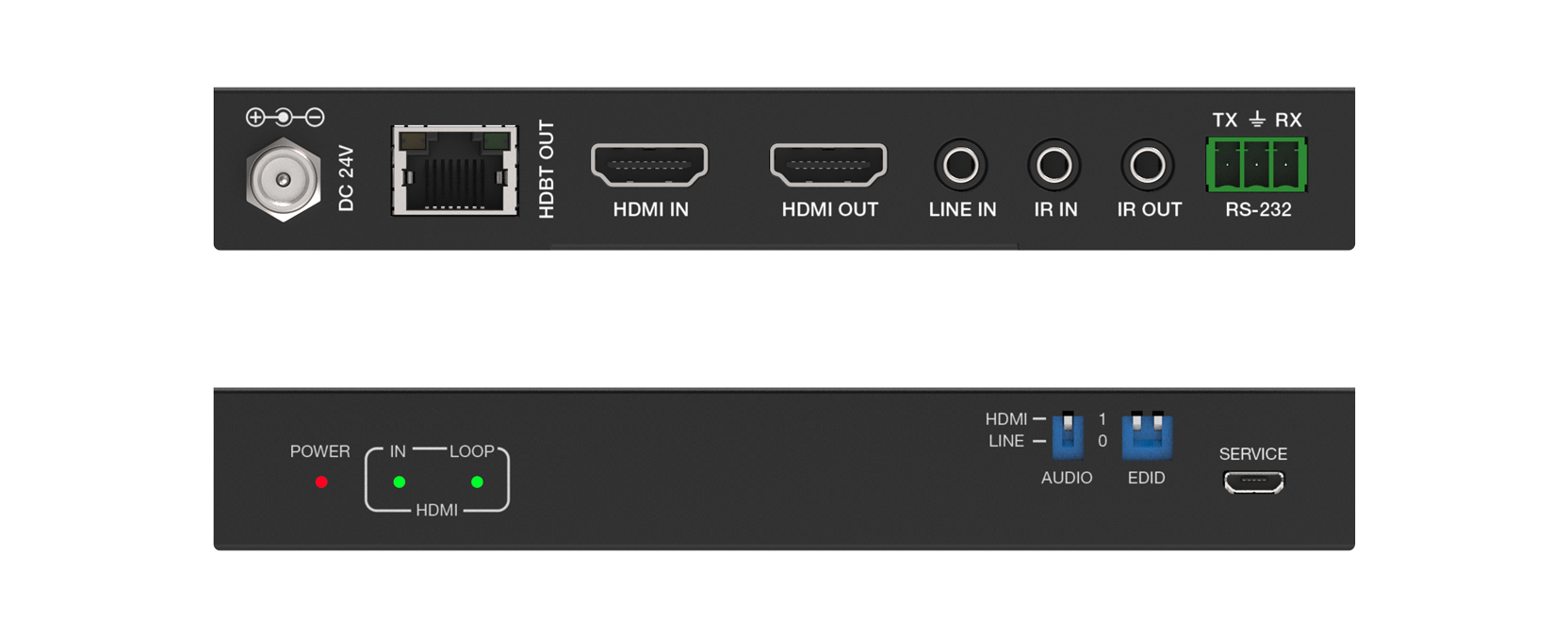

| Transmitter | Input: 1x HDMI IN [TypeA 19-pin female] 1x LINE IN [3.5mm Stereo Mini-jack] Output: 1x HDBT OUT [RJ45 8-pin female] 1x HDMI OUT [TypeA 19-pin female] Control: 1x AUDIO DIP Switch [1 pin] 1x EDID DIP Switch [2-pin] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x Service [Micro-USB jack] |

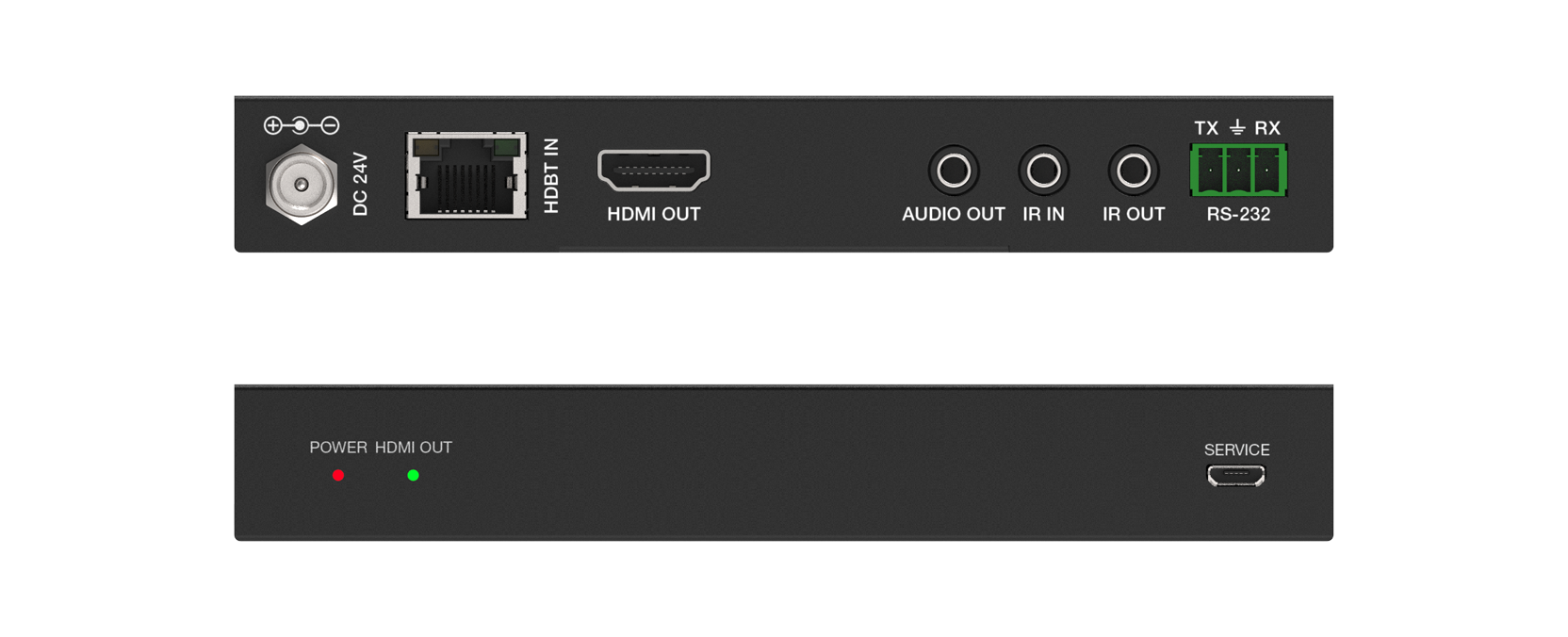

| Receiver | Input: 1x HDBT IN [RJ45 8-pin female] Output: 1x HDMI OUT [TypeA 19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x RS-232 [Phoenix jack] 1x SERVICE [Micro-USB jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | TX/ RX:146.7mm[W]×71.5mm[D]×21mm[H] |
| Weight | Transmitter: 287g, Receiver: 294g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 24V/1A (Locking connector) |
| Power Consumption (Max) | 8.4W (max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is HDBaseT Extender (150m) for?
HDBaseT Extender (150m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-E150CLA?
MEPX-E150CLA is listed with: TX + RX · 150m; 150m class; HDMI 1.3; 480i ~1080p50/60Hz; Up to1200P@60Hz. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-E150CLA?
WhatsApp MEGRA with model MEPX-E150CLA, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-E150CLA?
This extender is listed at 150m on HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
