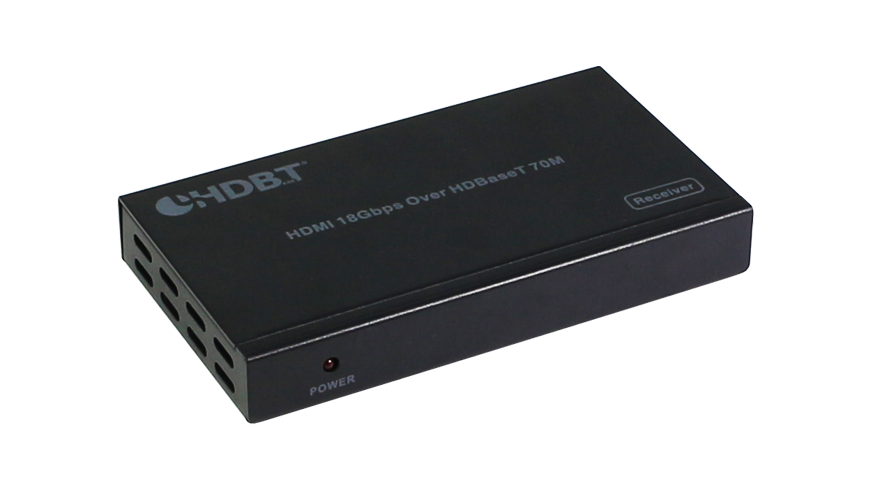

4K60 HDBaseT Extender (70m)
MEPX-B70S
4K60 HDBaseT Extender (70m) (MEPX-B70S) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 4K60; 70m class.
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- 10bits HDR (High Dynamic Range) pass through
- Supports HDMI High Bit Rate(HBR) audio pass through
- Supports CEC bypass
- Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
For quote: model + client name + location
Specifications
| Technical | |
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/6.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital +, Dolby TrueHD, DTS HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | PCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| ESD Protection | Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) |

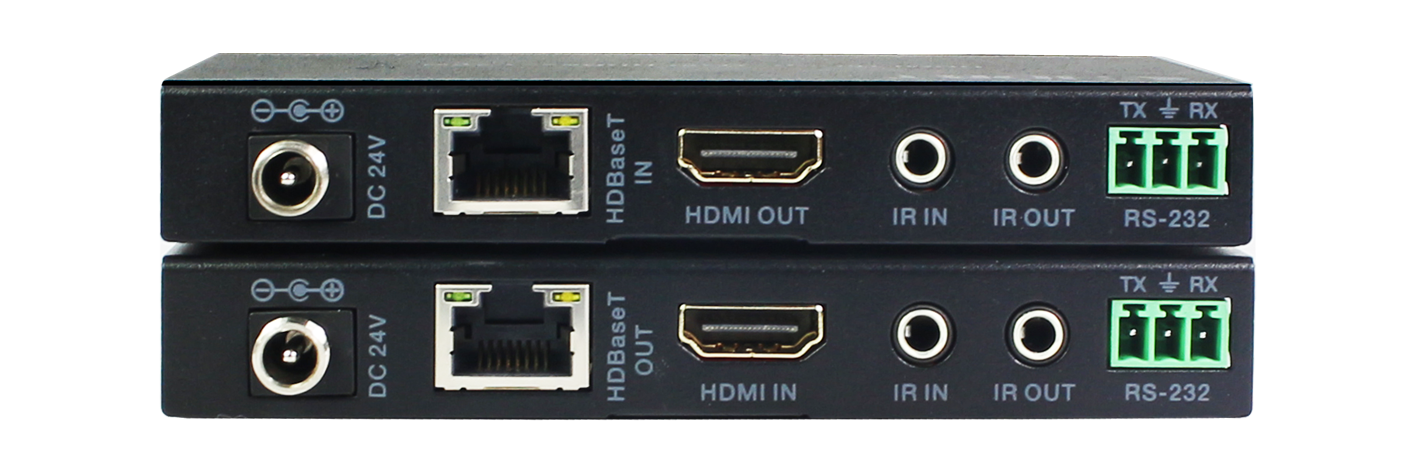

| Connections | |

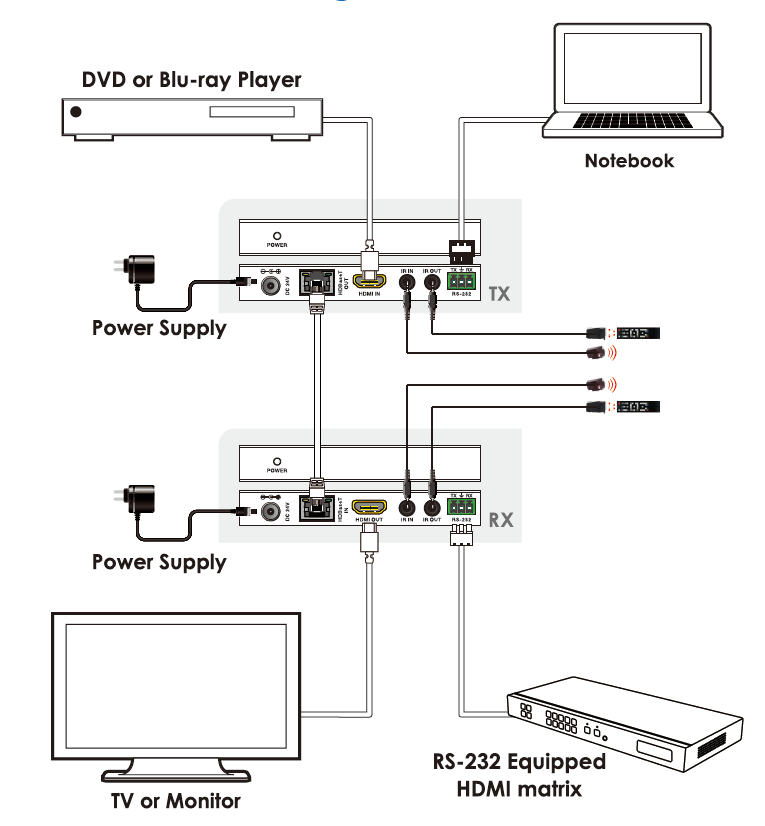

| Input | Transmitter: 1x HDMI IN [TypeA 19-pin female] 1x IR INPUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] Receiver: 1x HDBT IN [RJ45 8-pin female] 1x IR IN [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] |
| Output | Transmitter: 1x HDBT OUT [RJ45 8-pin female] 1x IR OUTPUT [3.5mm Stereo Mini-jack] Receiver: 1x HDMI OUT [TypeA 19-pin female] 1x IR OUTPUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 115mm [W] x 65mm [D] x 17mm [H] |
| Weight | 405g |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 24W(Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDBaseT Extender (70m) for?
4K60 HDBaseT Extender (70m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-B70S?
MEPX-B70S is listed with: TX + RX · 70m; 4K60; 70m class. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-B70S?
WhatsApp MEGRA with model MEPX-B70S, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-B70S?
This extender is listed at 70m on HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
