HDMI IP Extender (150m/HDMI Loopout)
MEPX-E5200

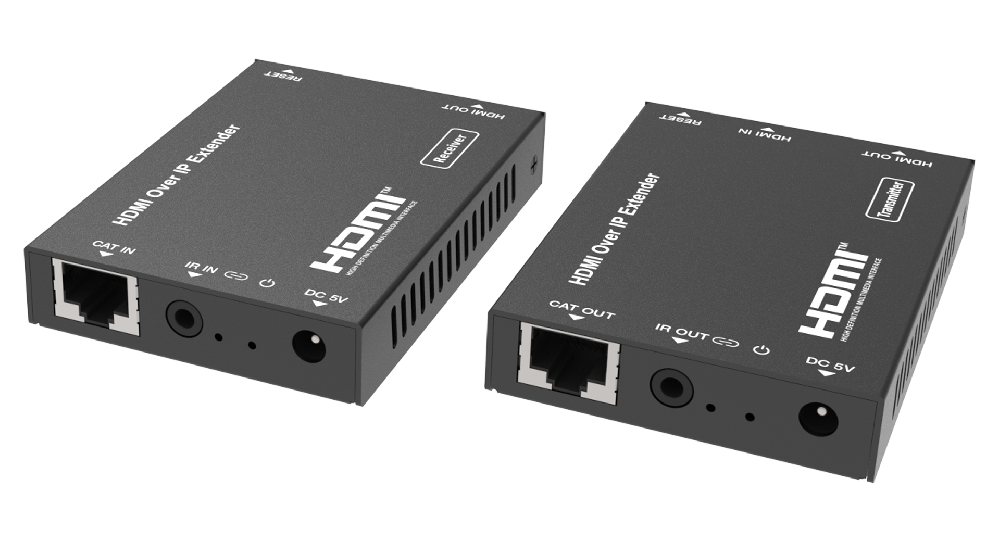

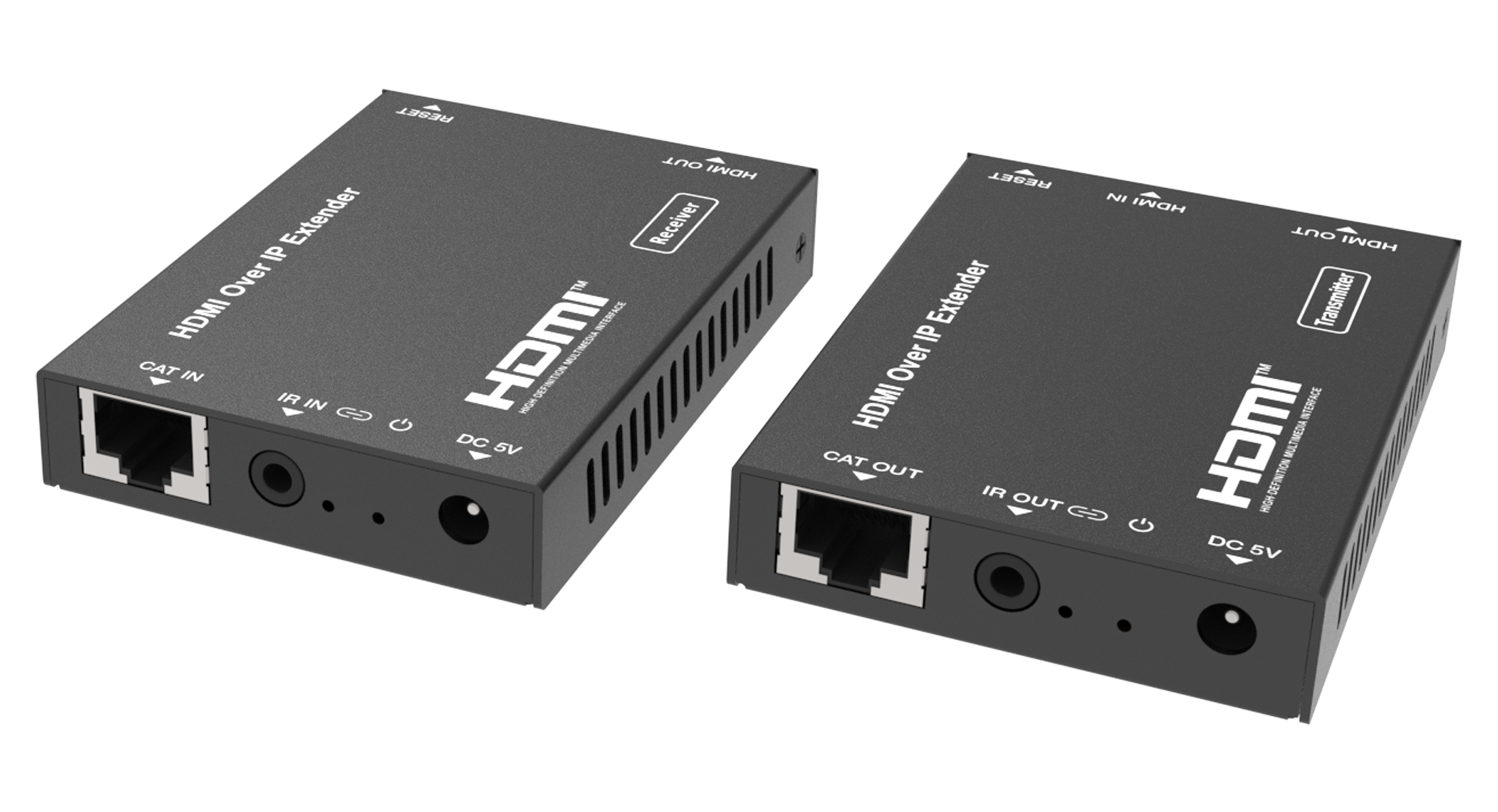

HDMI IP Extender (150m/HDMI Loopout) (MEPX-E5200) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 150m; 150m class; HDMI 1.3; 640x480@60Hz-1920x1200@60Hz.
- HDMI 1.3 and HDCP 1.4 compliant
- Support 6.75Gbps video bandwidth
- Video resolution is up to 1920×1200@60Hz
- Extend distance up to 492ft / 150m between encoder and decoder via a single CAT5e/6 cable
- Adopt standard H.265 encoding / decoding

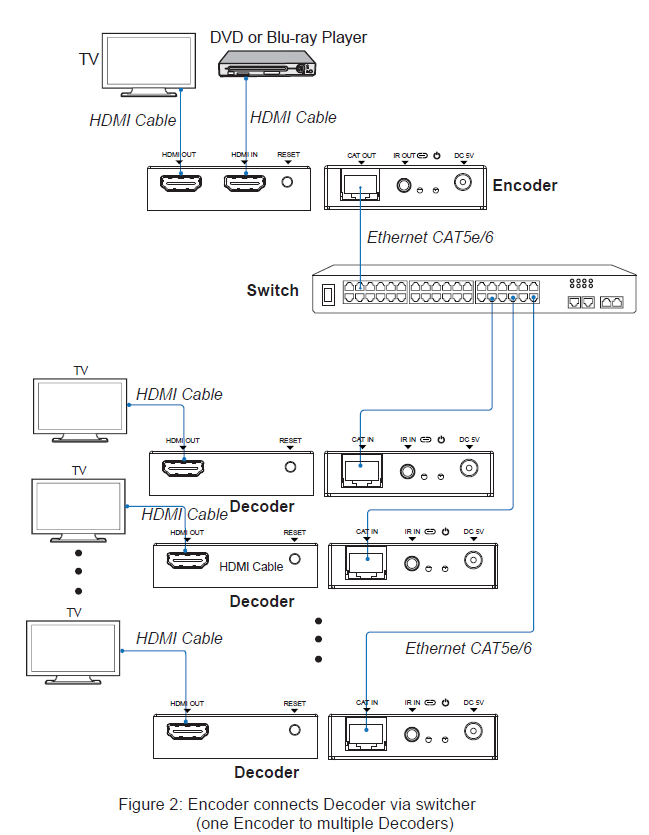

- Support standard IP swticher / router / hub
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| USB Version | HDCP 1.4 |
| Video Bandwidth | 6.75Gbps |
| Video Resolution | 640x480@60Hz-1920x1200@60Hz |
| HDMI Audio Formats | LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz |
| IR Frequency | 20Hz - 60KHz |
| Compression Technology | H.265 |
| Request for Switcher /Router | Support IGMP, Support DHCP |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

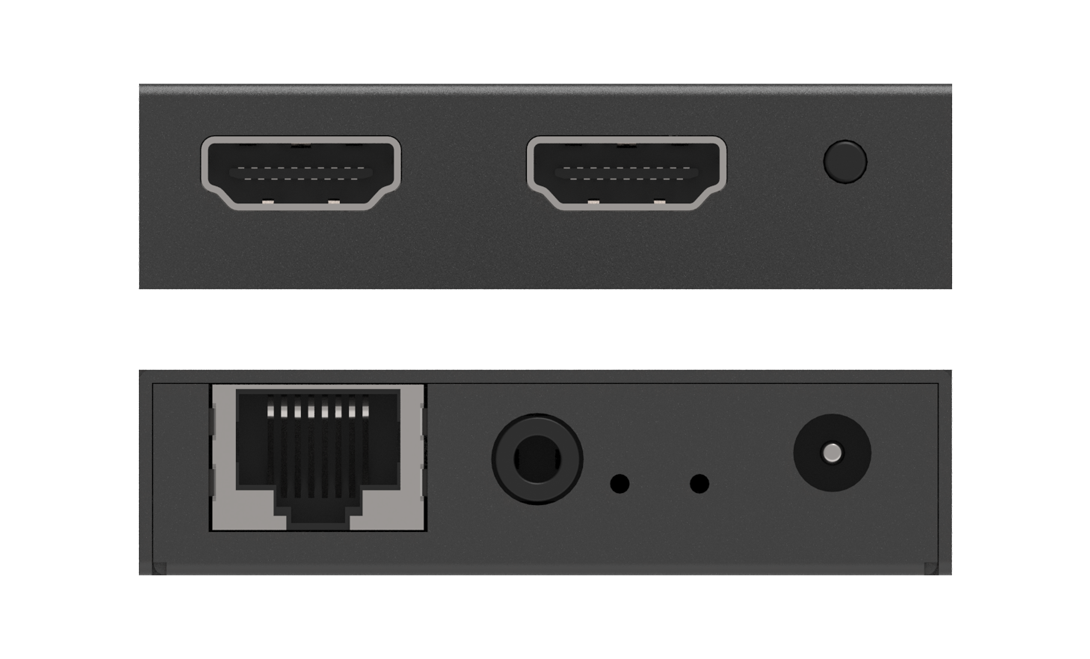

| Encoder | Input: 1x HDMI IN [Type A 19-pin female] Output: 1x HDMI OUT [Type A 19-pin female] 1x CAT OUT [RJ45 connector] Control:1x IR OUT [3.5mm Stereo Mini-jack] |
| Decoder | Input: 1x CAT IN [RJ45 connector] Output: 1x HDMI OUT [Type A 19-pin female] Control:1x IR IN [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 88mm (W) x 61.2mm (D) x 16.5mm (H) |
| Weight | Encoder: 158g, Decoder: 155g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Encoder: 2.55W, Decoder: 3.7W |
| Operation Temperature | 14°F - 122°F / -10°C - 50°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Resolution / Distance | 1920x1200@60Hz - Feet / Meter |
| CAT 5e/6 cable | 492ft / 150 meters |
| Resolution / Cable length | 1920x1200@60Hz - Feet / Meter |
| HDMI IN / OUT | 50ft / 15 meters |
Questions about this model
What job is HDMI IP Extender (150m/HDMI Loopout) for?
HDMI IP Extender (150m/HDMI Loopout) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-E5200?
MEPX-E5200 is listed with: TX + RX · 150m; 150m class; HDMI 1.3; 640x480@60Hz-1920x1200@60Hz. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-E5200?
WhatsApp MEGRA with model MEPX-E5200, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-E5200?
This extender is listed at 150m on IP. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
