4K60 HDBaseT Wall Plate (70m/CN-UK-1GANG)
MEPX-WPB70HCN

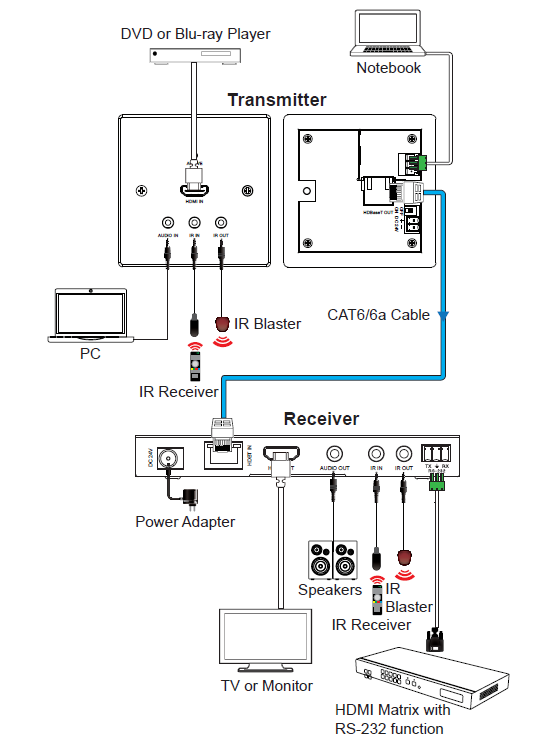

4K60 HDBaseT Wall Plate (70m/CN-UK-1GANG) (MEPX-WPB70HCN) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b.
- HDMI 2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K@60Hz 4:4:4
- Transmission distance can be extended up to 230ft / 70m for 1080P signal or 131ft / 40m for 4K signal via a single CAT6/6a cable
- Transmitter supports audio embedding, Reciver supports audio de-embedding
- Support two-way IR and RS-232 control
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Video Compression Standard | HDBT |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Audio Formats | HDMI: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Analog: PCM 2.0 |
| Transmission Distance | 1080P--70m, 4K --40m (CAT6/6a) |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

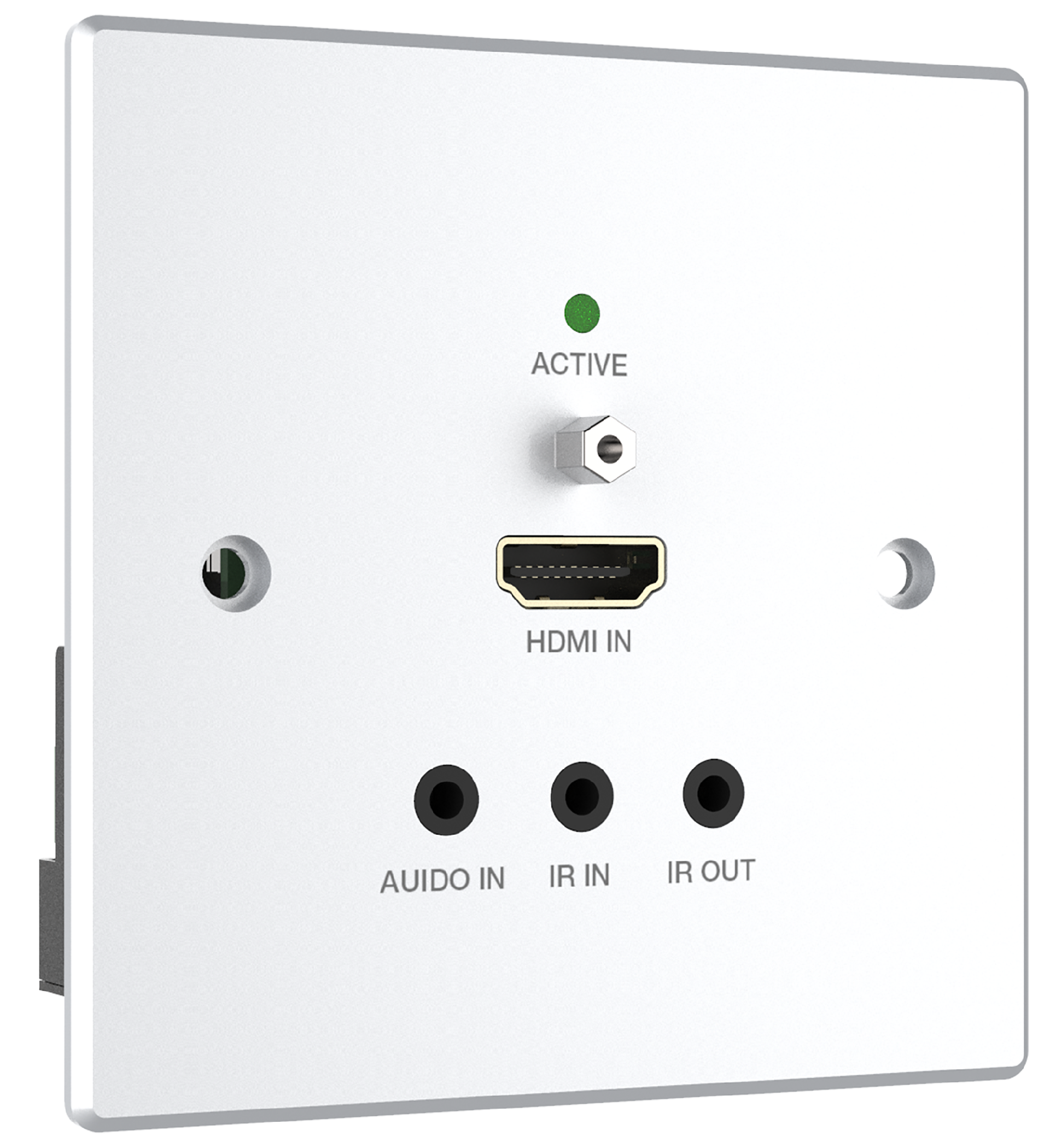

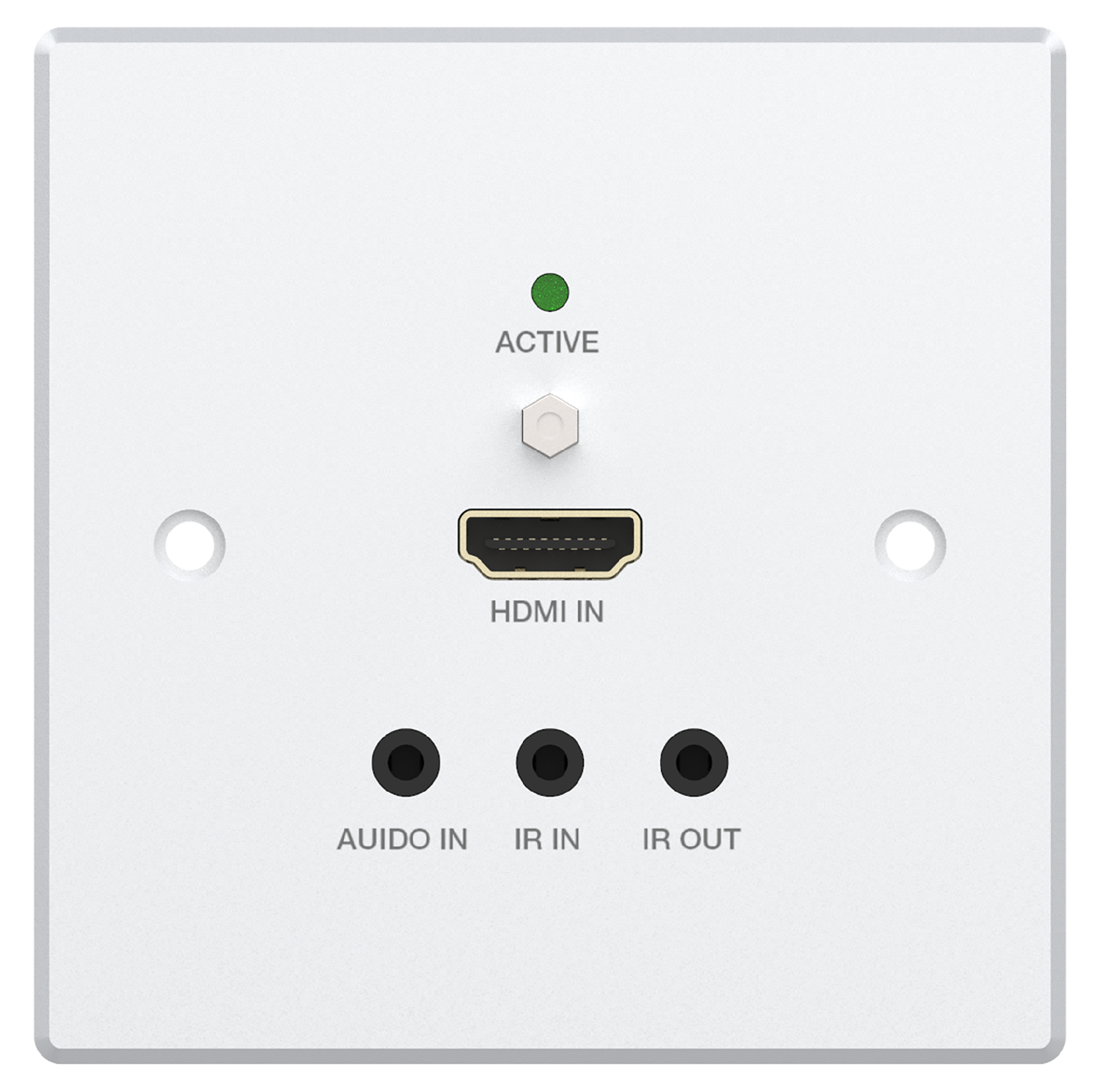

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] 1x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1x HDBaseT OUT [RJ45] Control: 1x RS-232 [Phoenix jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x SERVICE [Micro-USB jack] |
| Mechanical | |
| Housing | Aluminium Enclosure — Front Panel Metal Enclosure — Rear Panel |
| Color | White — Front Panel Black — Rear Panel |
| Dimensions | 86mm[W] x 86mm[D] x 38mm[H] |
| Weight | 185g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 9W (POC) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDBaseT Wall Plate (70m/CN-UK-1GANG) for?
4K60 HDBaseT Wall Plate (70m/CN-UK-1GANG) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-WPB70HCN?
MEPX-WPB70HCN is listed with: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b. Full connections are in the specification table on this page.
When do I choose this wall-plate extender instead of a box extender or a long HDMI cable?
MEPX-WPB70HCN is a wall-plate extender kit. Use a box pair when the TX/RX sit in a rack. A long HDMI cable is only for a short local run.
What should I send for a correct quote on MEPX-WPB70HCN?
WhatsApp MEGRA with model MEPX-WPB70HCN, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-WPB70HCN?
This extender is listed at 70m on wall plate. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
