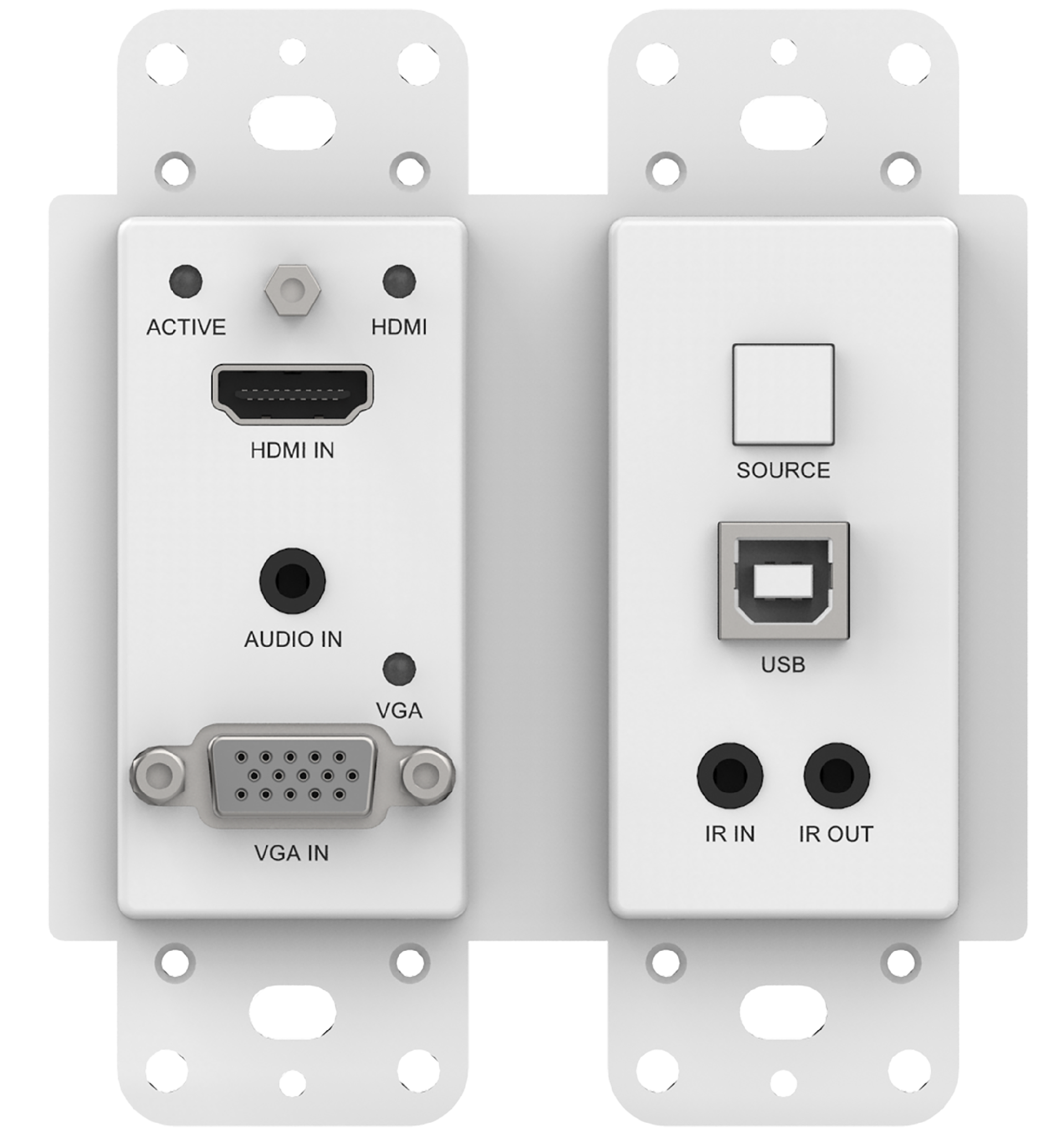

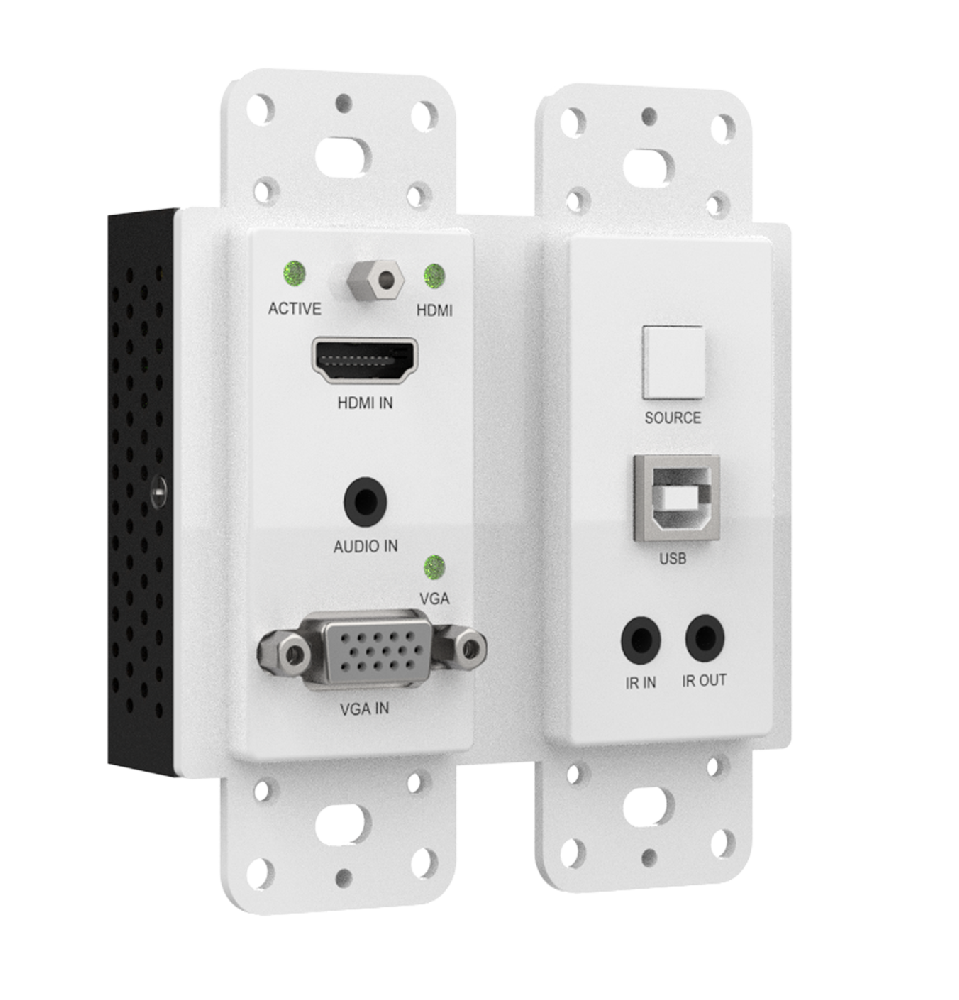

4K60 HDBaseT Wall Plate (100m/US-2GANG)
MEPX-WPB2010T
4K60 HDBaseT Wall Plate (100m/US-2GANG) (MEPX-WPB2010T) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 100m; 4K60; 100m class; HDMI 2.0b.
- HDMI 2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Support HDMI video resolution up to 4K2K@60Hz (4:4:4), VGA video resolution up to 1920x1200@60Hz
- Up to 7.1 channels HD audio
- Transmission distance can be extended up to 328ft/100m for 4K2K@60Hz (4:4:4) signal via a single CAT6/6a/7 cable
- Automatic and manual switching modes
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@50/60Hz 4:4:4 |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | 328ft / 100m over CAT6/6a/7 |
| VGA Video Resolution | Up to 1920x1200@60Hz |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x VGA [15-pin female] 1x USB [USB-B, 4-pin female] 1x IR IN [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1×AUDIO IN [3.5mm Stereo Mini-jack] Outputs:1x HDBaseT Out [RJ45] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | White |
| Dimensions | 91.8mm [W] x 104.8mm [D] x 43mm [H] |
| Weight | 212.5g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 6W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDBaseT Wall Plate (100m/US-2GANG) for?
4K60 HDBaseT Wall Plate (100m/US-2GANG) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-WPB2010T?
MEPX-WPB2010T is listed with: TX + RX · 100m; 4K60; 100m class; HDMI 2.0b. Full connections are in the specification table on this page.
When do I choose this wall-plate extender instead of a box extender or a long HDMI cable?
MEPX-WPB2010T is a wall-plate extender kit. Use a box pair when the TX/RX sit in a rack. A long HDMI cable is only for a short local run.
What should I send for a correct quote on MEPX-WPB2010T?
WhatsApp MEGRA with model MEPX-WPB2010T, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-WPB2010T?
This extender is listed at 100m on wall plate. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
