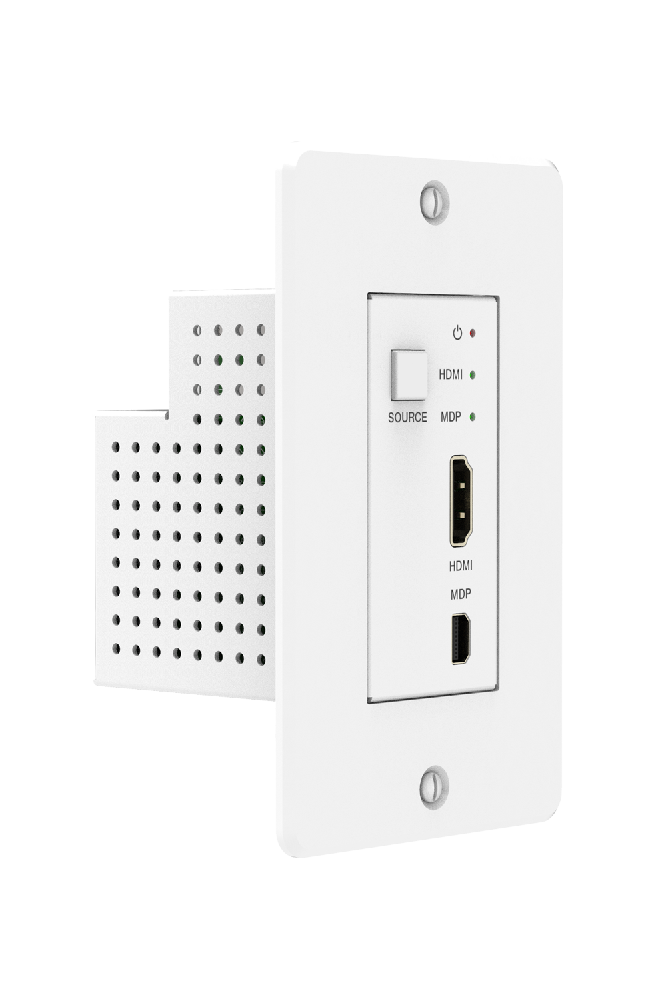

4K60 CAT Wall Plate (50m/DP/HDMI/US-1GANG)
MEPX-WP50HDW
4K60 CAT Wall Plate (50m/DP/HDMI/US-1GANG) (MEPX-WP50HDW) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 50m; 4K60; 50m class; HDMI 2.0b.
- Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
- Support 18Gbps video bandwidth
- Video resolution up to 4K/UHD@60Hz 4:4:4
- CAT6 output can extend video transmission distance up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444 via a single CAT5e/6 cable
- Support 3D and HDR format video, does not support CEC control
- HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | Display Port 1.2a |
| Video Bandwidth | DP: 5.4 Gbps |
| HDMI: 18 Gbps | |
| Video Resolution | 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz) |
| HDR | Support |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | Max distance (4K@24) : 164ft / 50m over CAT5e/6 Max distance (4K@60) : 115ft / 35m over CAT5e/6 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

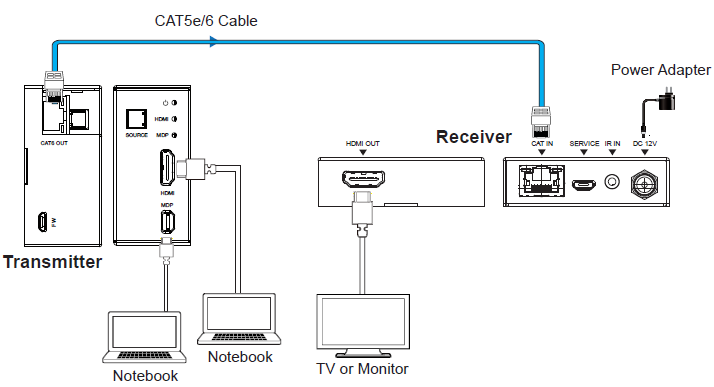

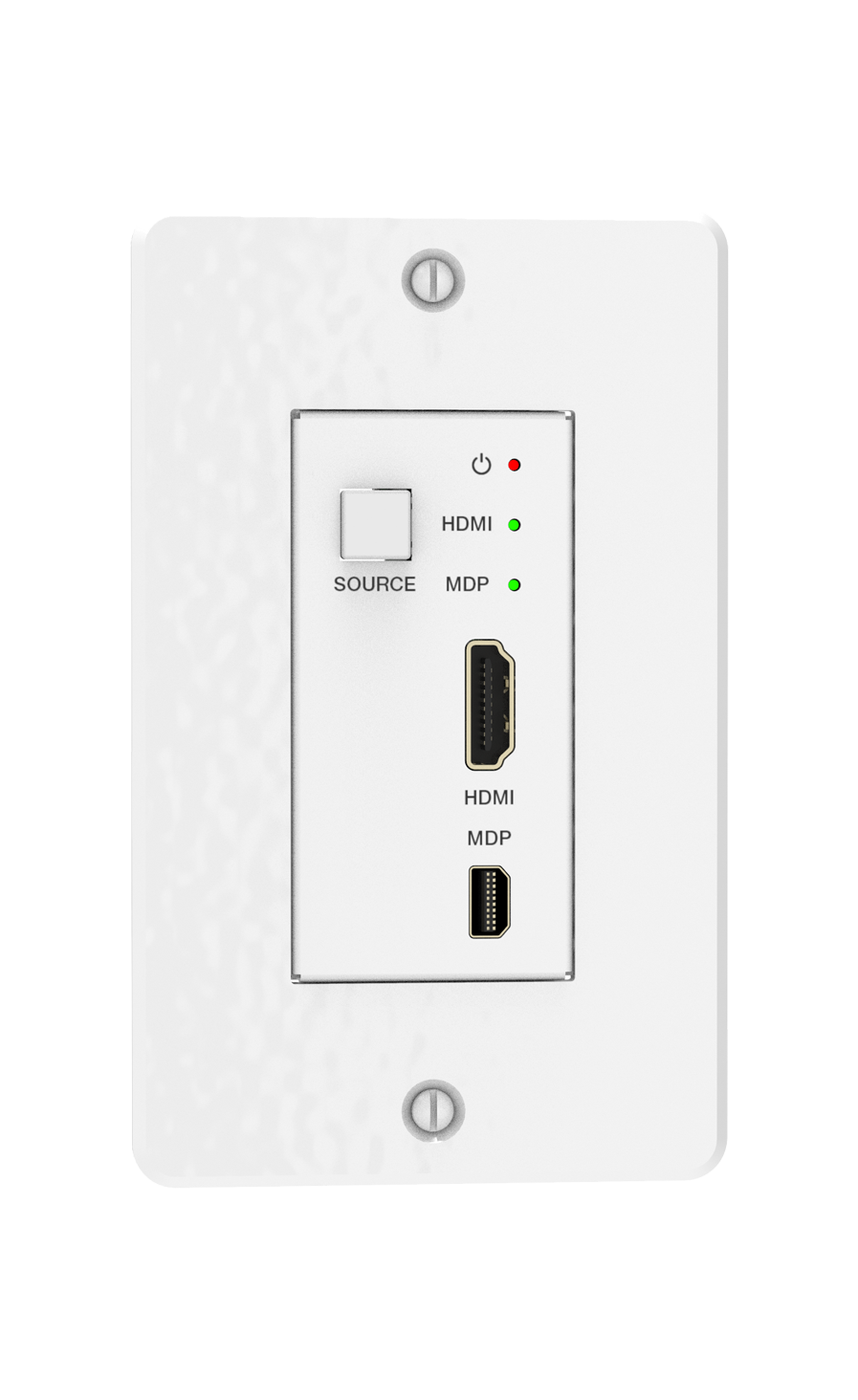

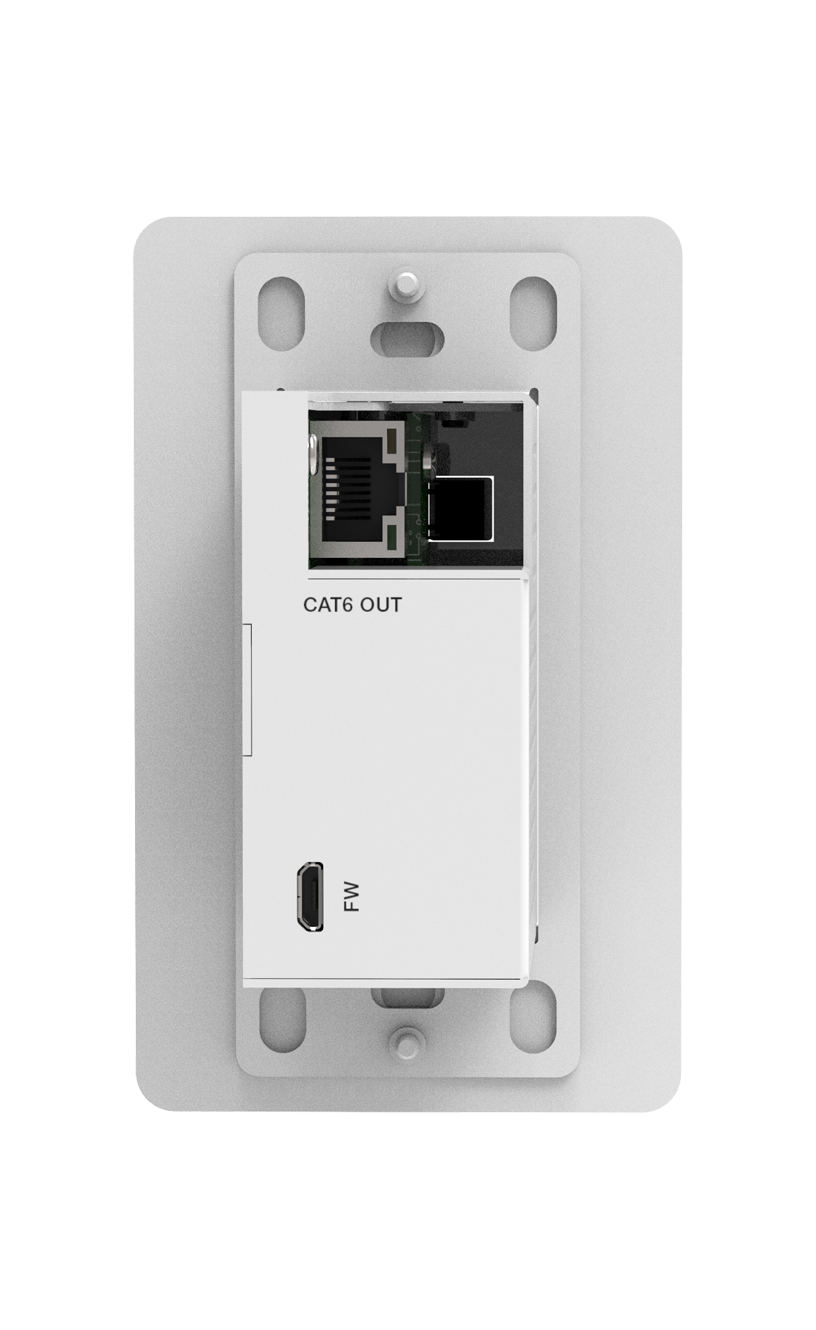

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x miniDP [20-pin female] Output: 1x CAT6 OUT [RJ45, 8-pin female] Control: 1x FW [Micro USB, Update port] |
| Receiver | Input: 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female] Controls: 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White / Black |
| Dimensions | Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 88mm [W] × 61mm [D] × 18mm [H] |
| Weight | Wall plate: 175g, Receiver: 155g |
| Power Supply | POC (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 2.2W (Max), Receiver: 3.72W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 CAT Wall Plate (50m/DP/HDMI/US-1GANG) for?
4K60 CAT Wall Plate (50m/DP/HDMI/US-1GANG) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-WP50HDW?
MEPX-WP50HDW is listed with: TX + RX · 50m; 4K60; 50m class; HDMI 2.0b. Full connections are in the specification table on this page.
When do I choose this wall-plate extender instead of a box extender or a long HDMI cable?
MEPX-WP50HDW is a wall-plate extender kit. Use a box pair when the TX/RX sit in a rack. A long HDMI cable is only for a short local run.
What should I send for a correct quote on MEPX-WP50HDW?
WhatsApp MEGRA with model MEPX-WP50HDW, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-WP50HDW?
This extender is listed at 50m on wall plate. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
