4K60 HDBaseT Wall Plate (70m/DP/HDMI/USB/US-1GANG)
MEPX-WP20HDW

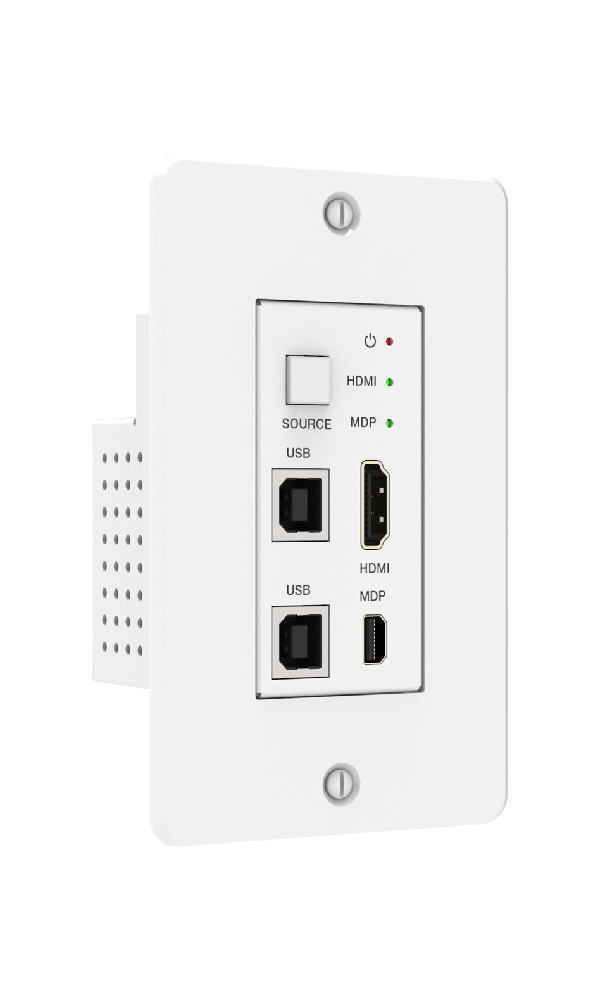

4K60 HDBaseT Wall Plate (70m/DP/HDMI/USB/US-1GANG) (MEPX-WP20HDW) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b, DisplayPort 1.2a.
- Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
- Support 18Gbps video bandwidth
- Video resolution up to 4K/UHD@60Hz 4:4:4

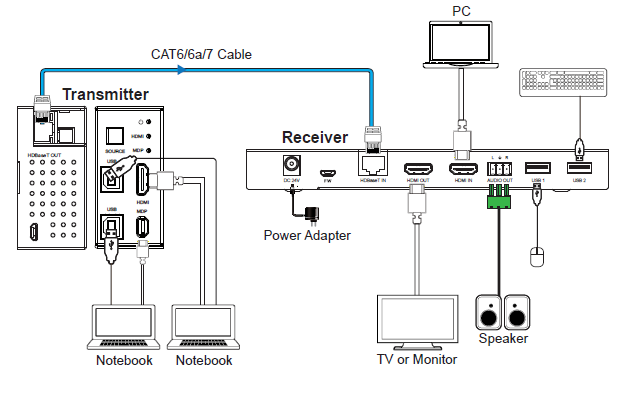

- HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable
- Support HDR10 and HDR10+
- Audio formats support Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b, DisplayPort 1.2a |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR10, HDR10+ |
| HDMI Audio Formats | Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch |
| Transmission Distance | Max distance (1080p) : 230ft / 70m over CAT6/6a/7 Max distance (UHD/4K): 131ft / 40m over CAT6/6a/7 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 2 x USB-B 1x miniDP [20-pin female] Output: 1x HDBaseT Out [RJ45, 8-pin female] Control: 1x Micro USB [Update port] |
| Receiver | Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Controls: 2x USB [USB A TYPE] 1x FW [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White / Black |
| Dimensions | Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 98mm [D] x 23mm [H] |
| Weight | Wall plate: 196g, Receiver: 511g |
| Power Supply | POE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 9W (Max), Receiver: 11W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
