4K HDMI Wireless 60G Extender (30m)
MEPX-W561

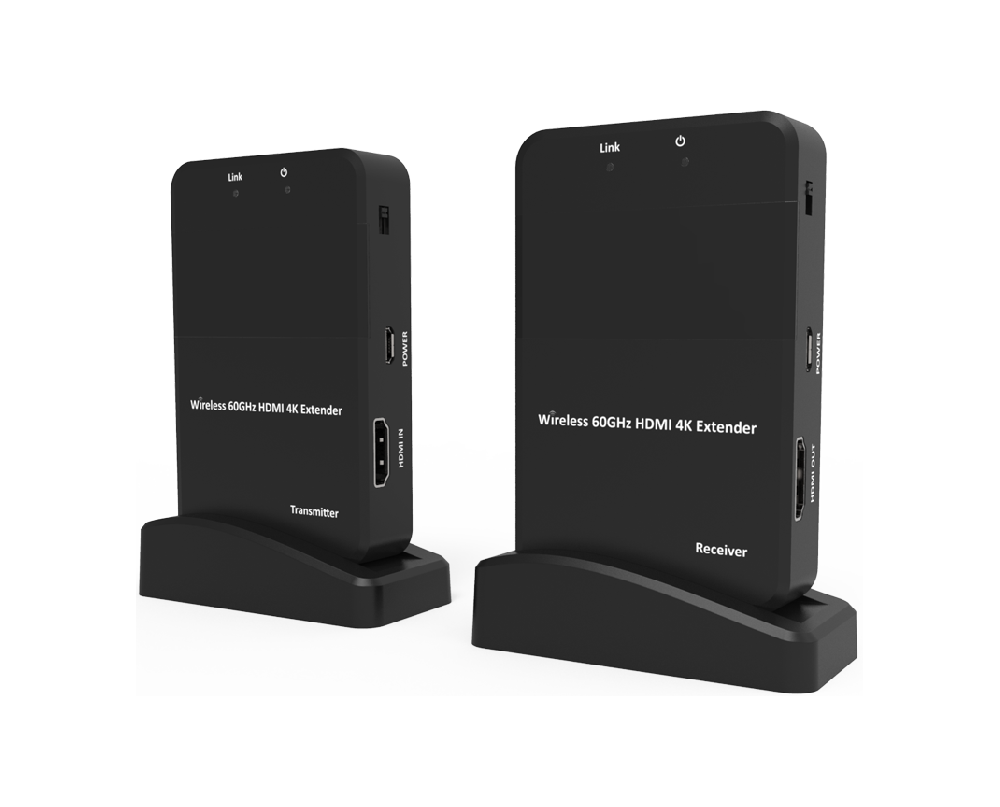

4K HDMI Wireless 60G Extender (30m) (MEPX-W561) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 30m; 4K; 30m class.
- HDMI 1.4b, HDCP 2.2 compliant
- Up to 4K@30Hz, 1080P@60Hz
- Up to 7.1 channels HD audio
- Uncompressed 4K Video & Audio
- Near zero latency
- Wireless extension up to 30 meters
For quote: model + client name + location
Specifications
| Technical | |
| Frequency Band Range | 60 GHz |
| Input resolution (Transmitter) | Up to 4K@30Hz |
| Output resolution (Receiver) | Up to 4K@30Hz |
| Input Ports(Transmitter) | 1x HDMI (Female type) |
| Output Ports(Receiver) | 1x HDMI (Female type) |
| USB Connector (Transmitter/ Receiver) | Micro USB |
| ESD Protection | ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Power Supply | 5V/1.5A DC (US/EU standards，CE/FCC/UL certified) |
| Dimensions | 90mm (W) × 56mm (D) × 17mm (H) |
| Weight | Transmitter:154g, Receiver: 155g |
| Chassis Material | Plastic |
| Silkscreen Color | Black |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Power Consumption | Transmitter: 3W , Receiver: 3W |
Questions about this model
What job is 4K HDMI Wireless 60G Extender (30m) for?
4K HDMI Wireless 60G Extender (30m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-W561?
MEPX-W561 is listed with: TX + RX · 30m; 4K; 30m class. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-W561?
WhatsApp MEGRA with model MEPX-W561, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-W561?
This extender is listed at 30m on wireless. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
