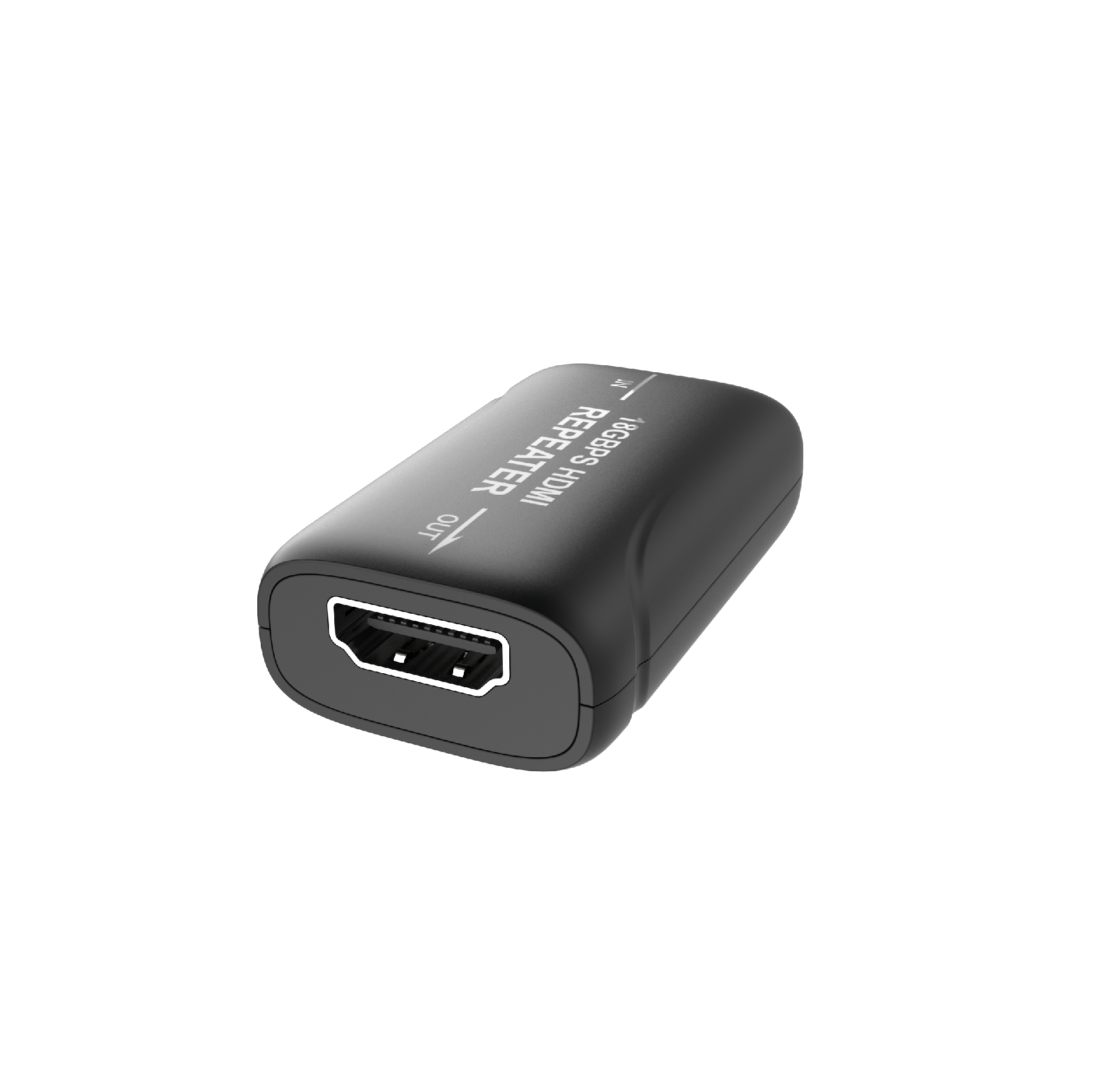

4K60 HDMI Repeater
MEPX-R65
4K60 HDMI Repeater (MEPX-R65) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX pair; 4K60; HDMI 2.0; Up to 4k2k@60Hz YUV 4:4:4.
- Compliant with HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0
- Support 18Gbps video bandwidth ☆ Support resolution up to 4K2K@60Hz 4:4:4
- Support HLG, HDR 10, HDR 10+ and dolby vision
- Built-in TMDS equalization and CDR (Clock Rate Recovery) for extending HDMI cable distance
- Support transmission distance up to 8m at the resolution of 4K2K@50/60Hz(YUV_444), 15m at 4K2K@60Hz(YUV_420) and 20m at 1080p@60Hz
- Require the HDMI source device to output power to the unit via an HDMI cable
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4k2k@60Hz YUV 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4, YUV 4:4:4, YCbCr 4:2:2/4:2:0 |
| Color Depth | 8-bit,10-bit,12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dollby-TrueHD, DTS-HD |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

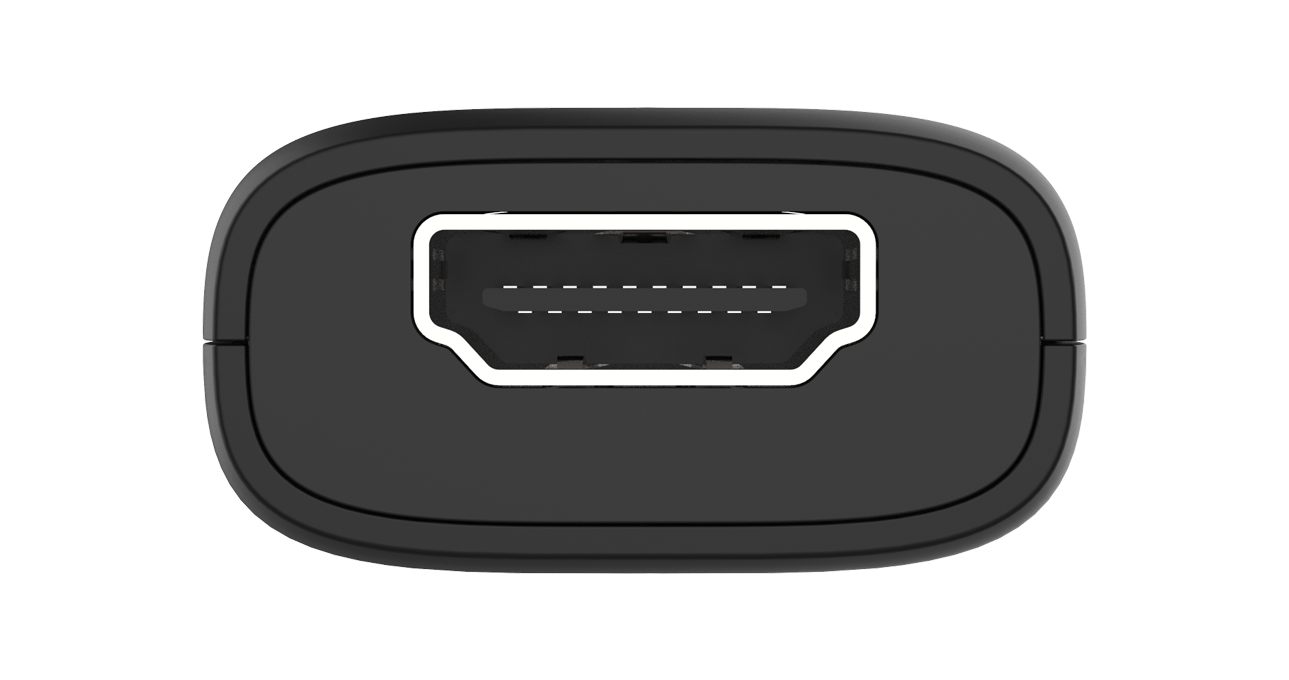

| Input | 1x HDMI Type A [19-pin female] |
| Output | 1x HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 48.6mm[W] x 25mm[D] x 15mm[H] |
| Weight | 13g |
| Power Supply | HDMI |
| Operation Temperature | 32°F - 104°F / 0°C -40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDMI Repeater for?
4K60 HDMI Repeater is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-R65?
MEPX-R65 is listed with: TX + RX pair; 4K60; HDMI 2.0; Up to 4k2k@60Hz YUV 4:4:4. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-R65?
WhatsApp MEGRA with model MEPX-R65, the client name, and the location. Add room type and I/O or run length if you already know them.
What link type is MEPX-R65?
This extender is a transmitter and receiver pair using Cat or HDBaseT. Confirm run length and resolution from the specification table.
