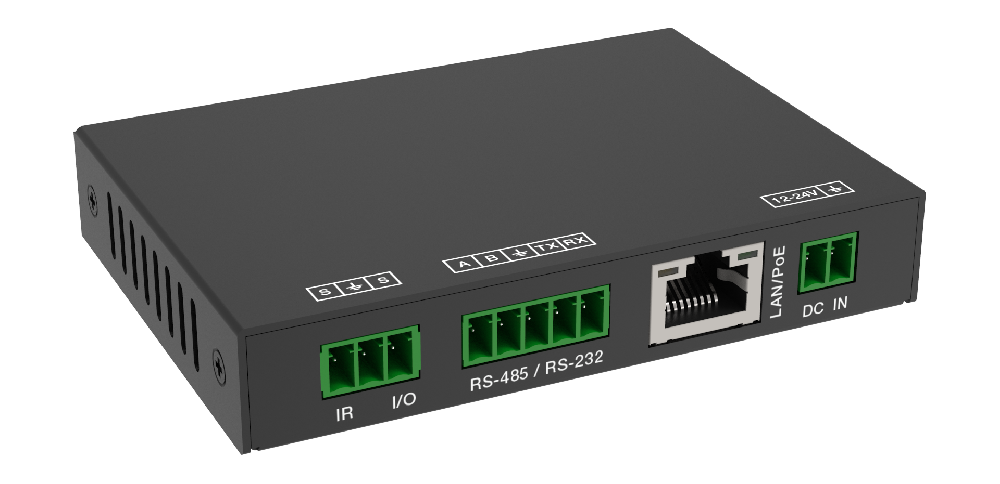

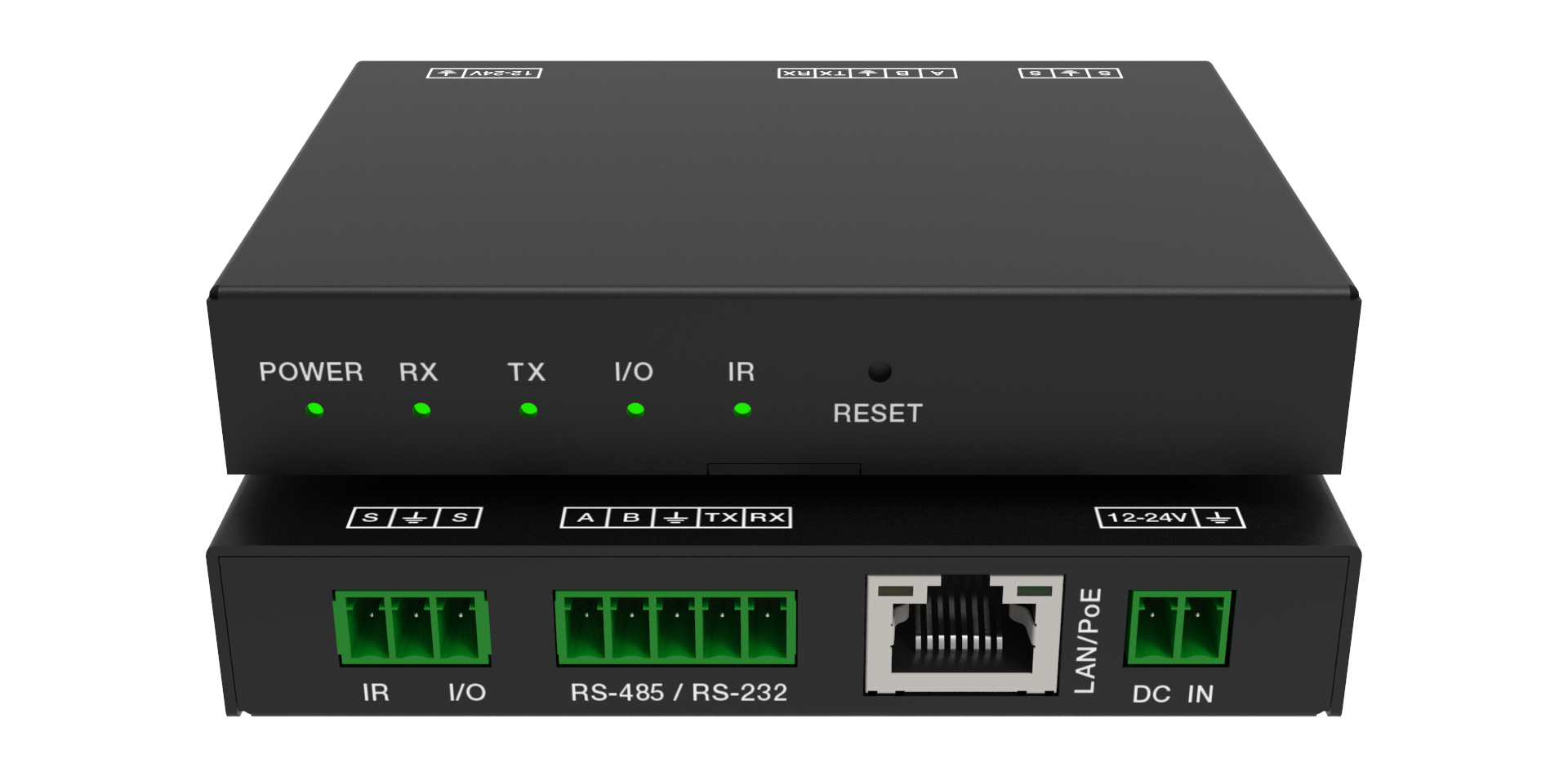

1-Port Extender
MEPX-EXT100
1-Port Extender (MEPX-EXT100) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX pair.
- The power input is designed with a wide voltage range (12-24V)
- Dual power supply modes, supporting DC or POE power supply
- Product parameters can be modified through API commands
- Built-in web server, allowing users to directly log in to web pages through various computer, tablet, and mobile device browsers to view system status or configure device parameters
- 1x 100M adaptive Ethernet port, supporting TCP/UDP mode communication (TCP mode is used by default, UDP is disabled)
- 1x GPIO input/output port (input mode by default, can be configured to output mode through Web GUI or API commands)
For quote: model + client name + location
Specifications
| Technical | |
| RS-232 | Support full duplex communication mod |
| RS-485 | Support half duplex communication mod |
| Baud Rate | Support 2400, 4800, 9600, 14400, 19200, 38400, 5600, 57600 and 115200 |
| LAN | 10/100 M Ethernet interface |
| GPIO | The detection accuracy can reach 1ms |
| IR | Support 5V IR Blaster cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connections | |
| INPUTS | 1 x LAN/PoE [RJ45, 8-pin female, supporting PoE] 1 x DC IN [2pin-3.81mm phoenix connector] |
| OUTPUTS | 1 x I/O&IR [3pin-3.81mm phoenix connector] 1 x RS-485/RS-232 [5pin-3.81mmphoenix connector] |
| Mechanical | |
| Housing | Mental Enclosure |
| Color | Black |
| Dimensions | 95mm [W] × 68mm [D] × 17mm [H] |
| Weight | 181g |
| Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 24V/1A |
| Power Consumption (Max) | 0.48W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Questions about this model
What job is 1-Port Extender for?
1-Port Extender is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-EXT100?
MEPX-EXT100 is listed with: TX + RX pair. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-EXT100?
WhatsApp MEGRA with model MEPX-EXT100, the client name, and the location. Add room type and I/O or run length if you already know them.
What link type is MEPX-EXT100?
This extender is a transmitter and receiver pair using Cat or HDBaseT. Confirm run length and resolution from the specification table.
