4K60 HDBaseT Extender (70m/USB)
MEPX-EHB70U
4K60 HDBaseT Extender (70m/USB) (MEPX-EHB70U) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b.
- HDMI2.0b, USB 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4k2k@60Hz YUV 4:4:4
- High bit rate audio transmission via HDMI
- The transmission distance can be extended up to 70m / 230ft at the resoution of 1080P@60Hz, or 40m / 164ft at 4K2K@60Hz 4:4:4 via a single CAT6/6a cable
- Support USB signal, bi-directional IR and RS-232 control signal passthrough
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz YUV 4:4:4 |
| USB Compliance | USB 2.0 |
| USB Transfer Rate | Transmission rate up to 480mb/s, USB1.1 compliant |
| Transmission Distance | 70m via a single CAT6 cable |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080P@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| HDR | HDR10, HDR10+, HLG |
| HDMI Audio Format | HDMI: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Optical: Dolby Digital, DTS 5.1, PCM 2CH Analog Signal: LPCM 2CH |
| Connections | |

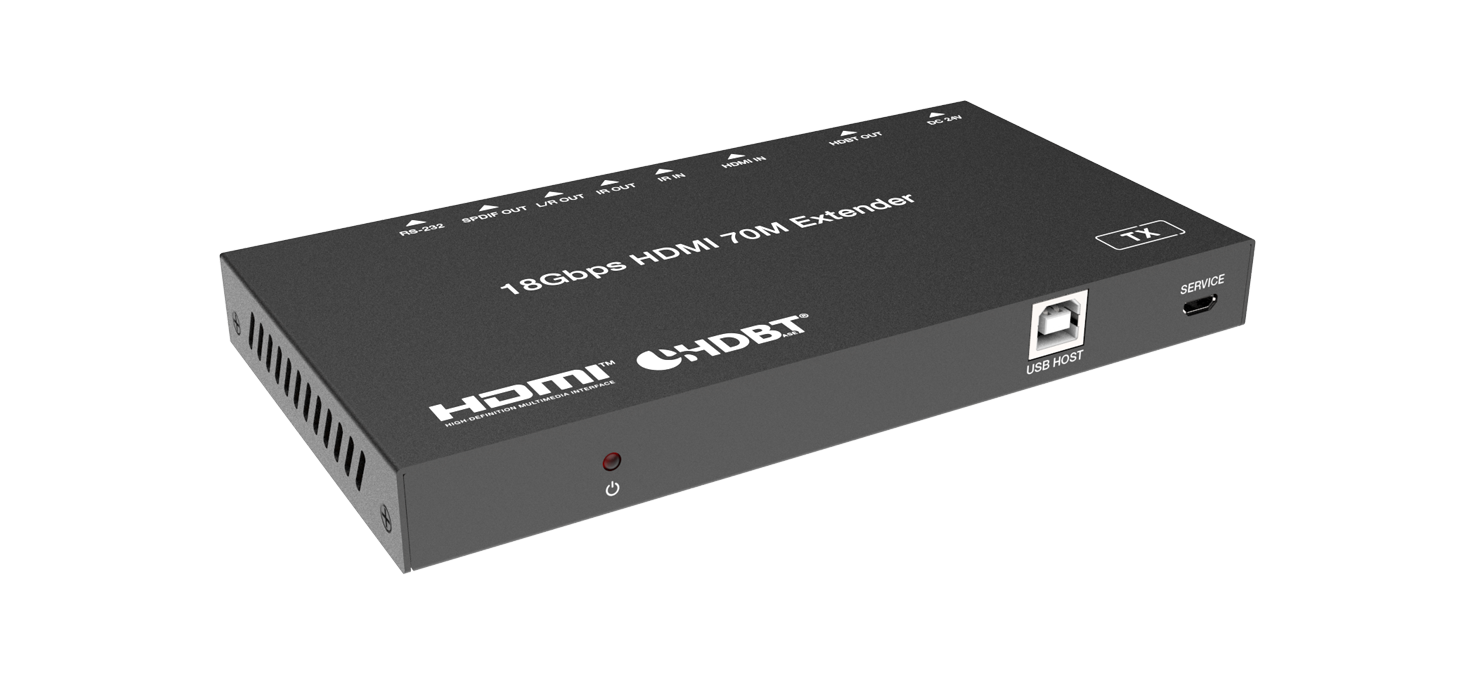

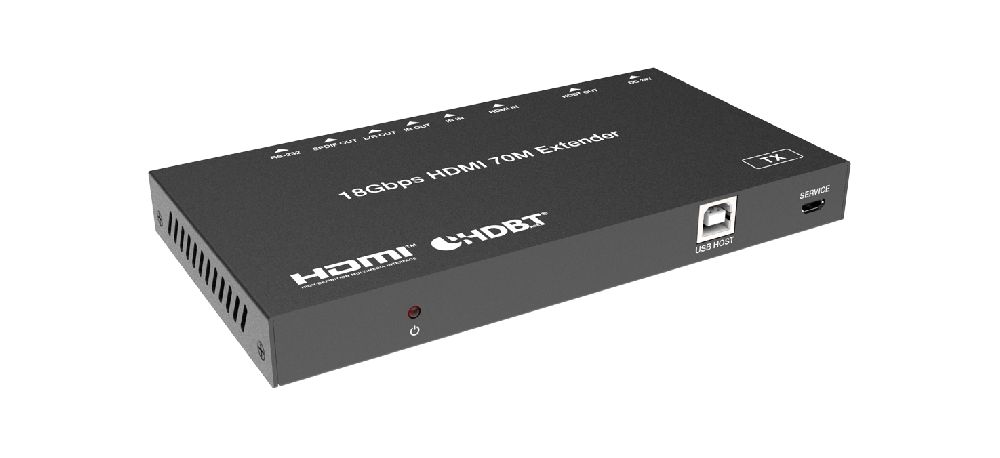

| Transmitter | Input: 1x HDMI IN [TypeA, 19-pin female] 1x IR IN [3.5mm Stereo Mini-jack] 1x Service [Micro-USB jack] 1x USB [USB-B, 4-pin female] Output: 1x HDBaseT OUT [RJ45] 1x IR OUT [3.5mm Stereo Mini-jack] 1x L/R OUT [3.5mm Stereo Mini-jack] 1x SPDIF OUT 1x RS-232 [Phoenix jack] |

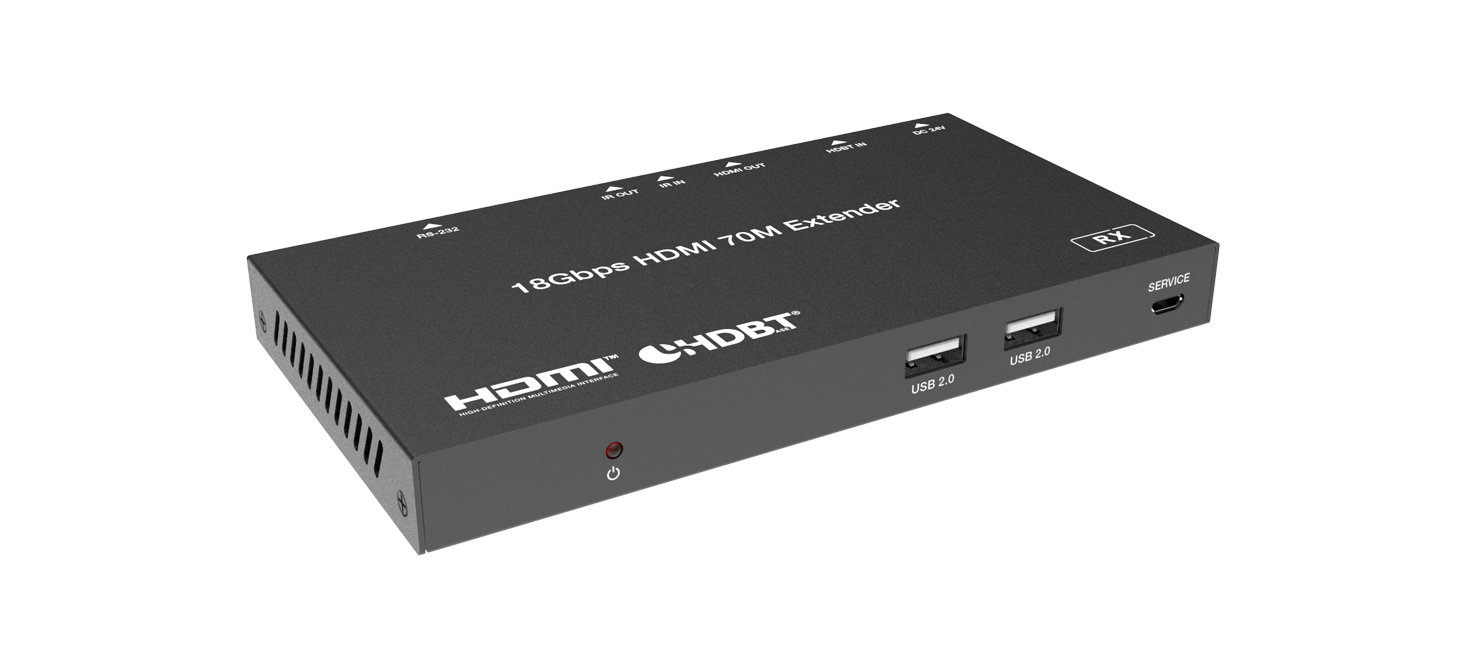

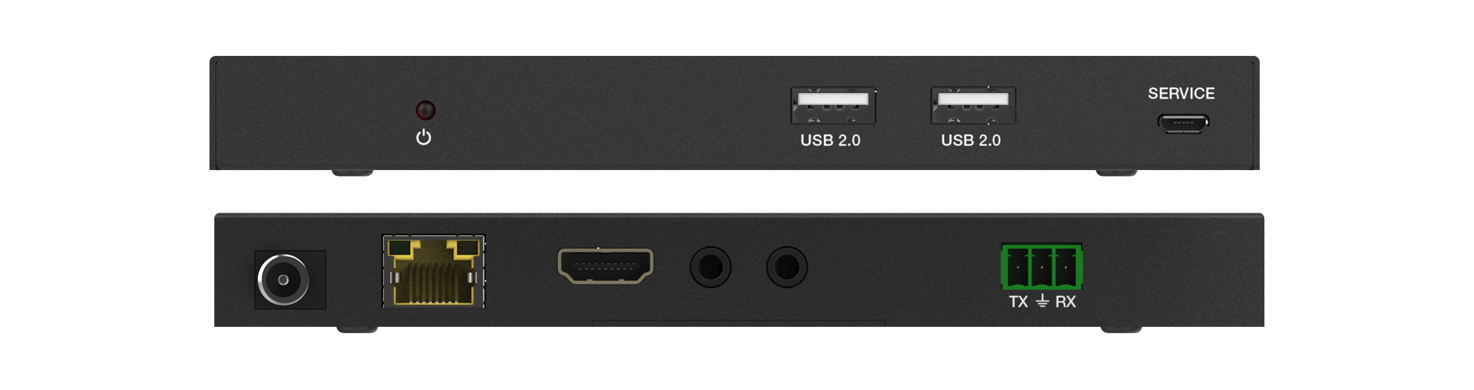

| Receiver | Input: 1x HDBaseT IN [RJ45 with light] 1x IR IN [3.5mm Stereo Mini-jack] 1x Service [Micro-USB jack] Output: 1x HDMI OUT [TypeA, 19-pin female] 1x RS-232 [Phoenix jack] 1x IR OUT [3.5mm Stereo Mini-jack] 2x USB [USB-A, 4-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 165mm [W]×88.3mm [D]×20mm [H] |
| Weight | 165g |
| Power Supply | DC 24V/1A; Support POC function |
| Power Consumption | 13W (max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDBaseT Extender (70m/USB) for?
4K60 HDBaseT Extender (70m/USB) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-EHB70U?
MEPX-EHB70U is listed with: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-EHB70U?
WhatsApp MEGRA with model MEPX-EHB70U, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-EHB70U?
This extender is listed at 70m on HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
