HDBaseT Extender (150m/USB)
MEPX-EHB150U2

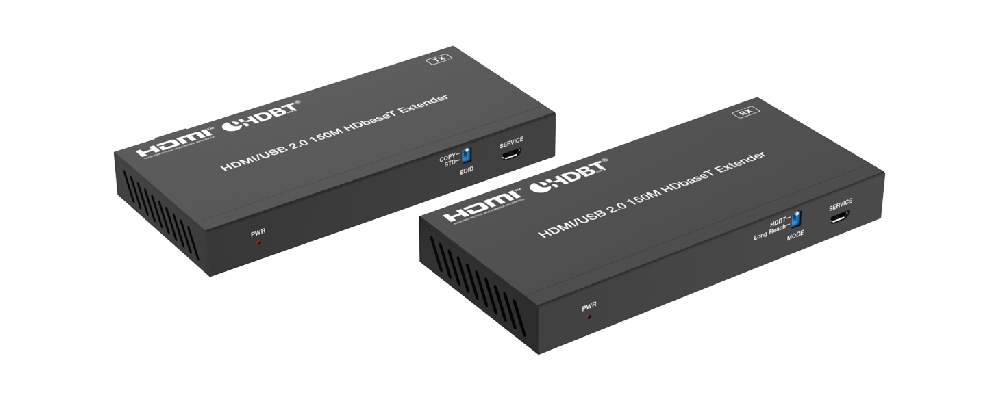

HDBaseT Extender (150m/USB) (MEPX-EHB150U2) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 150m; 4K; 150m class; HDCP 2.0b.
- HDMI 2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz YUV 4:4:4
- With Mode DIP switch to select HDBaseT Mode & Long Reach Mode
- Bi-directional IR signal and USB KVM signal pass-through are supported
- Support bi-directional POC (Power over Cable) function
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDCP 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz YUV 4:4:4 |
| USB Compliance | USB 2.0 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | HDBaseT Mode: 4K60 --328ft / 100m Long Reach Mode: 1080P--492ft / 150m； 4K60 -- 394ft / 120m |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM 7.1CH, Dolby True HD and DTS-HD Master |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

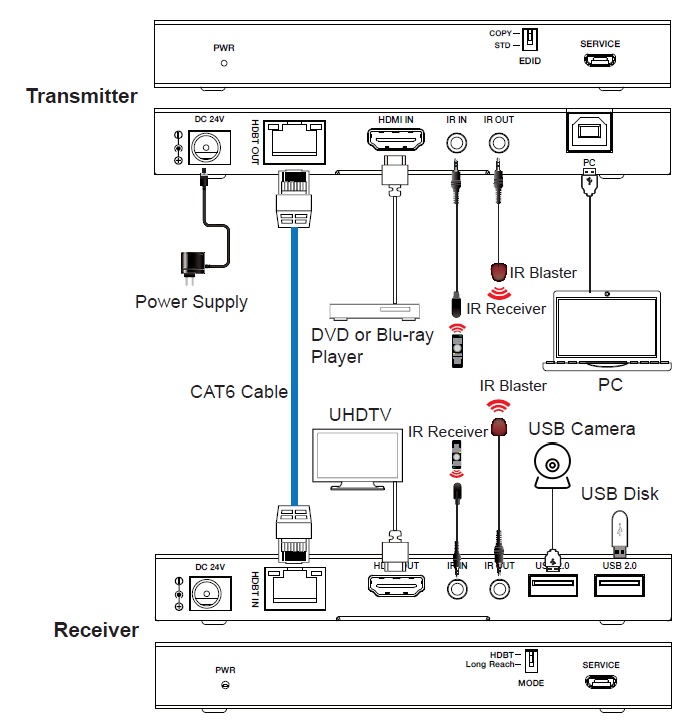

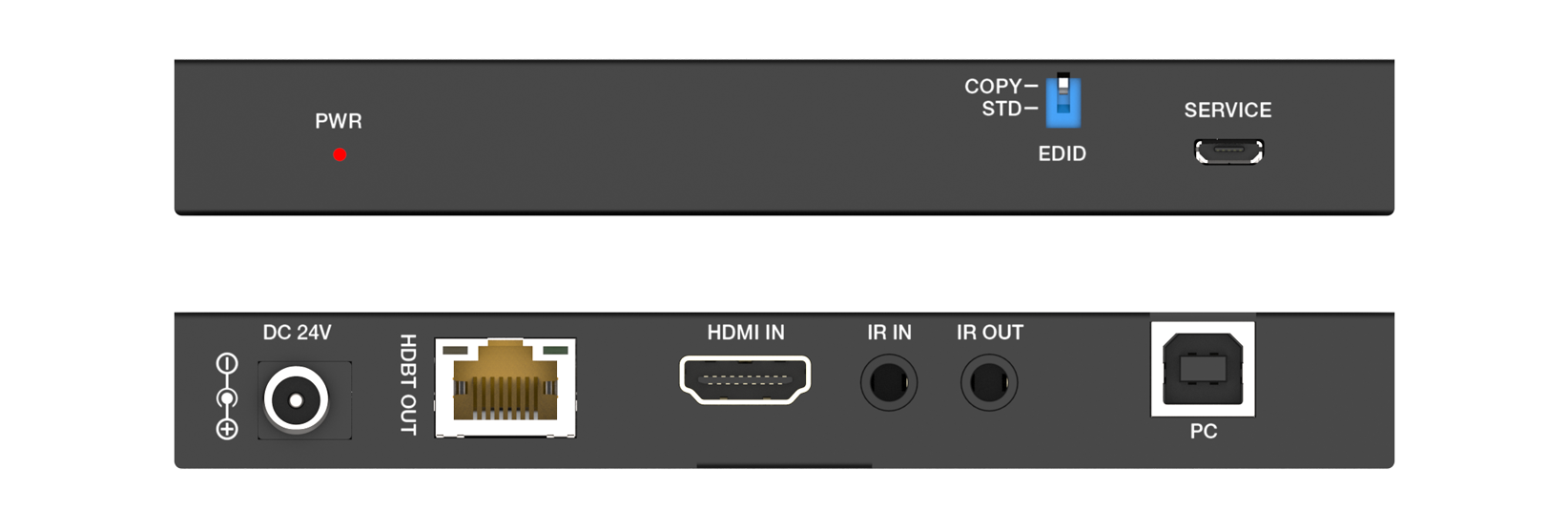

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] 1x IR IN [3.5mm Stereo Mini-jack] 1xSERVICE [Micro-USB jack] 1xUSB [USB-B, 4-pin female] Output: 1xHDBT OUT [RJ45] 1xIR OUT [3.5mm Stereo Mini-jack] |

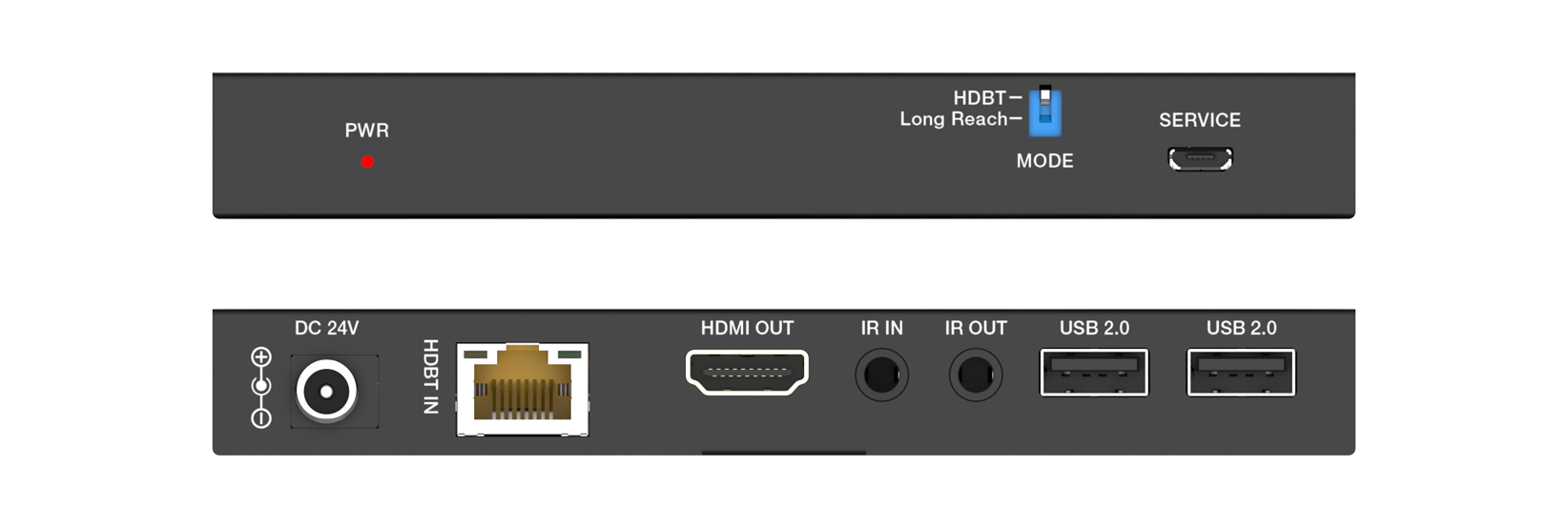

| Receiver | Input: 1x HDBT IN [RJ45 with light] 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro-USB jack] Output: 1x HDMI OUT [Type A, 19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 2x USB 2.0 [USB-A, 4-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H) |
| Weight | Transmitter: 245g, Receiver: 249g |
| Power Supply | DC 24V/1A; Support bi-directional POC function |
| Power Consumption (Max) | 13.2W (Max.) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20- 90% RH (no condensation) |
Questions about this model
What job is HDBaseT Extender (150m/USB) for?
HDBaseT Extender (150m/USB) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-EHB150U2?
MEPX-EHB150U2 is listed with: TX + RX · 150m; 4K; 150m class; HDCP 2.0b. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-EHB150U2?
WhatsApp MEGRA with model MEPX-EHB150U2, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-EHB150U2?
This extender is listed at 150m on HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
