4K60 HDBaseT KVM Extender (150m)
MEPX-EHB150SK

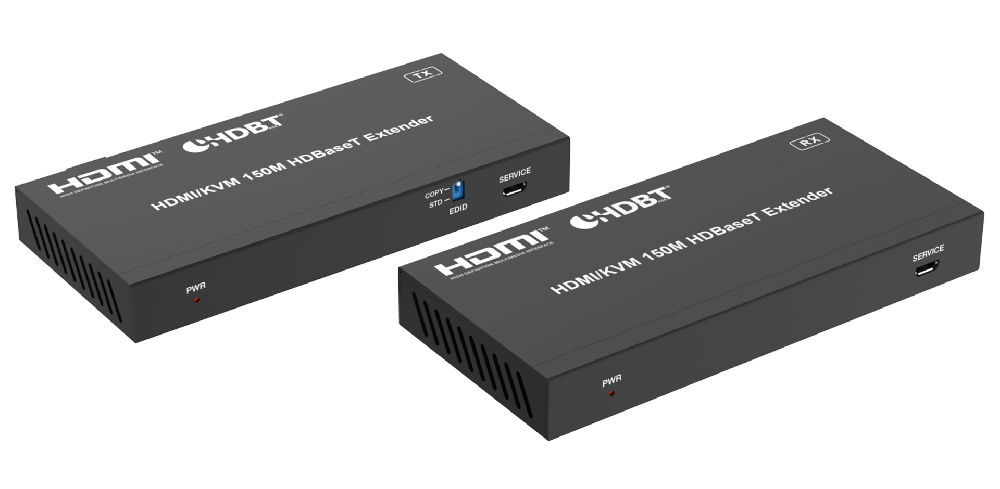

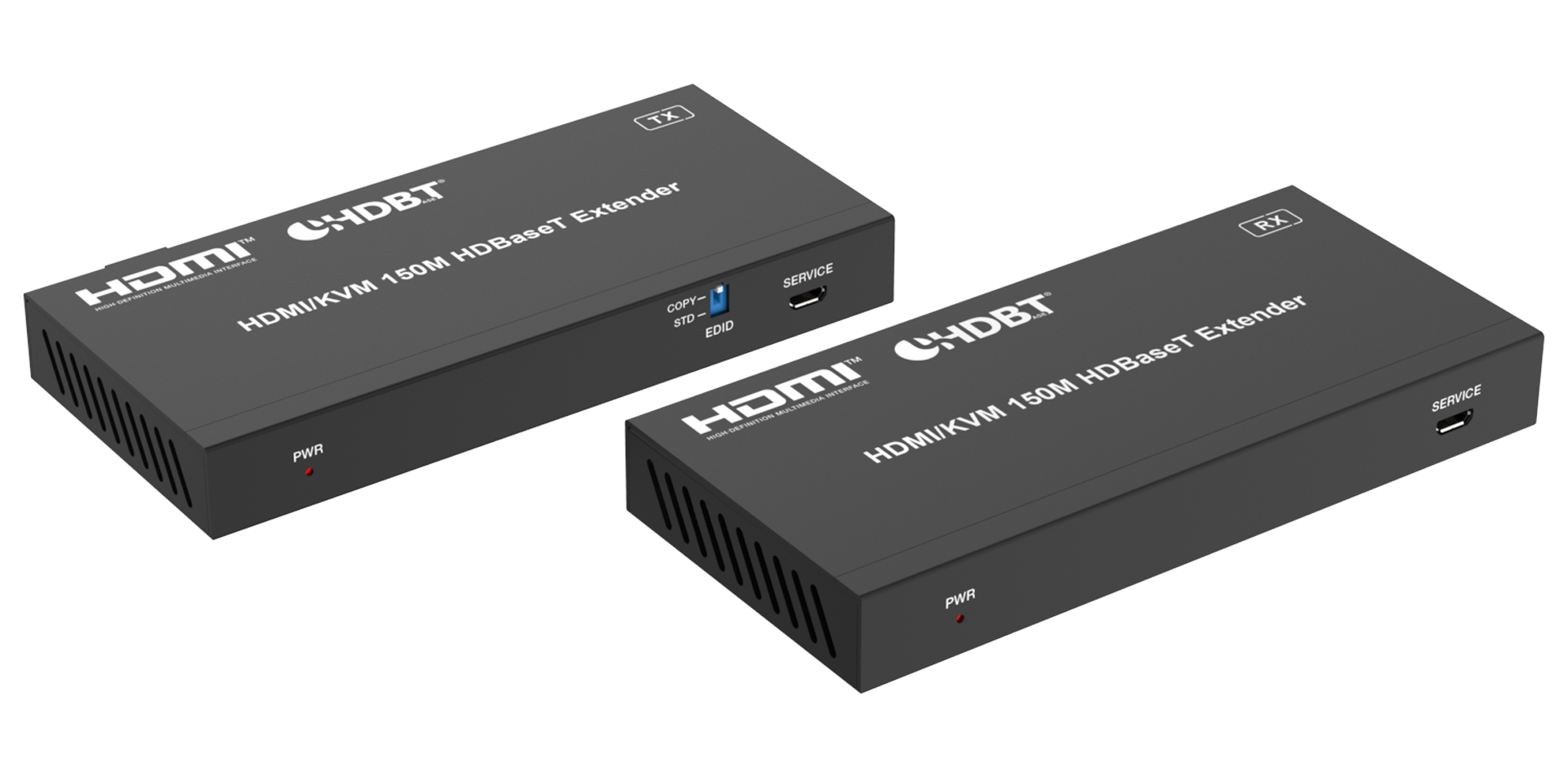

4K60 HDBaseT KVM Extender (150m) (MEPX-EHB150SK) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 150m; 4K60; 150m class; HDMI 2.0b.
- HDMI2.0b, HDCP 2.2 and USB 1.1 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz YUV 4:4:4
- The transmission distance can be extended up to 492ft / 150m at the resoution of 1080P@60Hz, or 394ft / 120m at 4K2K@60Hz 4:4:4 via a single CAT6 cable
- Support bi-directional IR signal and USB KVM signal pass-through
- Support bi-directional POC (Power over Cable) function
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz YUV 4:4:4 |
| USB Compliance | USB 1.1 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 1080P@60--150m, 4K60 --120m |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080P@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@30Hz) |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM 7.1CH, Dolby True HD, and DTS-HD Master |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

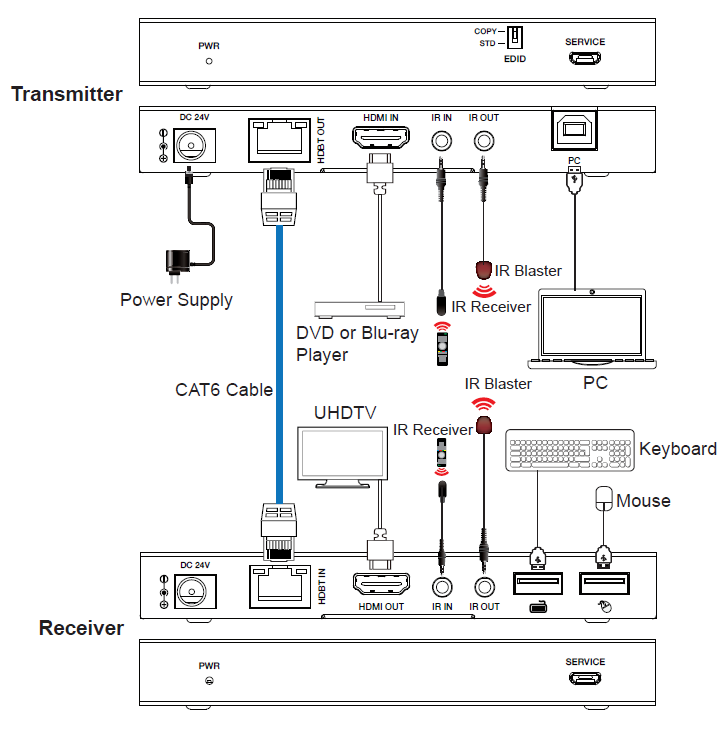

| Transmitter | Input: 1x HDMI IN [TypeA, 19-pin female] 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro-USB jack] 1x USB [USB-B, 4-pin female] Output: 1x HDBT OUT [RJ45] 1x IR OUT [3.5mm Stereo Mini-jack] |

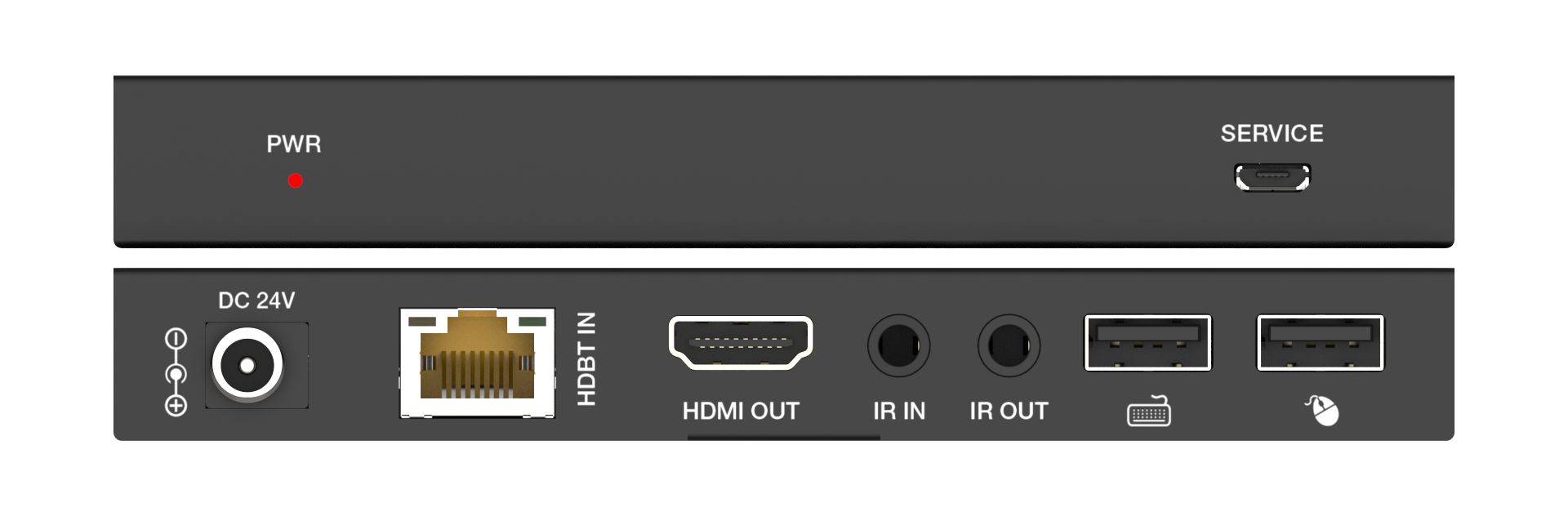

| Receiver | Input: 1x HDBT IN [RJ45 with light] 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro-USB jack] Output: 1x HDMI OUT [TypeA, 19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 2x USB [USB-A, 4-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H) |
| Weight | Transmitter: 246g, Receiver: 246g |
| Power Supply | DC 24V/1A; Support POC function |
| Power Consumption | 10W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDBaseT KVM Extender (150m) for?
4K60 HDBaseT KVM Extender (150m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-EHB150SK?
MEPX-EHB150SK is listed with: TX + RX · 150m; 4K60; 150m class; HDMI 2.0b. Full connections are in the specification table on this page.
When do I choose this KVM extender instead of a video-only extender or a long HDMI cable?
MEPX-EHB150SK is listed as a KVM extender — video plus keyboard/mouse on the published link. A video-only extender does not add USB KVM. A long HDMI cable is only for a short local run.
What should I send for a correct quote on MEPX-EHB150SK?
WhatsApp MEGRA with model MEPX-EHB150SK, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-EHB150SK?
This extender is listed at 150m on KVM over the listed link. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
