HDBaseT Extender (150m/Audio)
MEPX-EHB150CG

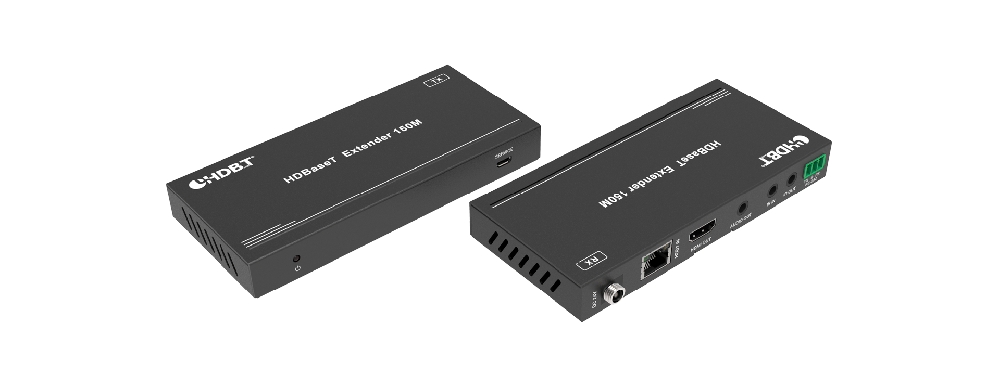

HDBaseT Extender (150m/Audio) (MEPX-EHB150CG) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 150m; 4K; 150m class.
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable:
- Support one HDMI loop output on the transmitter
- De-embeded audio to analog stereo output on receiver
- With bi-directional IR, RS-232 and CEC pass-through
For quote: model + client name + location
Specifications
| Technical | |
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| L/R Audio Formats | PCM 2.0 |
| ESD Protection | 150m/492ft at 1080P@60 |
| Connections | |

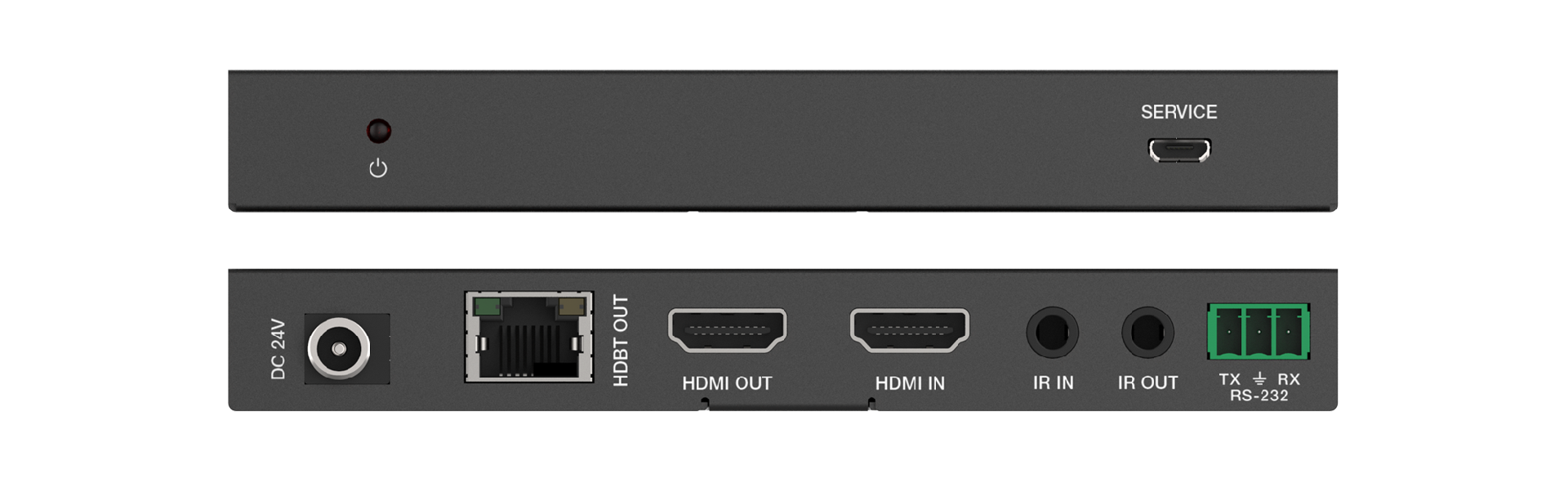

| Transmitter | Input: 1x HDMI IN [TypeA 19-pin female] 1x LINE IN [3.5mm Stereo Mini-jack] Output: 1x HDBT OUT [RJ45 8-pin female] 1x HDMI OUT [TypeA 19-pin female] Control: 1x AUDIO DIP Switch [1 pin] 1x EDID DIP Switch [2-pin] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x Service [Micro-USB jack] |

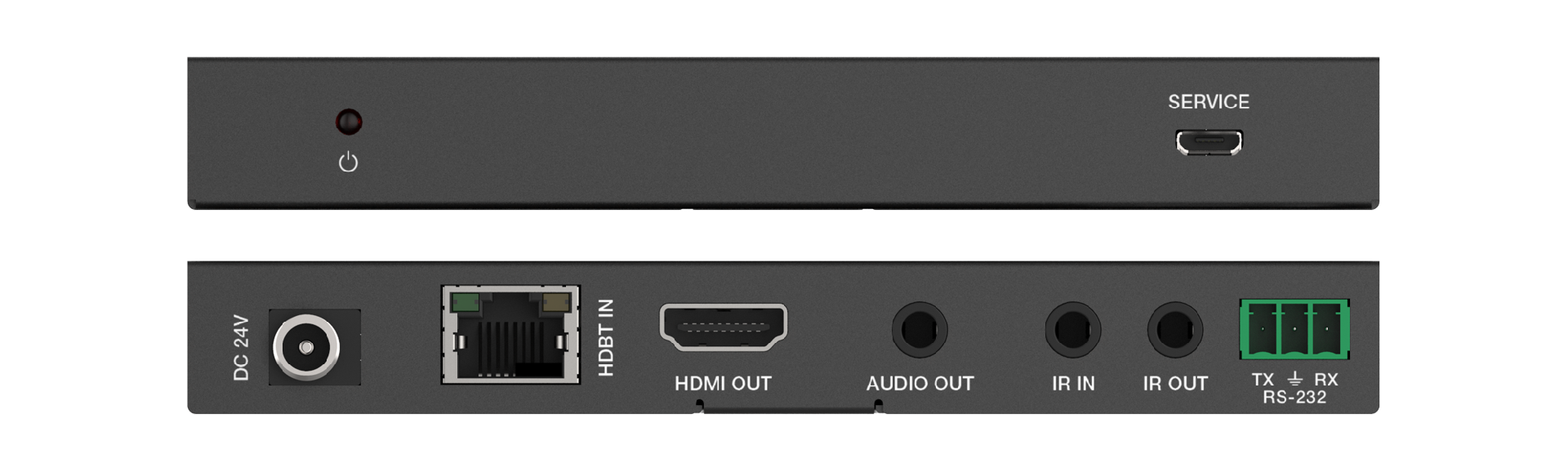

| Receiver | Input: 1x HDBT IN [RJ45 8-pin female] Output: 1x HDMI OUT [TypeA 19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x RS-232 [Phoenix jack] 1x SERVICE [Micro-USB jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 140mm [W] x 65mm [D] x 18mm [H] |
| Weight | Transmitter: 160g, Receiver: 155g |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (Locking connector) |
| Power Consumption (Max) | 9.36 W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is HDBaseT Extender (150m/Audio) for?
HDBaseT Extender (150m/Audio) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-EHB150CG?
MEPX-EHB150CG is listed with: TX + RX · 150m; 4K; 150m class. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-EHB150CG?
WhatsApp MEGRA with model MEPX-EHB150CG, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-EHB150CG?
This extender is listed at 150m on HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
