4K60 HDBaseT Extender (100m/ARC)
MEPX-EHB100AE
4K60 HDBaseT Extender (100m/ARC) (MEPX-EHB100AE) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 100m; 4K60; 100m class.
- HDCP 2.2 / 1.x and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Video resolution is up to 4k2k@60Hz YUV 4:4:4 High bit rate audio transmission via HDMI
- The maximum transmission distance is 328ft / 100 meters via a single CAT6/6a cable
- Support PoC (Power over Cable) function
- Support ARC (Audio Return Channel) function
For quote: model + client name + location
Specifications
| Technical | |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All PC resolutions including 1920 x 1200 |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| L/R Audio Formats | PCM 2.0 |
| SPDIF Audio Formats | LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connections | |

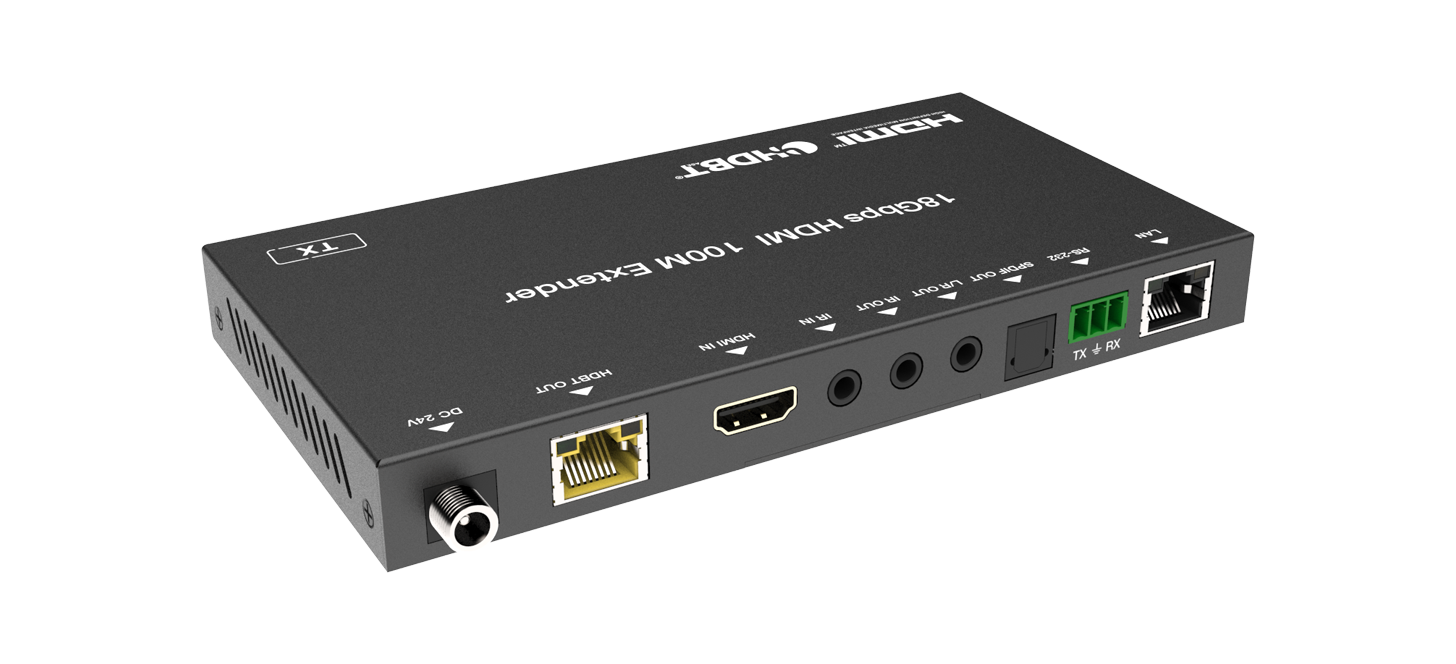

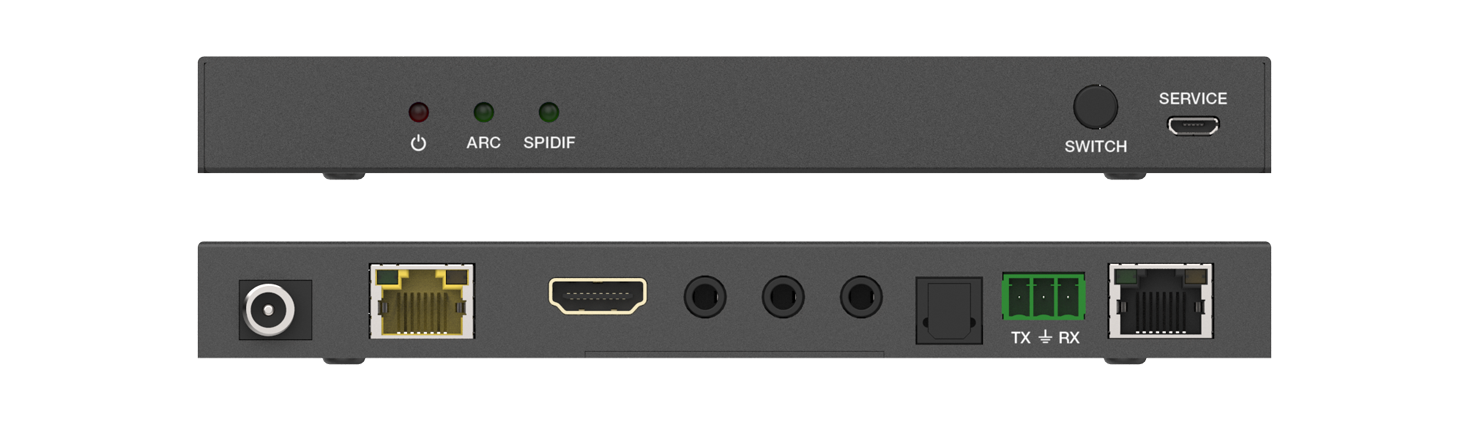

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDBT OUT [RJ45, 8-pin female] 1x SPDIF OUT [S/PDIF] 1x L/R OUT [3.5mm Stereo Mini-jack] 1x LAN [RG45] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] |

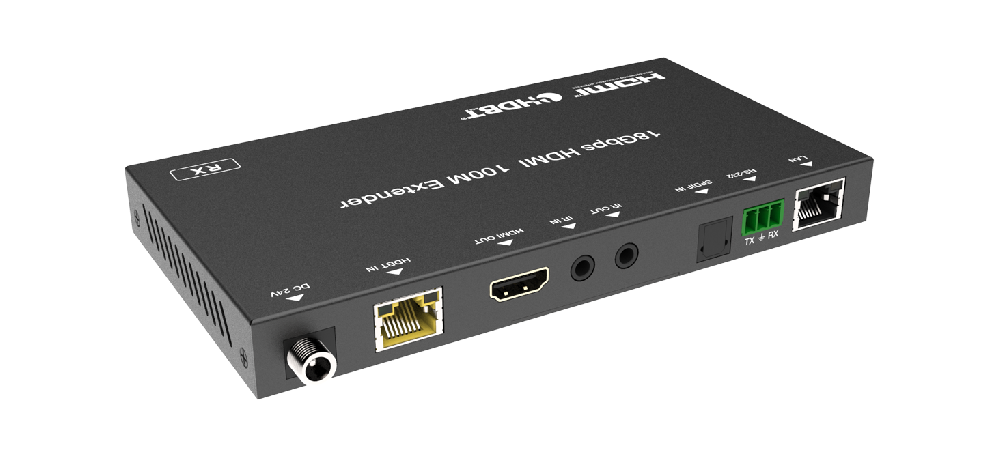

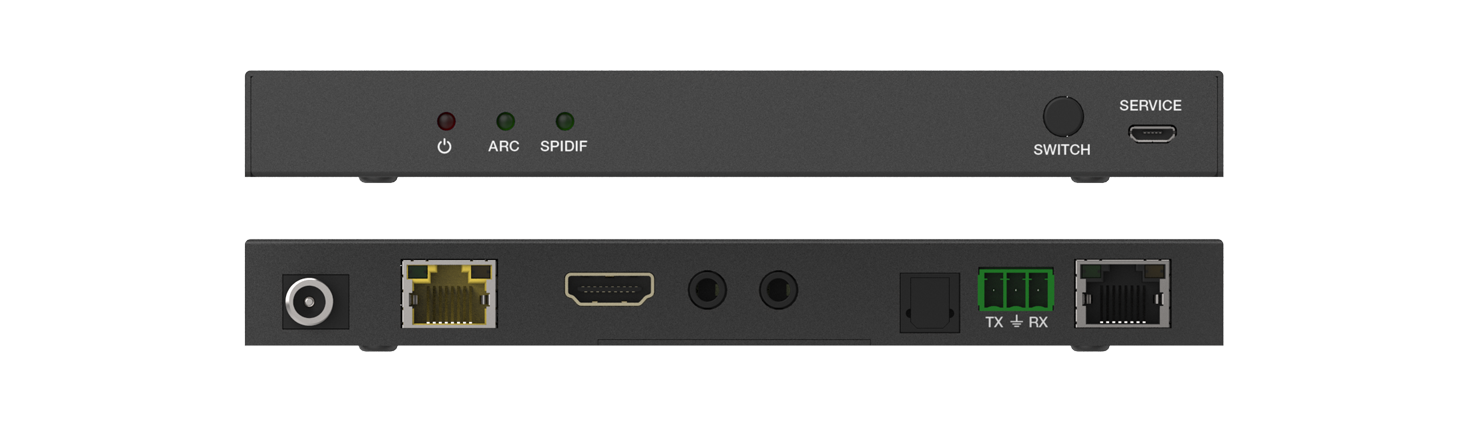

| Receiver | Inputs: 1x HDBT IN [RJ45, 8-pin female] 1x SPDIF IN [S/PDIF] Outputs: 1x HDMI Type A [19-pin female] 1x LAN [RG45] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 163mm [W] x 90mm [D] x 16mm [H] |
| Weight | Transmitter: 170g, Receiver: 165g |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (Locking connector) |
| Power Consumption | 13 W (max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Resolution | Disntance |
| 4K2K | 296ft /90M |
| 1080P | 328ft /100M |
| Resolution / Cable Length | 4K60 - Feet / Meters / 4K30 - Feet / Meters / 1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M / 32ft / 10M / 50ft / 15M |
Questions about this model
What job is 4K60 HDBaseT Extender (100m/ARC) for?
4K60 HDBaseT Extender (100m/ARC) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-EHB100AE?
MEPX-EHB100AE is listed with: TX + RX · 100m; 4K60; 100m class. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-EHB100AE?
WhatsApp MEGRA with model MEPX-EHB100AE, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-EHB100AE?
This extender is listed at 100m on HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
