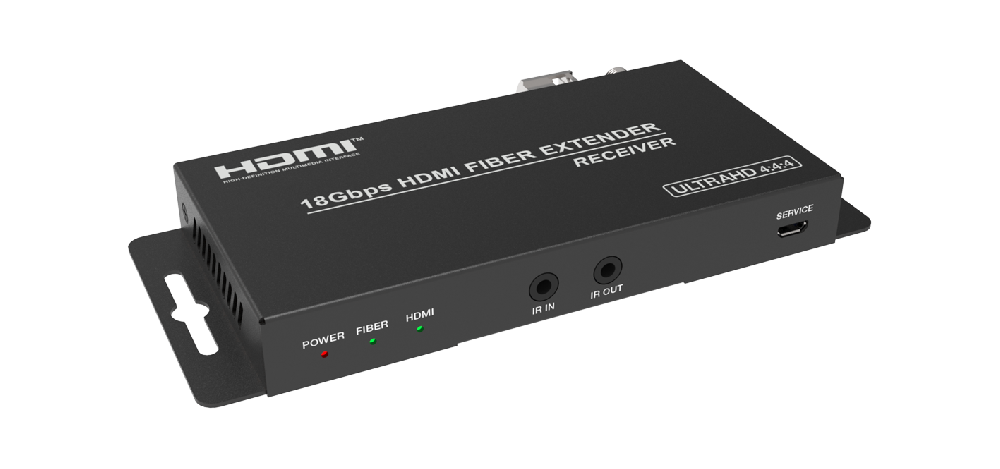

HDMI Fiber Extender (10Km)
MEPX-EDF10K
HDMI Fiber Extender (10Km) (MEPX-EDF10K) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 10Km; 4K; Up to 33000 feet/10 km over single-mode fiber cable; HDMI 2.0b.
- HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Video resolution up to 4K2K@50/60Hz 4:4:4
- HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Support 3D and HDR format video, does not support CEC control
- Transmission distance up to 33000 feet/10 km (over single-mode fiber cable)
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| USB Version | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDMI Audio Formats | LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | Up to 33000 feet/10 km over single-mode fiber cable |
| IR Frequency | 20KHz-60KHz |
| RS-232 Baud Rate | 4800-115200bps |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

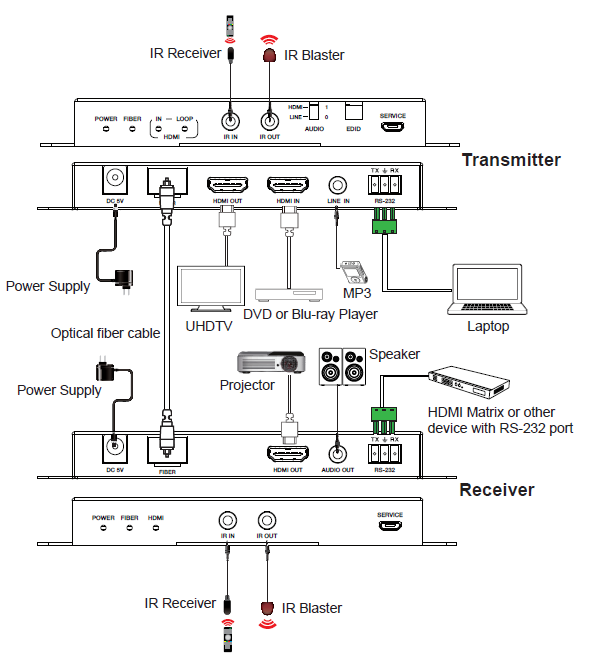

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] 1x LINE IN [3.5mm Stereo Mini-jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x RS-232 [3.81mm Phoenix connector] 1x SERVICE [Micro USB, Update port] Output: 1x HDMI OUT [Type A, 19-pin female] 1x Optical Fiber Out [LC female] 1x IR OUT [3.5mm Stereo Mini-jack] |

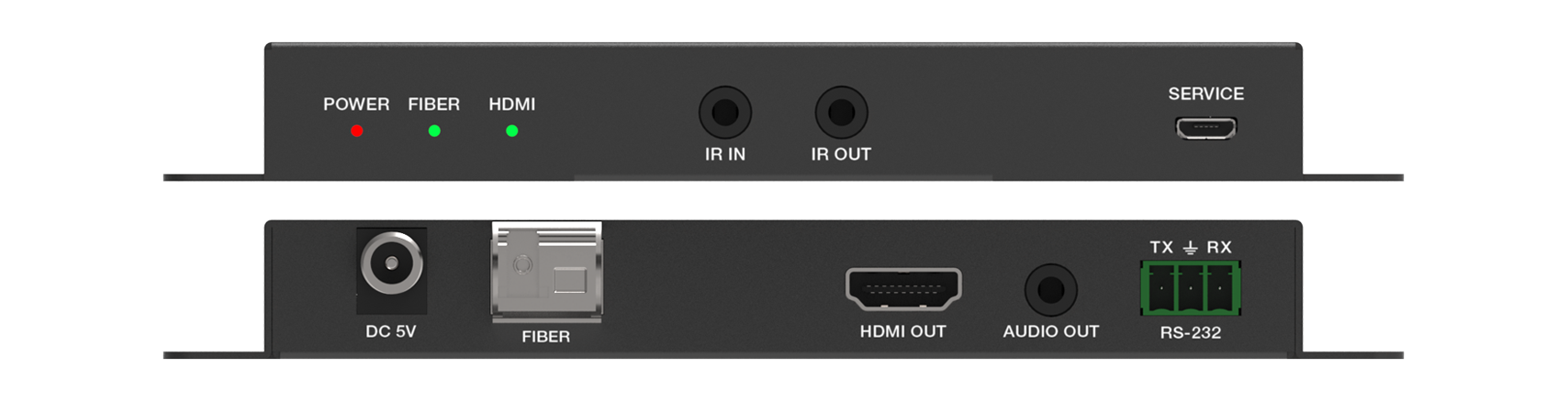

| Receiver | Input: 1x Optical Fiber In [LC female] 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro USB, Update port] Output: 1x HDMI OUT [Type A, 19-pin female] 1x RS-232 [3.81mm Phoenix connector] 1x IR OUT [3.5mm Stereo Mini-jack] 1x AUDIO OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 134mm [W] x 68mm [D] x 18mm [H] |
| Weight | Transmitter: 280g, Receiver: 278g |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | Transmitter: 3.85W (Max.), Receiver: 2.7W (Max.) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is HDMI Fiber Extender (10Km) for?
HDMI Fiber Extender (10Km) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-EDF10K?
MEPX-EDF10K is listed with: TX + RX · 10Km; 4K; Up to 33000 feet/10 km over single-mode fiber cable; HDMI 2.0b. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-EDF10K?
WhatsApp MEGRA with model MEPX-EDF10K, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-EDF10K?
This extender is listed at Up to 33000 feet/10 km over single-mode fiber cable on fiber. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
