4K60 HDMI KVM Extender (70m)
MEPX-EDB70SK

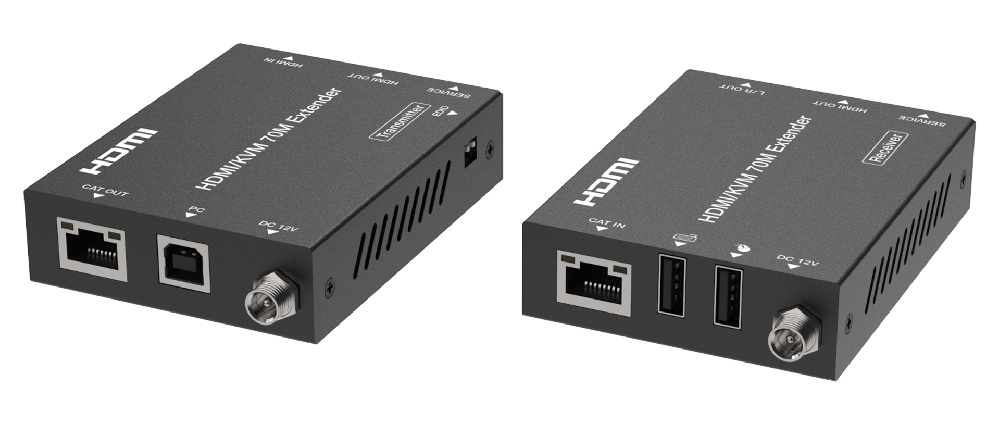

4K60 HDMI KVM Extender (70m) (MEPX-EDB70SK) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b.
- HDMI2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
- The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG
- Audio formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+)
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz RGB/YCBCR 4:4:4 |
| Transmission Distance | 4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6 cable) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+) |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

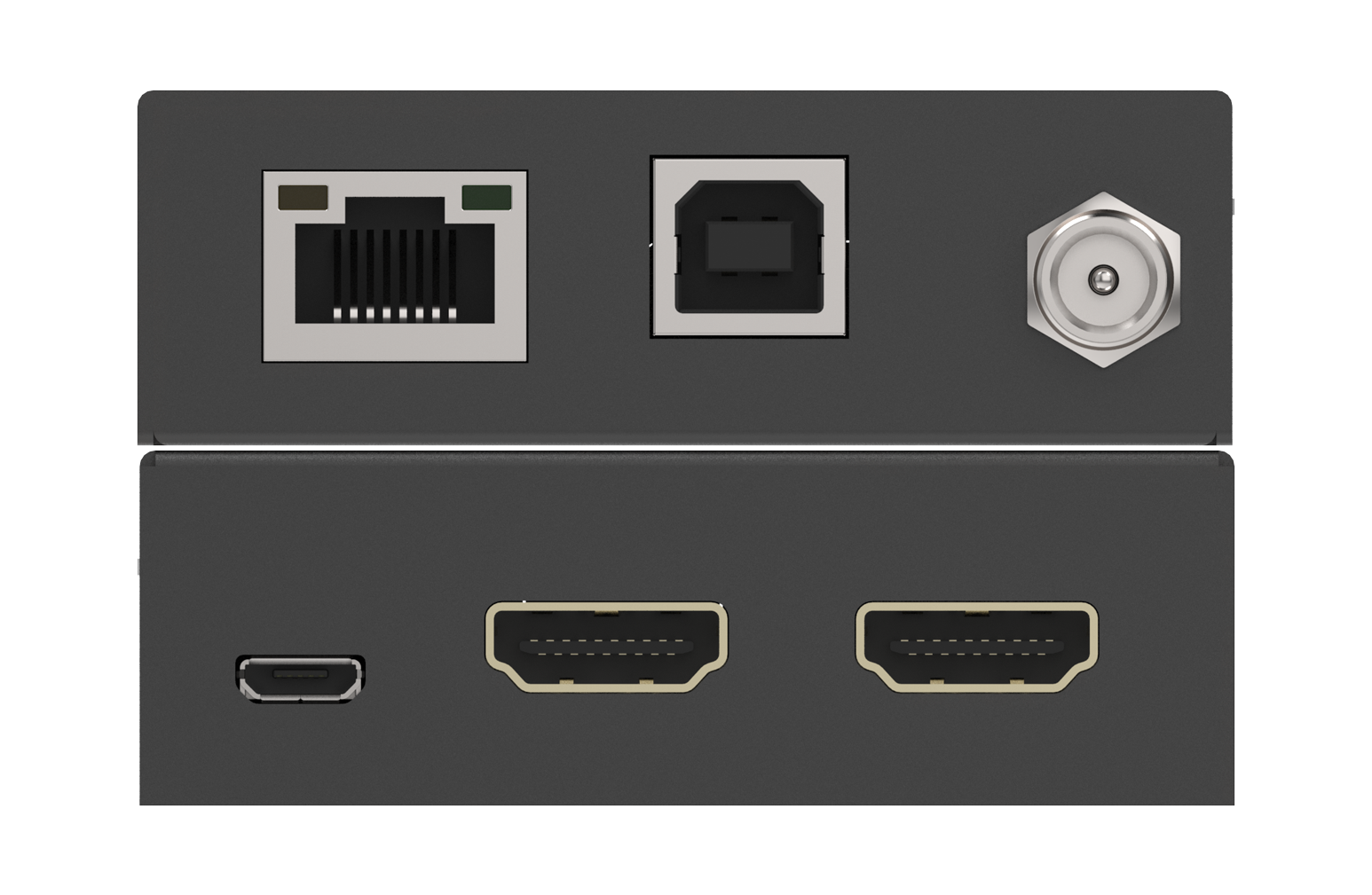

| Transmitter | Input: 1x HDMI IN [TypeA, 19-pin female] Output: 1x HDMI OUT [TypeA, 19-pin female] 1x CAT OUT [RJ45] Control: 1x SERVICE [Micro-USB jack] 1x USB port [Type-B jack] |

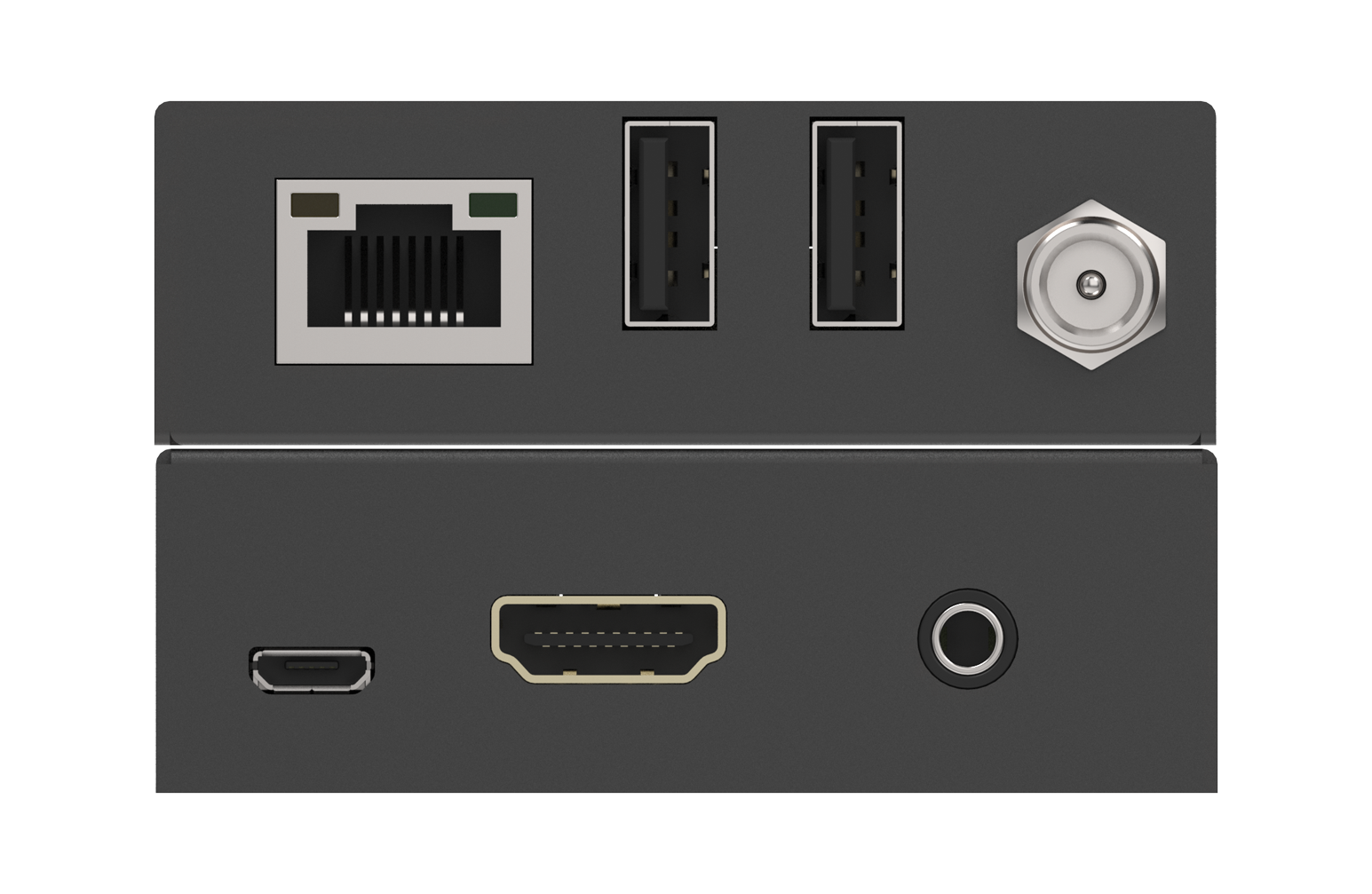

| Receiver | Input: 1x CAT IN [RJ45] Output: 1x HDMI OUT [TypeA, 19-pin female] 1x L/R OUT [3.5mm Stereo Mini-jack] Control: 1x SERVICE [Micro-USB jack] 2x USB port [Type-A jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 90mm (W)×68mm (D)×22mm (H) |
| Weight | Transmitter: 170g, Receiver: 169g |
| Power Supply | DC 12V/1A; Support bi-directional POC function |
| Power Consumption | 4.2 W (max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDMI KVM Extender (70m) for?
4K60 HDMI KVM Extender (70m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-EDB70SK?
MEPX-EDB70SK is listed with: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b. Full connections are in the specification table on this page.
When do I choose this KVM extender instead of a video-only extender or a long HDMI cable?
MEPX-EDB70SK is listed as a KVM extender — video plus keyboard/mouse on the published link. A video-only extender does not add USB KVM. A long HDMI cable is only for a short local run.
What should I send for a correct quote on MEPX-EDB70SK?
WhatsApp MEGRA with model MEPX-EDB70SK, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-EDB70SK?
This extender is listed at 70m on KVM over the listed link. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
