4K60 HDMI Extender (70m)
MEPX-EDB70CG

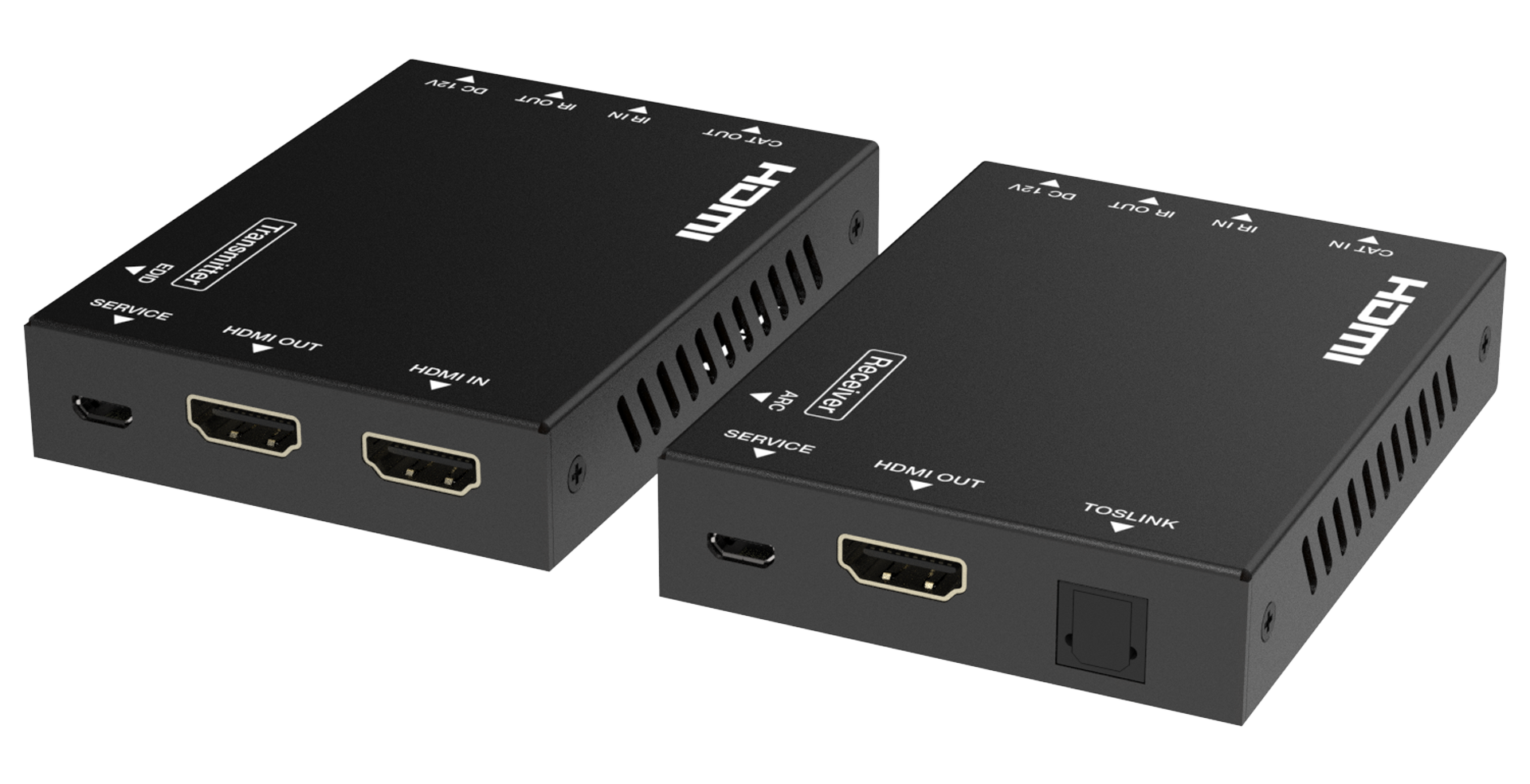

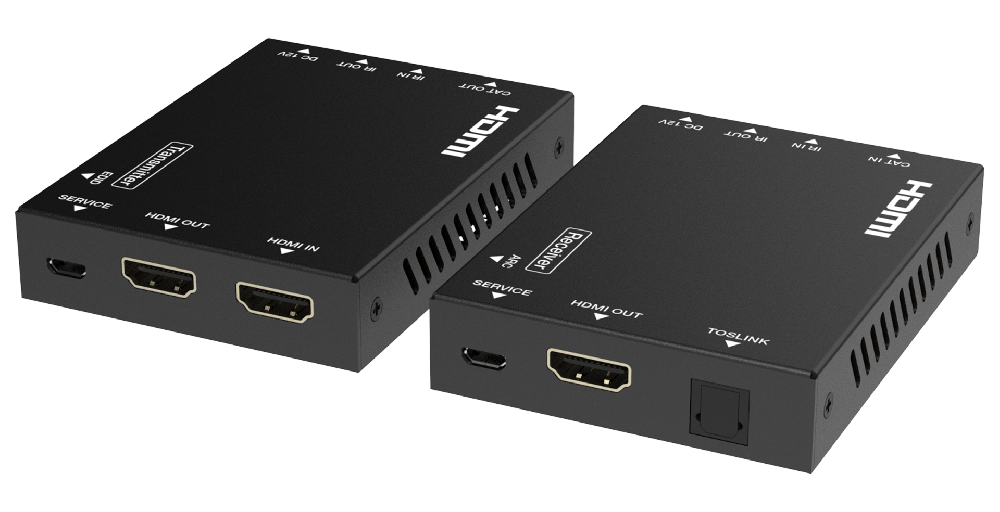

4K60 HDMI Extender (70m) (MEPX-EDB70CG) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b.
- HDMI2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
- The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG
- Support bi-directional IR control signal pass-through
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz RGB/YCBCR 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6/6a cable) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |

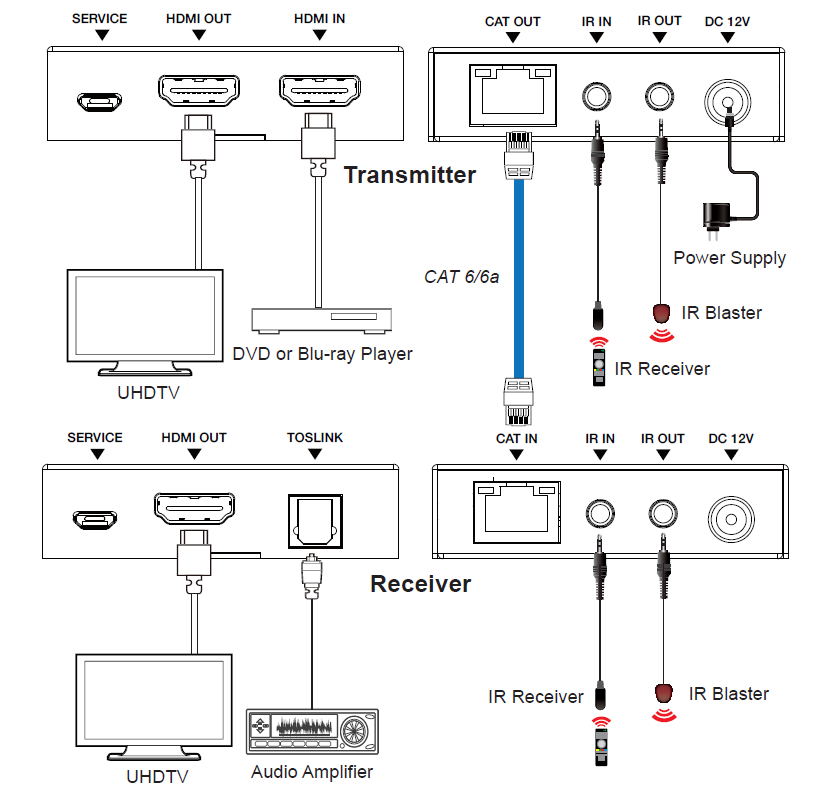

| Connections | |
| Transmitter | Input: 1x HDMI IN [TypeA, 19-pin female] Output: 1x HDMI OUT [RJ45] 1x CAT OUT [RJ45] Control: 1x SERVICE [Micro-USB jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Receiver | Input: 1x CAT IN [RJ45] Output: 1x HDMI OUT [TypeA, 19-pin female] 1x TOSLINK Control: 1x SERVICE [Micro-USB jack] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 90mm (W)×68mm (D)×18mm (H) |
| Weight | Transmitter: 160g, Receiver: 155g |
| Power Supply | DC 12V/1A; Support bi-directional POC function |
| Power Consumption | 3.36 W (max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDMI Extender (70m) for?
4K60 HDMI Extender (70m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-EDB70CG?
MEPX-EDB70CG is listed with: TX + RX · 70m; 4K60; 70m class; HDMI 2.0b. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-EDB70CG?
WhatsApp MEGRA with model MEPX-EDB70CG, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-EDB70CG?
This extender is listed at 70m on Cat or HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
