HDMI Extender (70m)
MEPX-ED970EB

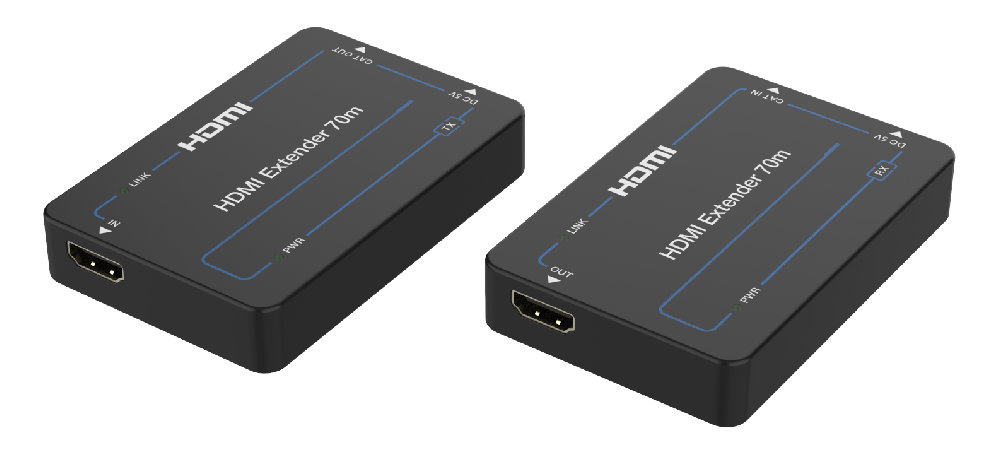

HDMI Extender (70m) (MEPX-ED970EB) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 4K; 70m class; HDMI 1.4b.
- HDMI 1.4b and HDCP 1.4 compliant
- Support 10.2Gbps video bandwidth
- Video resolution is up to 4K2K@30Hz
- HDMI signal transmission distance can be extended up to 230ft/70m for 1080p@60Hz resolution, and 131ft/40m for 4K2K@30Hz resolution via a single CAT6/6a cable
- HDMI audio formats: PCM7.1, Dolby True HD, DTS HD Master
- Support bi-directional PoC function
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4b |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Video Resolution | Up to 4K2K@30Hz |
| HDMI Audio Formats | LPCM 7.1CH, Dolby True HD, and DTS-HD Master |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit |
| Transmission Distance | 230ft / 70m (for 1080P@60Hz) over CAT 6/6a 131ft / 40m (for 4K2K@30Hz) over CAT 6/6a |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

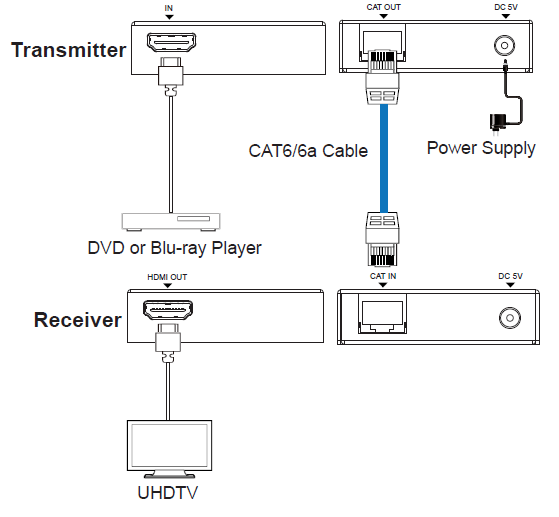

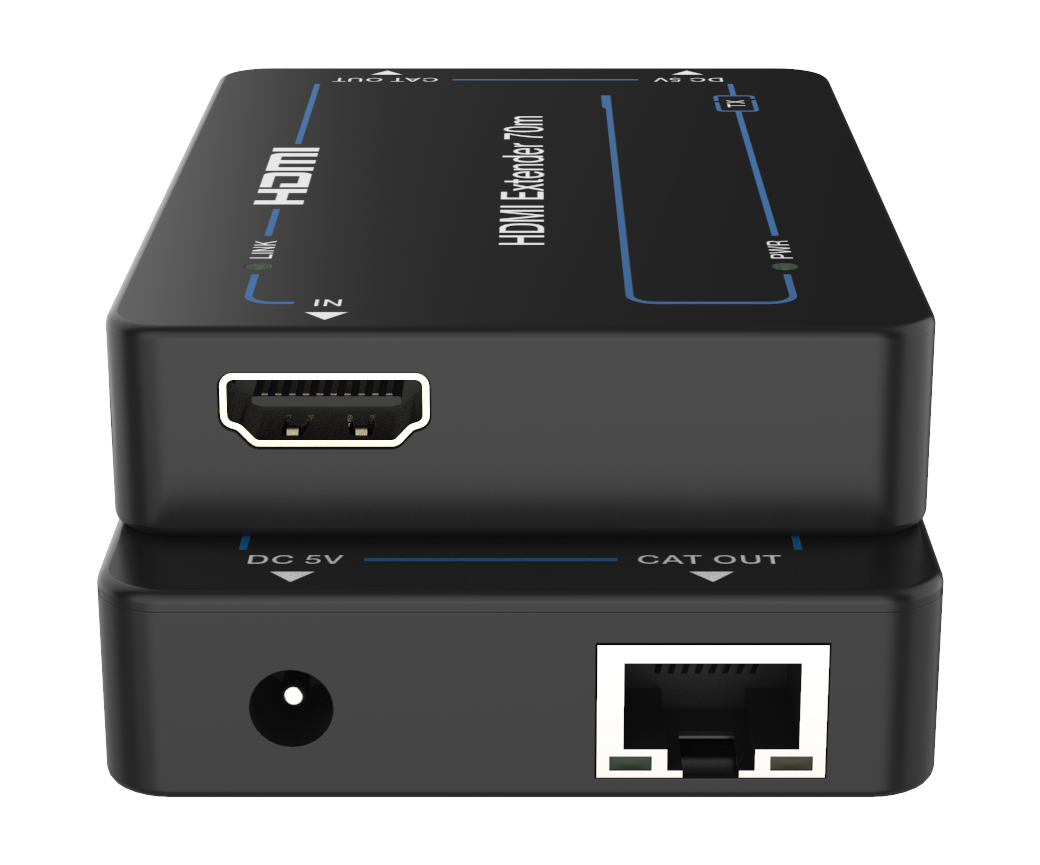

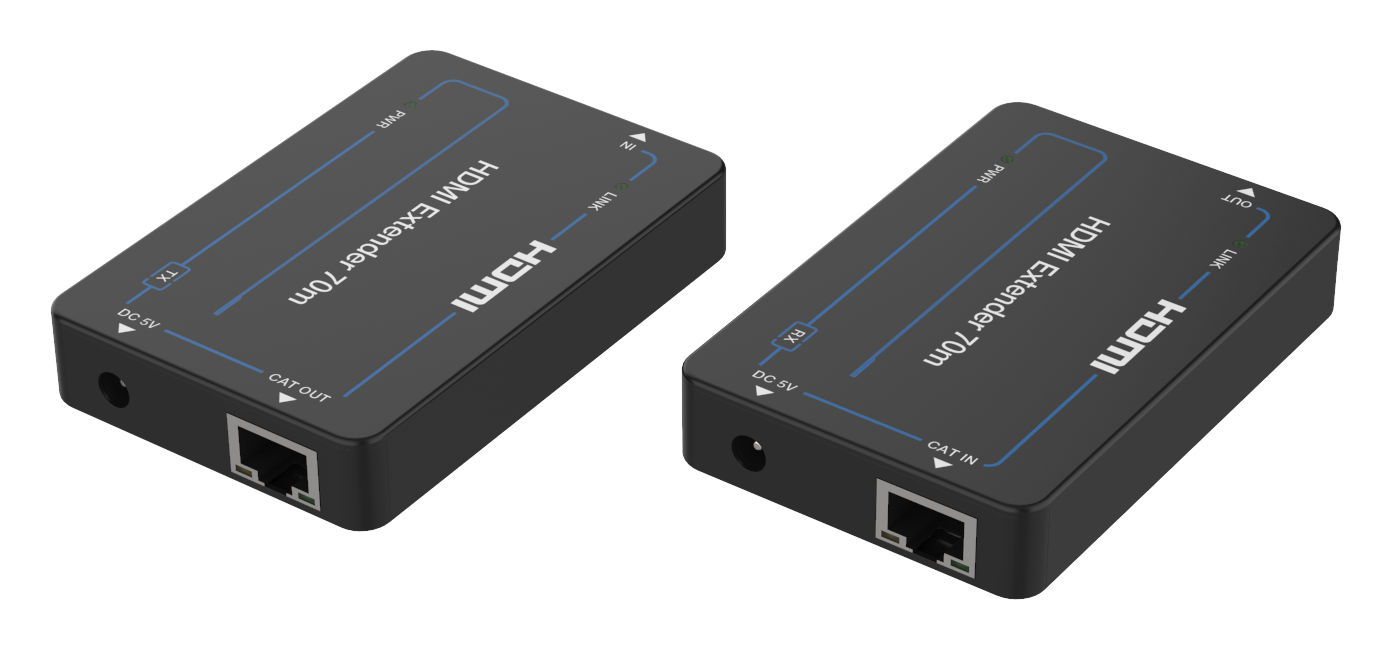

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] Output: 1x CAT OUT [RJ45 connector] |
| Receiver | Input: 1x CAT IN [RJ45 connector] Output: 1x HDMI OUT [Type A, 19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 90mm (W) x 60mm (D) x 16mm (H) |
| Weight | Transmitter: 46g, Receiver: 47g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 3.45W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is HDMI Extender (70m) for?
HDMI Extender (70m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-ED970EB?
MEPX-ED970EB is listed with: TX + RX · 70m; 4K; 70m class; HDMI 1.4b. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-ED970EB?
WhatsApp MEGRA with model MEPX-ED970EB, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-ED970EB?
This extender is listed at 70m on Cat or HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
