HDMI Extender (70m)
MEPX-ED970CP

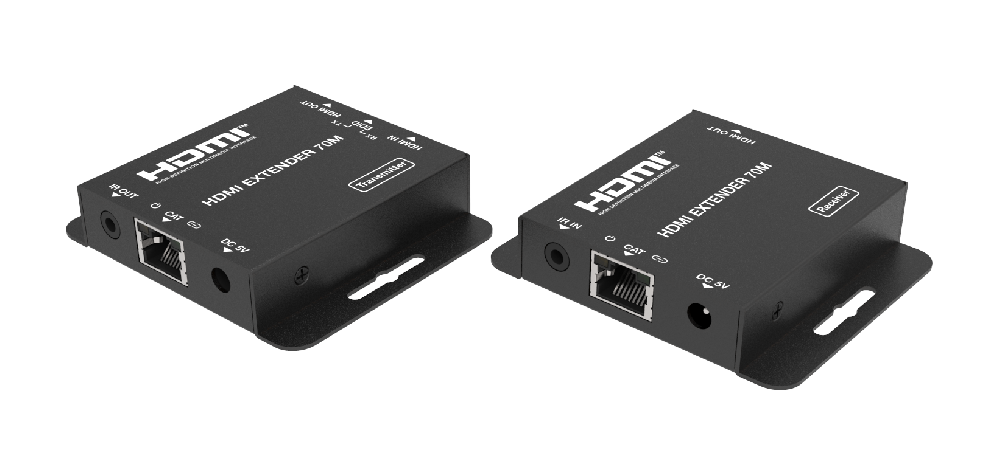

HDMI Extender (70m) (MEPX-ED970CP) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 4K; 70m class; HDMI 1.4.
- HDMI 1.4 and HDCP 1.4 compliant
- Support video resolution up to 4K@30Hz
- The maximum transmission distance via a single CAT6/5E cable is as follows:
- Support copying EDID from receiver display or loop out display
- Allow for cascading via additional HDMI loop out port
- Compact design for easy and flexible installation
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Video Resolution | Up to 4K@30Hz |
| Audio Support | Up to 7.1CH HD audio |
| Input TMDS Signal | 3.3 volts |
| Input DDC Signal | 5.0 volts/P-P |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

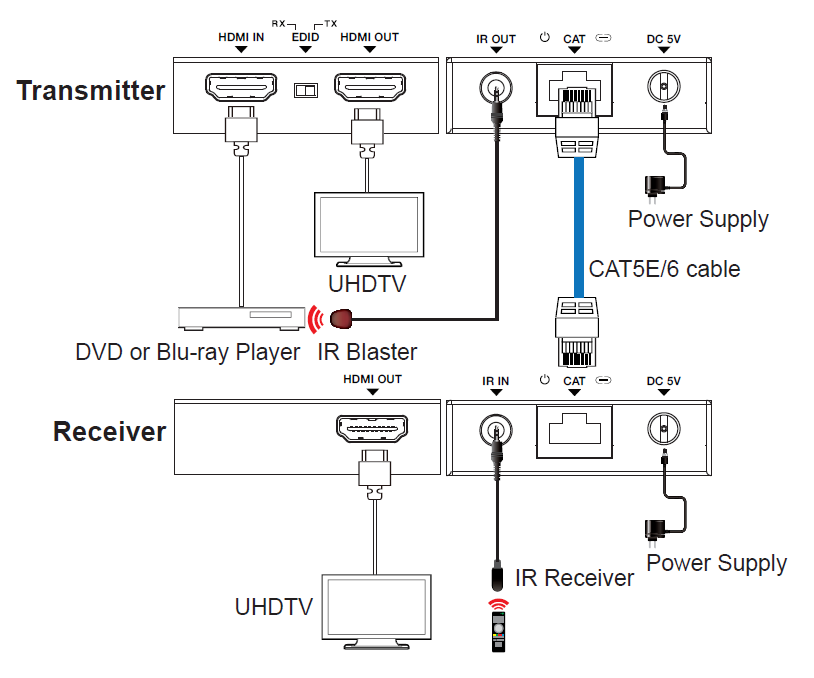

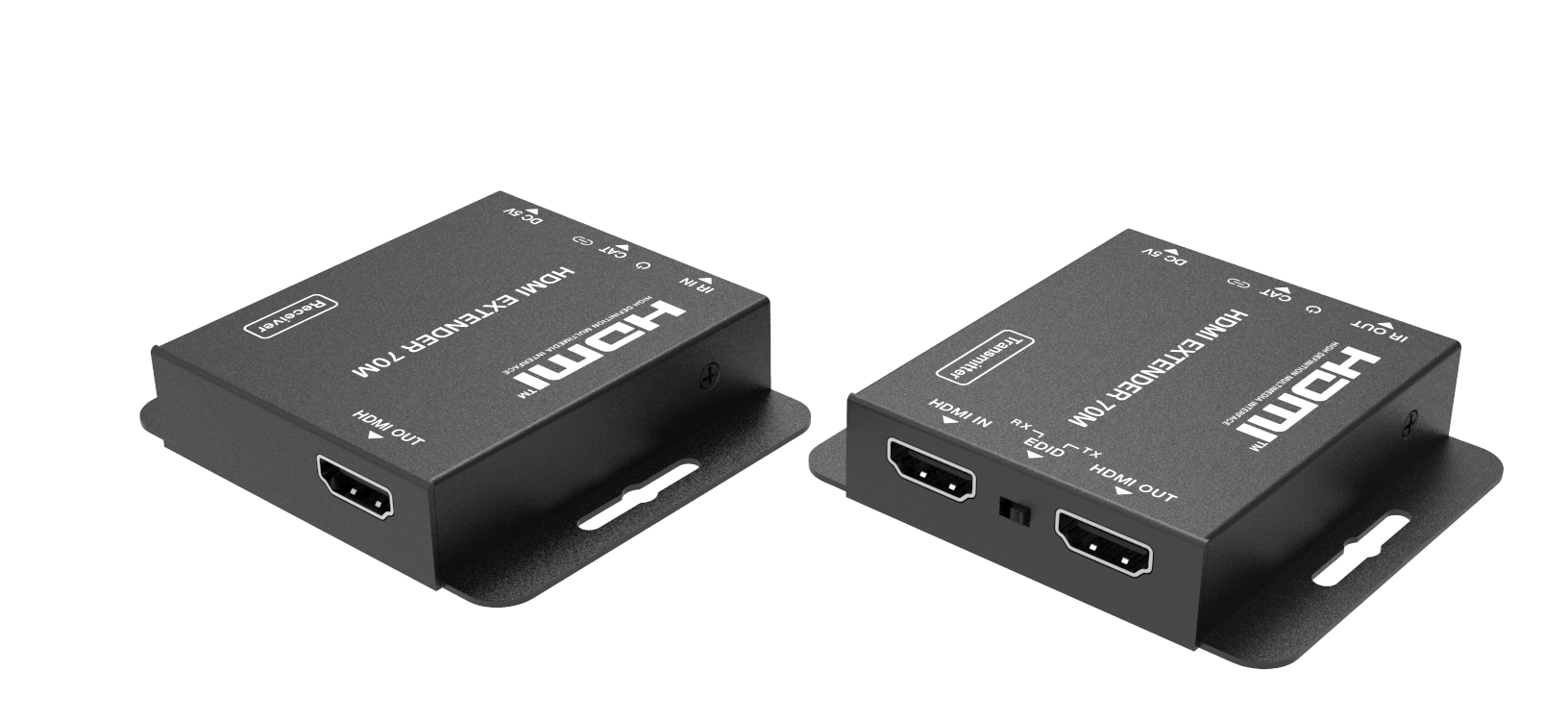

| Transmitter | Input: 1x HDMI Type A [19-pin female] Outputs:1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female] |

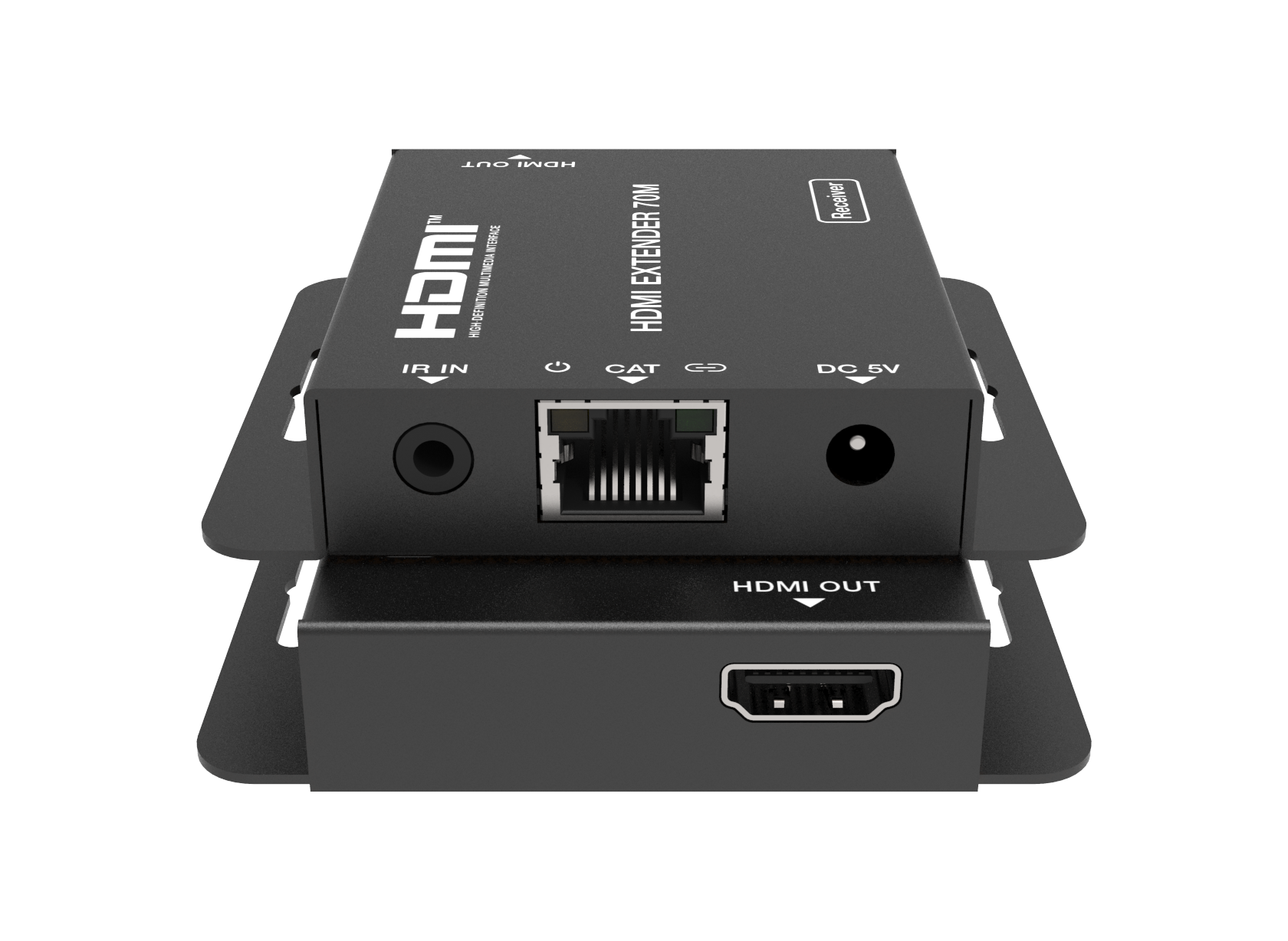

| Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 79.5mm[W] x 69mm[D] x 16.5mm[H] |
| Weight | Transmitter: 132g, Receiver: 130g |
| Power Supply | 5V/1A DC |
| Power Consumption | Transmitter: 1.86W, Receiver: 0.87W |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is HDMI Extender (70m) for?
HDMI Extender (70m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-ED970CP?
MEPX-ED970CP is listed with: TX + RX · 70m; 4K; 70m class; HDMI 1.4. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-ED970CP?
WhatsApp MEGRA with model MEPX-ED970CP, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-ED970CP?
This extender is listed at 70m on Cat or HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
