1080P HDMI Extender over CAT6 Cable (50m)
MEPX-ED850R2

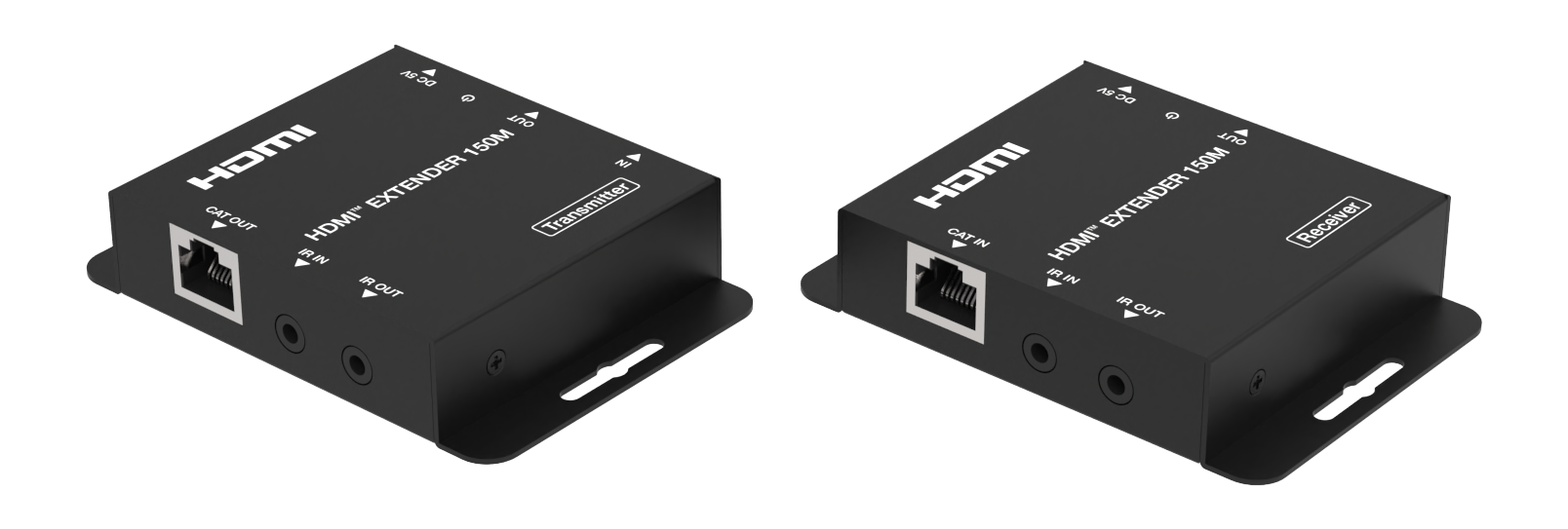

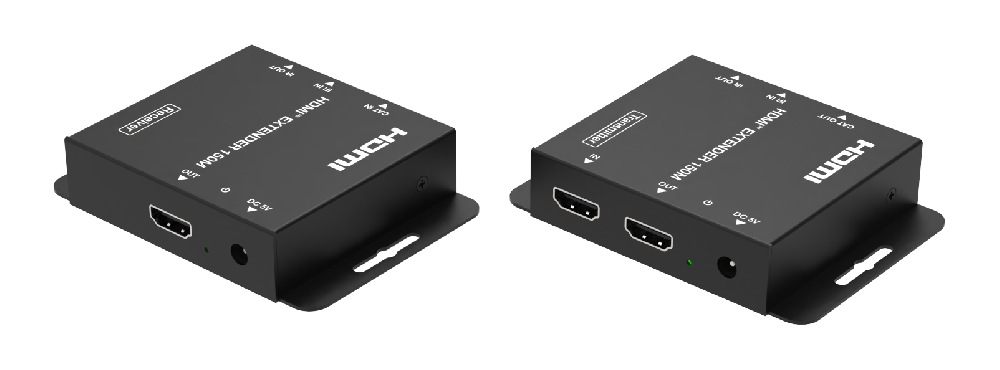

1080P HDMI Extender over CAT6 Cable (50m) (MEPX-ED850R2) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 50m; 50m class; HDMI 1.3; Up to 1080p@60Hz, 1920x1200@60Hz.
- Compliant with HDCP 1.4
- Video bandwidth is 4.95Gbps
- Video resolution is up to 1080p@60Hz, 1920x1200@60Hz, as specified in HDMI 1.3
- Transmission distance can be up to 50m/164ft over CAT6/6a cable
- Support EDID copy pass-through on source and sink end
- Support one-way PoC function (from Transmitter to Receiver)
For quote: model + client name + location
Specifications
| Specification | Technical |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 4.95Gbps |
| Video Resolution | Up to 1080p@60Hz, 1920x1200@60Hz |
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2 |
| Color Depth | 8-bit |
| Audio Formats | LPCM 2.0/5.1/7.1CH, DD, DD+, DTS, Dolby True HD and DTS-HD Master |
| Audio Sample Rate | 48KHz |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 50m/164ft for 1080p@60Hz over CAT6/6a cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connection | |

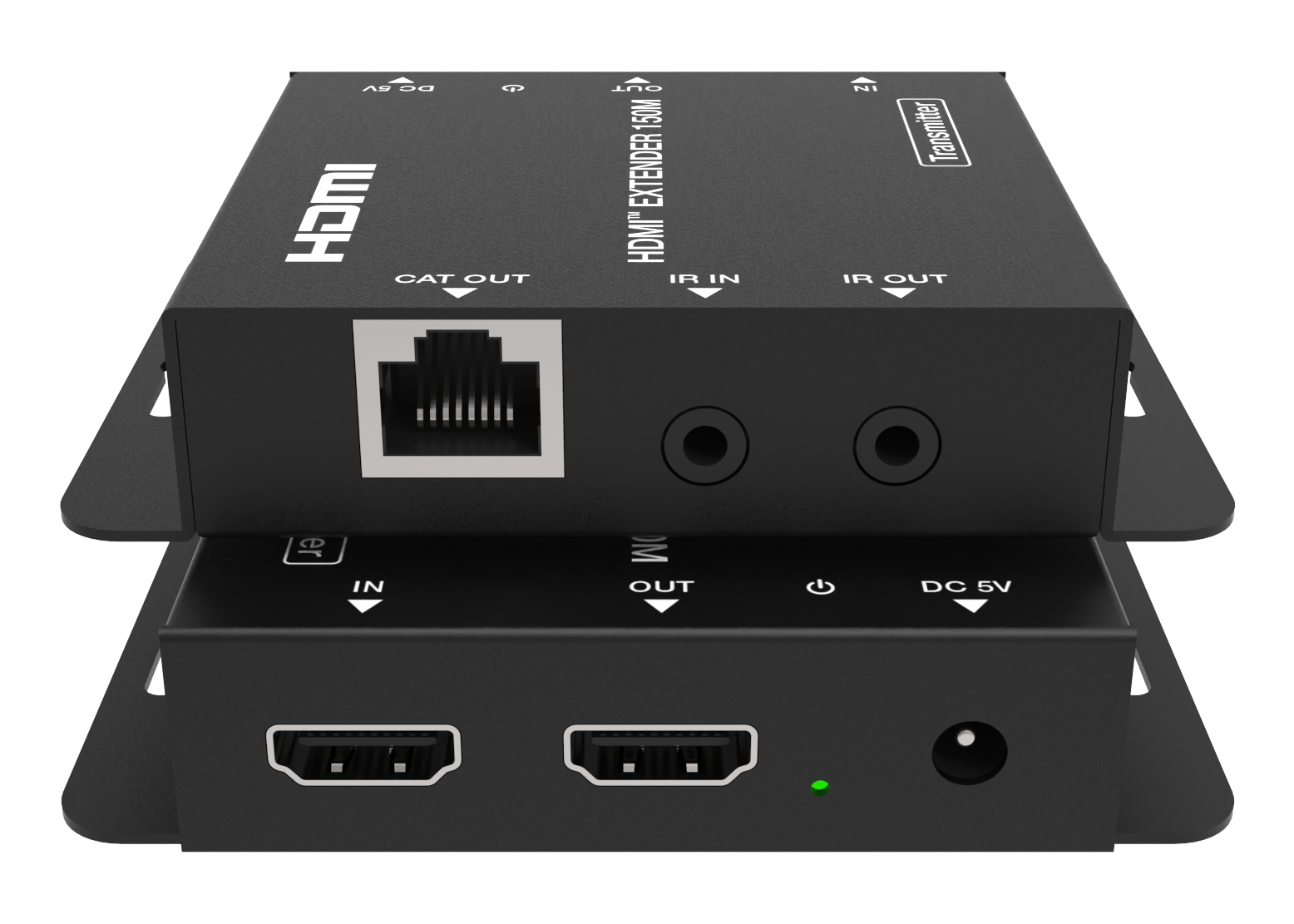

| Transmitter | Input: 1× IN [HDMI Type A, 19-pin female] 1× IR IN [3.5mm audio jack] Output: 1× OUT [HDMI Type A, 19-pin female] 1× IR OUT [3.5mm audio jack] 1× CAT OUT [RJ45] |

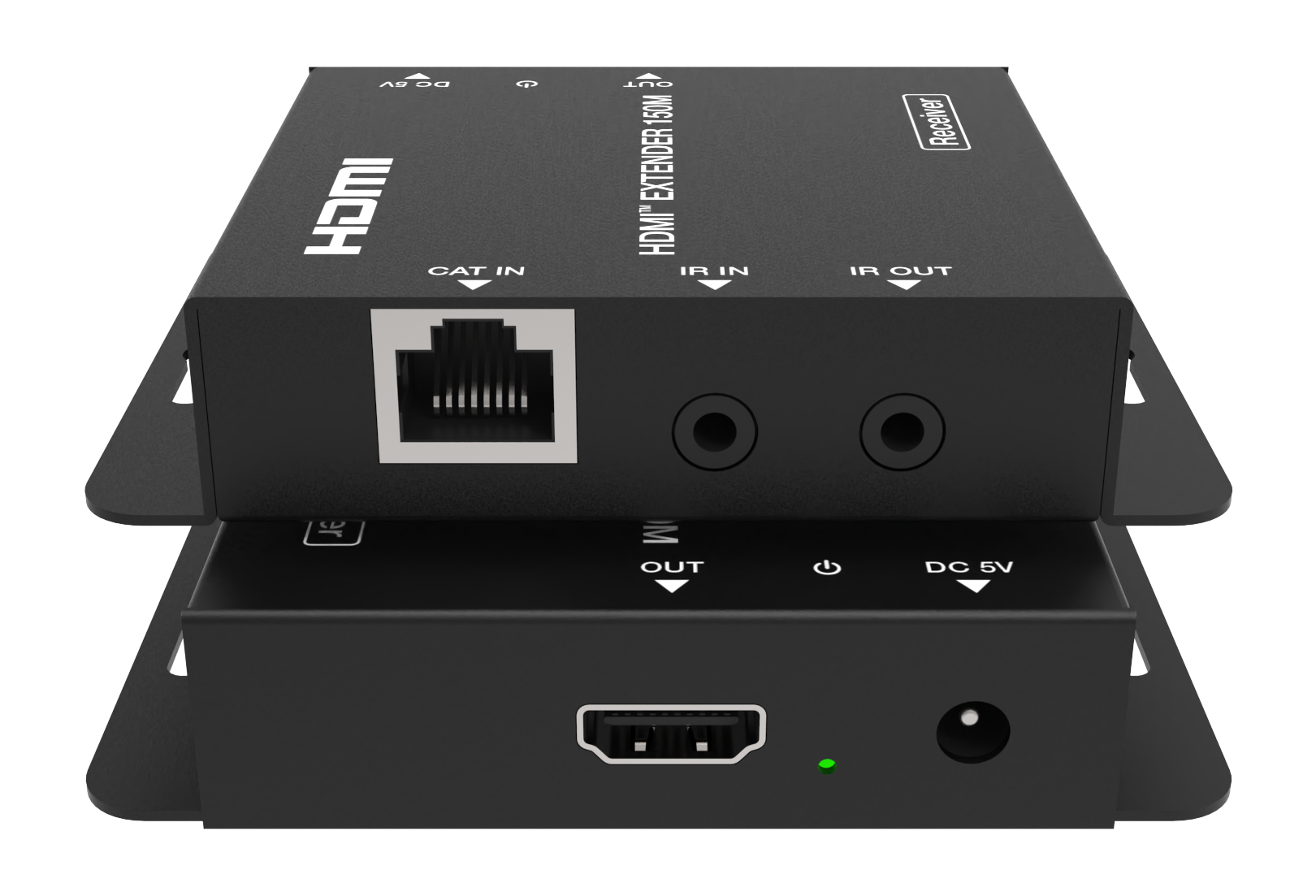

| Receiver | Input: 1× CAT IN [RJ45] 1× IR IN [3.5mm audio jack] Output: 1× HDMI OUT [Type A, 19-pin female] 1× IR OUT [3.5mm audio jack] |
| Mechnical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 74mm [W] × 68mm [D] × 20mm [H] |
| Weight | Transmitter: 168g; Receiver: 165g |
| Power Supply | DC 5V/1A |
| Power Consumption | Transmitter: 1.48W (Max); Receiver: 0.73W (Max) |
| Operating Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage Temperature | -4°F - 140°F / -20°C - 60°C |
| Operating Humidity | 20%~80% relative humidity, non-condensing |
| Storage Humidity | 10%~90% relative humidity, non-condensing |
Questions about this model
What job is 1080P HDMI Extender over CAT6 Cable (50m) for?
1080P HDMI Extender over CAT6 Cable (50m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-ED850R2?
MEPX-ED850R2 is listed with: TX + RX · 50m; 50m class; HDMI 1.3; Up to 1080p@60Hz, 1920x1200@60Hz. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-ED850R2?
WhatsApp MEGRA with model MEPX-ED850R2, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-ED850R2?
This extender is listed at 50m on Cat or HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
