HDBaseT Extender (70m)
MEPX-E70S

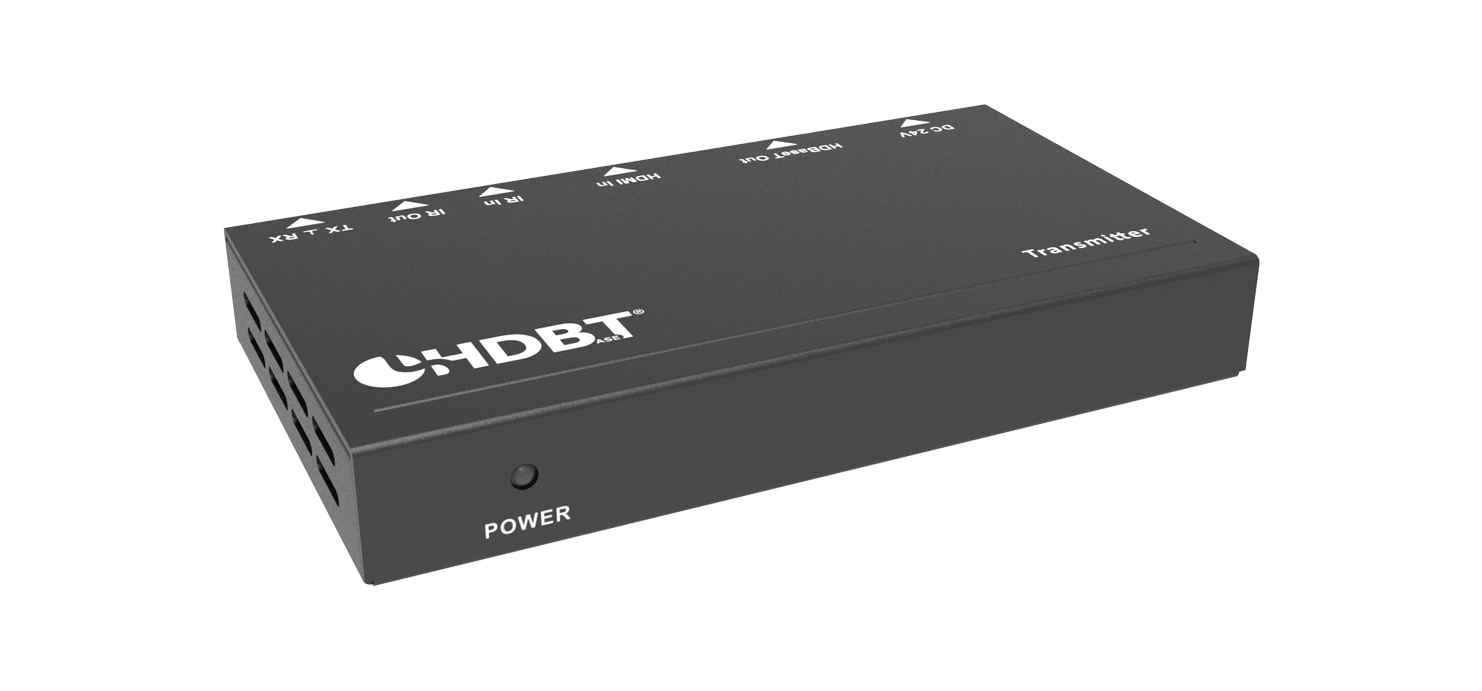

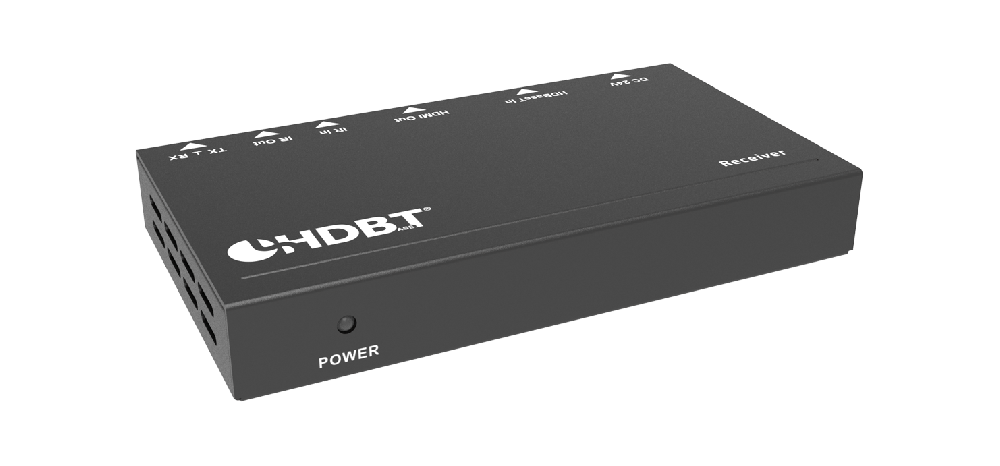

HDBaseT Extender (70m) (MEPX-E70S) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 70m; 70m class.
- POC (Power Over Cable) function is supported, either TX or RX is powered by24V@1A
- Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
- UTP termination follows the standard of direct interconnection method.
- Transmission distance: ※Over CAT6 cable
- Support display resolutions up to 4K x 2K@30Hz
- Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
For quote: model + client name + location
Specifications
| Technical | |
| Frequency Bandwidth | 297MHz[10.2Gbps] |

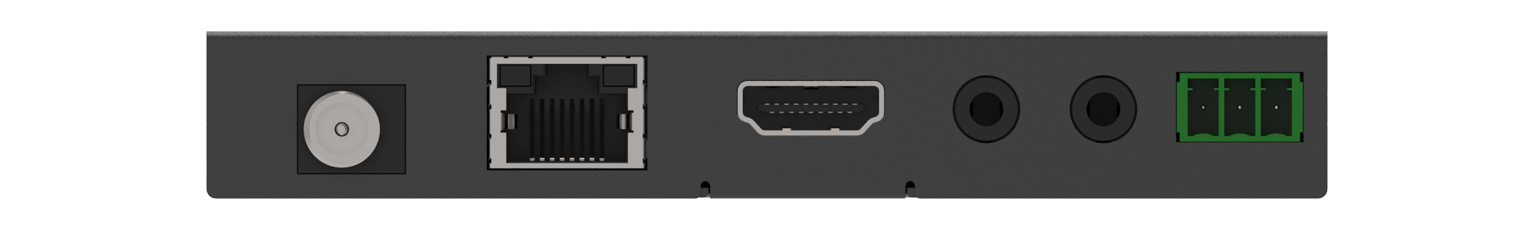

| Transmitter Input/Output | 1x HDMI Female port/1xCAT6 1x IR Tx/1x IR Rx/1xPhoenix |

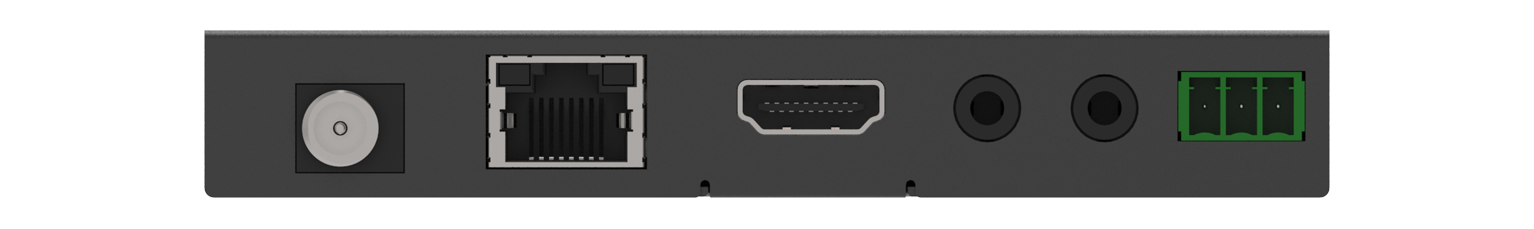

| Receiver Input/Output Ports | 1x HDMI Female port/1xCAT6 1x IR Tx/1x IR Rx/1xPhoenix |
| Power Supply | DC 24V 1A |
| ESD Protection | Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
| Dimensions (mm) | 65[W] x 115 [D] x 17 [H] |
| Weight | 200g x 2 |
| Operating Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage Temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20~90% RH (Non-condensing) |
| Power Consumption | 20W (Max) |
Questions about this model
What job is HDBaseT Extender (70m) for?
HDBaseT Extender (70m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-E70S?
MEPX-E70S is listed with: TX + RX · 70m; 70m class. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-E70S?
WhatsApp MEGRA with model MEPX-E70S, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-E70S?
This extender is listed at 70m on HDBaseT. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
