HDMI Wireless Extender (100m)
MEPX-E5200W
HDMI Wireless Extender (100m) (MEPX-E5200W) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 100m; 100m class; HDMI 1.3; Input: Up to 1920×1080@60Hz Output: Up to 1080P@60Hz.
- HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant

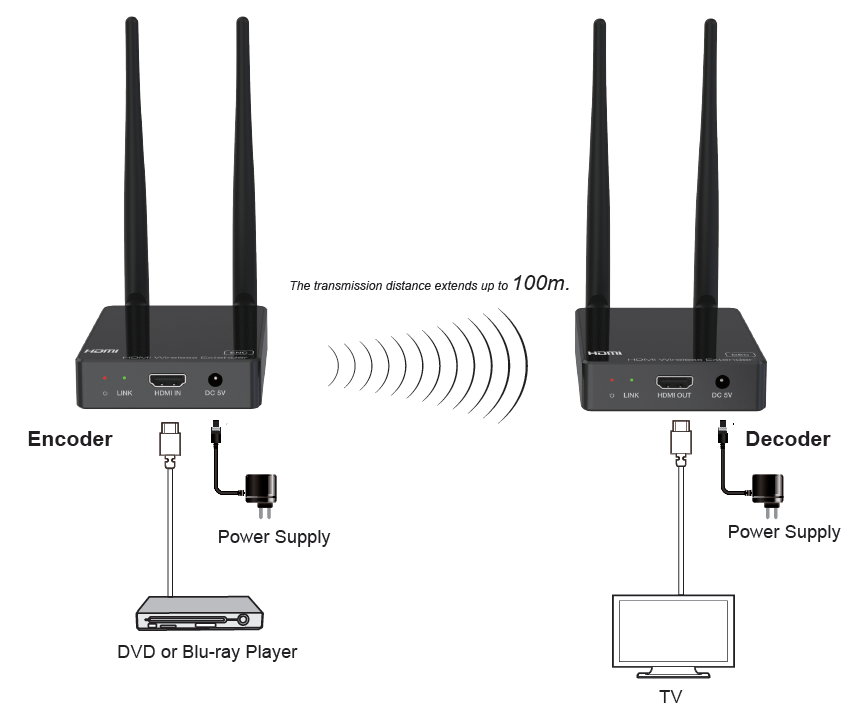

- Transmit one HDMI HD source signal to one HDMI HD display via wireless technology
- With one-way IR control
- Input video resolution is up to 1920×1080@60Hz YCbCr 4:4:4; Output video resolution is up to 1080P@60Hz YCbCr 4:4:4
- HDMI wireless transmission distance up to 330ft/100m. (In an open environment without Wi-Fi interference.)
- Supported HDMI audio formats:
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| USB Version | HDCP 1.4 |
| Video Bandwidth | 4.95Gbps |
| Video Resolution | Input: Up to 1920×1080@60Hz Output: Up to 1080P@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 |
| Color Depth | 8/10/12-bit (1080P@60Hz) |
| HDMI Audio Formats | Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz/ 88.2KHz/96KHz/176.4KHz/192KHz Output: LPCM 2.0CH 48KHz |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

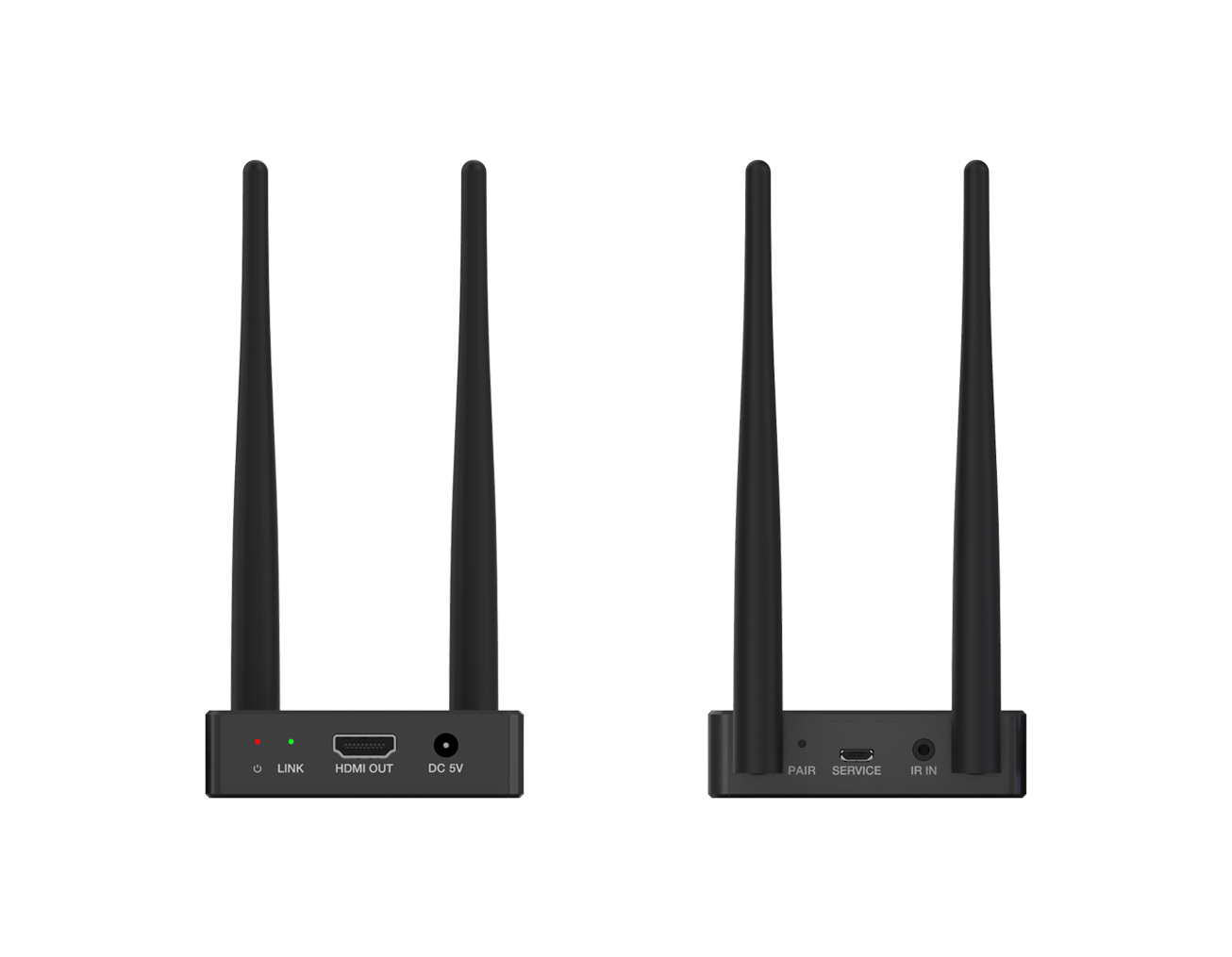

| Encoder | Inputs: 1x HDMI IN [Type A, 19-pin female] Outputs: 1x IR OUT [3.5mm Stereo Mini-jack] 2x WiFi OUT [WiFi antenna] Control: 1x SERVICE [Micro USB, Update port] |
| Decoder | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 2x WiFi IN [WiFi antenna] Outputs: 1x HDMI OUT [Type A, 19-pin female] Control: 1x SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | Encoder / Decoder: 76mm [W] x 98mm [D] x 21mm [H] |
| Weight | Encoder / Decoder: 100g |
| Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 5V/2A |
| Power Consumption | Encoder: 3.5W, Decoder: 2.6W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Resolution / Cable Length | 1080P60Hz - Feet / Meters |
| HDMI IN / OUT | 42ft / 15M |
Questions about this model
What job is HDMI Wireless Extender (100m) for?
HDMI Wireless Extender (100m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-E5200W?
MEPX-E5200W is listed with: TX + RX · 100m; 100m class; HDMI 1.3; Input: Up to 1920×1080@60Hz Output: Up to 1080P@60Hz. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-E5200W?
WhatsApp MEGRA with model MEPX-E5200W, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-E5200W?
This extender is listed at 100m on wireless. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
