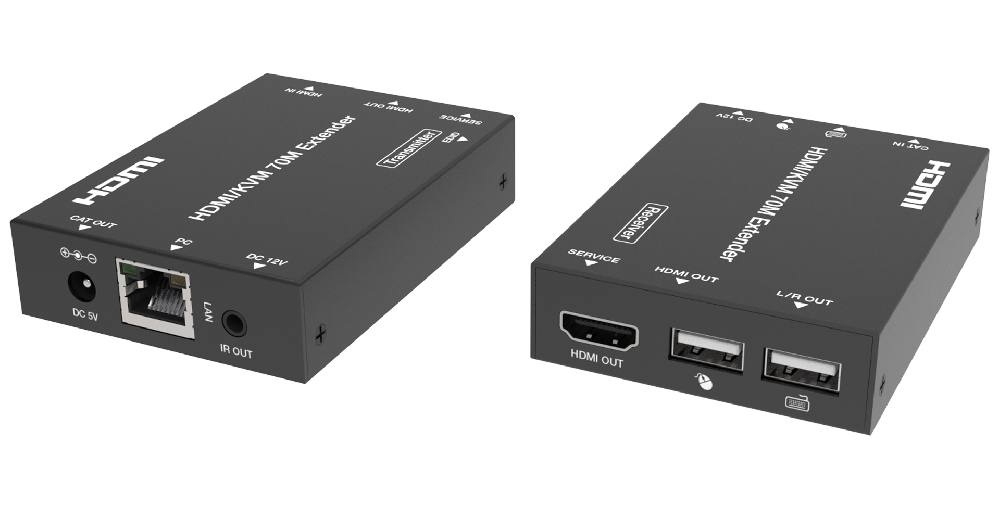

HDMI IP KVM Extender (150m)
MEPX-E5200K
HDMI IP KVM Extender (150m) (MEPX-E5200K) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 150m; 150m class; HDCP 1.4; Input: Up to 1920x1200@60Hz Output: Up to 1080P@60Hz.
- HDCP 1.4 compliant
- Support 6.75Gbps video bandwidth
- Input video resolution is up to 1920×1200@60Hz YCbCr 4:4:4
- Extend transmission distance up to 150m/492ft between encoder and decoder via a single Cat5e/6 cable
- Adopt standard H.265 encoding / decoding
- Support 1G standard IP swticher / router / hub
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDCP 1.4 |
| USB Version | USB 1.1 |
| Video Bandwidth | 6.75Gbps |
| Video Resolution | Input: Up to 1920x1200@60Hz Output: Up to 1080P@60Hz |
| HDMI Audio Formats | Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz Output: LPCM 2.0CH 48KHz |
| IR Frequency | 20Hz - 60KHz |
| Compression Technology | H.265 |
| Request for Switcher /Router | Support 1 GMP, Support DHCP |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8/10/12-bit |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |

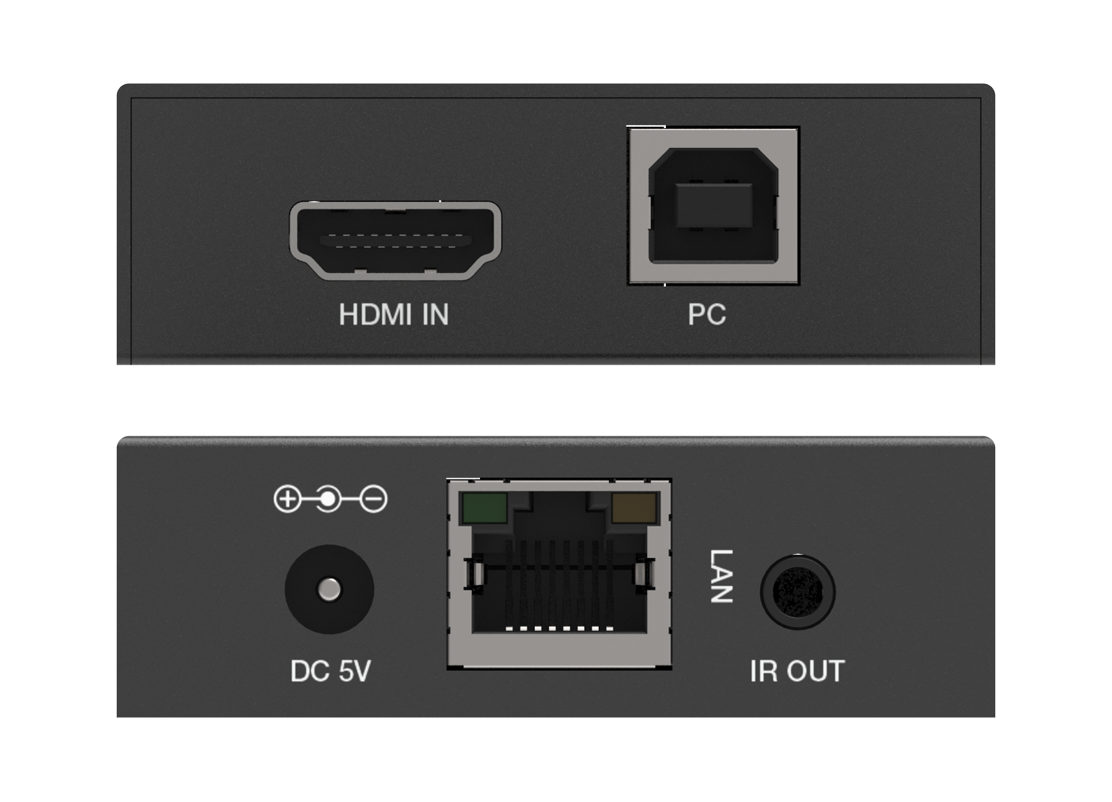

| Encoder | Inputs: 1x HDMI IN [Type A, 19-pin female] Outputs: 1x LAN [RJ45 connector] Control: 1x IR OUT [3.5mm Stereo Mini-jack] 1x USB [USB-B, female] |
| Decoder | Inputs: 1x LAN [RJ45 connector] Outputs: 1x HDMI OUT [Type A, 19-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 2x USB [USB-A, female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 67mm (W) x 91.5mm (D) x 17.5mm (H) |
| Weight | Encoder: 155g, Decoder: 150g |
| Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 5V/1A |
| Power Consumption | Encoder: 2.9W, Decoder: 3.65W (Max) |
| Operation Temperature | 14°F - 122°F / -10°C - 50°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Resolution / Distance | 1920x1200@60Hz - Feet / Meter |
| CAT 5e/6 cable | 492ft / 150 meters |
| Resolution / Cable length | 1920x1200@60Hz - Feet / Meter |
| HDMI IN / OUT | 50ft / 15 meters |
Questions about this model
What job is HDMI IP KVM Extender (150m) for?
HDMI IP KVM Extender (150m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-E5200K?
MEPX-E5200K is listed with: TX + RX · 150m; 150m class; HDCP 1.4; Input: Up to 1920x1200@60Hz Output: Up to 1080P@60Hz. Full connections are in the specification table on this page.
When do I choose this KVM extender instead of a video-only extender or a long HDMI cable?
MEPX-E5200K is listed as a KVM extender — video plus keyboard/mouse on the published link. A video-only extender does not add USB KVM. A long HDMI cable is only for a short local run.
What should I send for a correct quote on MEPX-E5200K?
WhatsApp MEGRA with model MEPX-E5200K, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-E5200K?
This extender is listed at 150m on KVM over the listed link. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
