HDMI IP Extender (150m)
MEPX-E5200EB
HDMI IP Extender (150m) (MEPX-E5200EB) is a MEGRA MATRIX extender — a transmitter and receiver pair for runs past typical HDMI copper.
It is for rooms where the display sits farther than a standard HDMI cable can run — racks to walls, lecterns to projectors, and plant rooms to monitoring walls.
Key facts from this model: TX + RX · 150m; 150m class; HDMI 1.3.
- HDMI 1.3 and HDCP 1.4 compliant
- Support 148.5MHz video bandwidth
- Video resolution is up to 1920×1080@60Hz
- Signal transmission distance up to 150m/492ft via a single CAT5e/6 cable
- Adopt standard H.265 encoding & decoding technology

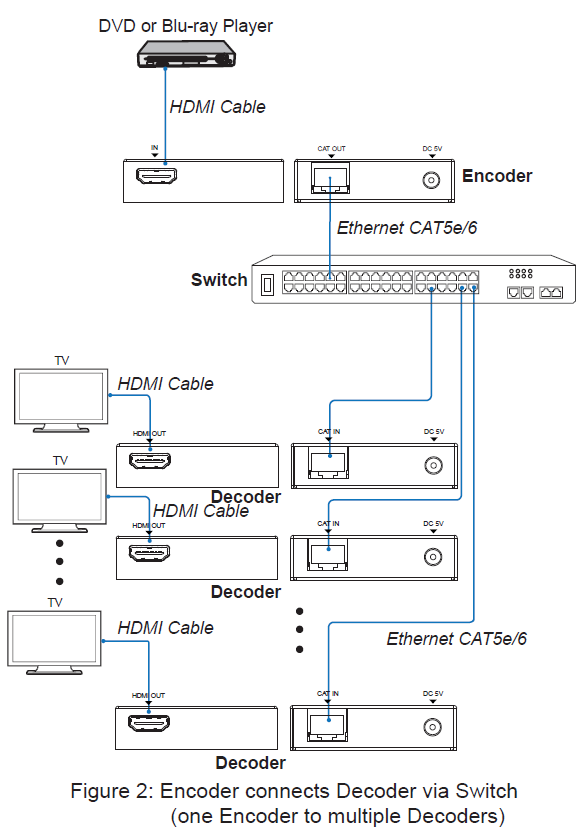

- Support 1G standard IP Swtich/router/hub
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| USB Version | HDCP 1.4 |
| Video Bandwidth | 148.5MHz |
| Video Resolution | Input: Up to 1920x1200@60Hz Output: Up to 1920x1080@60Hz |
| HDMI Audio Formats | LPCM 2.0CH, 32KHz/44.1KHz/48KHz |
| Compression Technology | H.265 |
| Video Network Bandwidth | 1G |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 |
| Color Depth | Input: 8/10/12-bit Output: 8bit |
| Transmission Distance | 150m/492ft (via a single CAT5e/6 cable) |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Encoder | Input: 1x HDMI IN [Type A, 19-pin female] Output: 1x CAT OUT [RJ45 connector] |
| Decoder | Input: 1x CAT IN [RJ45 connector] Output: 1x HDMI OUT [Type A, 19-pin female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 90mm (W) x 60mm (D) x 16mm (H) |
| Weight | Encoder: 51g, Decoder: 52g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Encoder: 1.7W, Decoder: 1.2W |
| Operation Temperature | 14°F - 122°F / -10°C - 50°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is HDMI IP Extender (150m) for?
HDMI IP Extender (150m) is a MEGRA MATRIX extender — a transmitter and receiver pair that carries the signal past a typical HDMI copper run.
What are the key facts and limits of MEPX-E5200EB?
MEPX-E5200EB is listed with: TX + RX · 150m; 150m class; HDMI 1.3. Full connections are in the specification table on this page.
When should I choose an extender instead of a matrix, splitter, or long cable?
Choose an extender when one source must reach one distant display past a practical copper HDMI run — a transmitter and receiver pair. A matrix routes many-to-many in the rack. A splitter copies one picture to many displays. A switcher selects sources for one local screen. An active optical cable is a single cable, not a TX/RX kit. A converter does not add distance.
What should I send for a correct quote on MEPX-E5200EB?
WhatsApp MEGRA with model MEPX-E5200EB, the client name, and the location. Add room type and I/O or run length if you already know them.
What distance class is MEPX-E5200EB?
This extender is listed at 150m on IP. That figure is the published class on this page — confirm cable type and resolution on WhatsApp.
