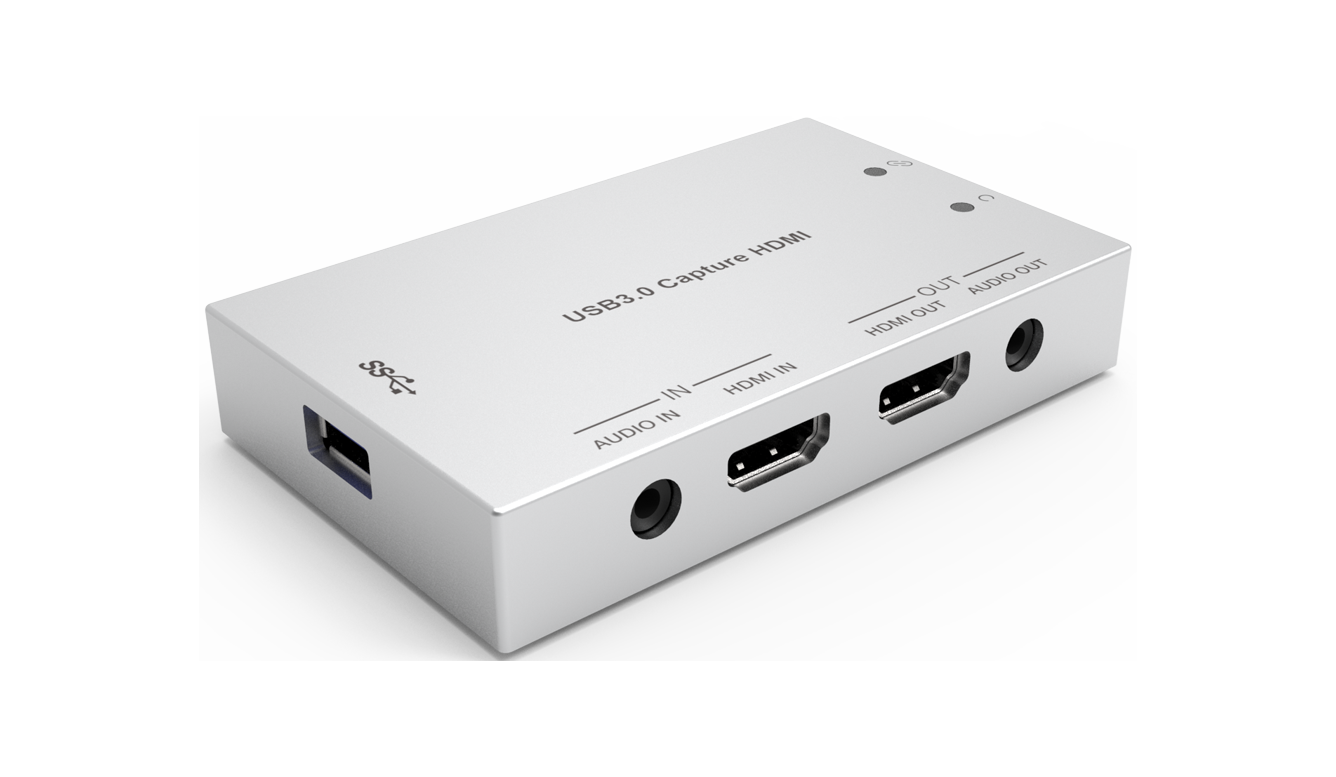

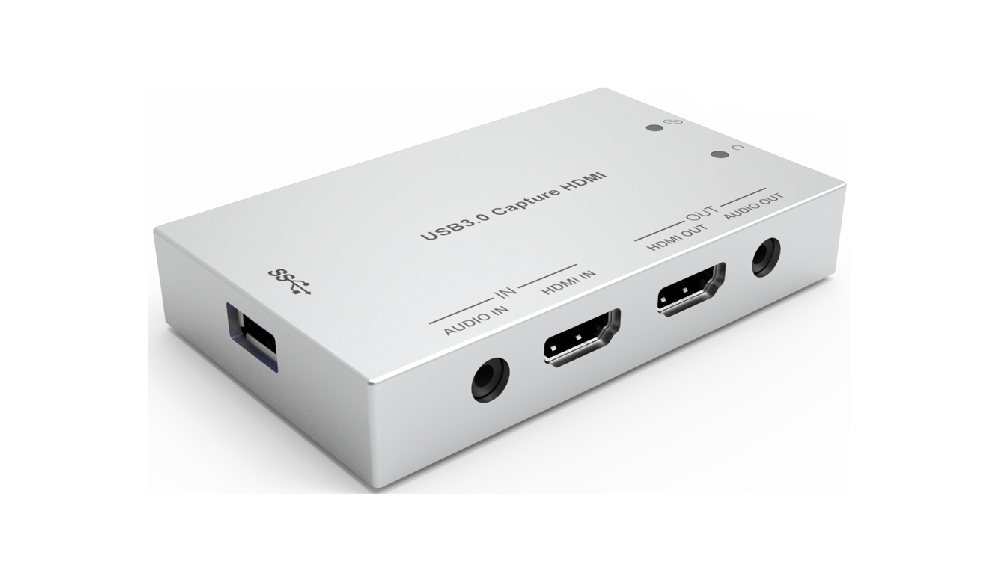

HDMI to USB3.0 Capture (Analog Audio In)
MCVT-UH60P
HDMI to USB3.0 Capture (Analog Audio In) (MCVT-UH60P) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 1 out; 4K.

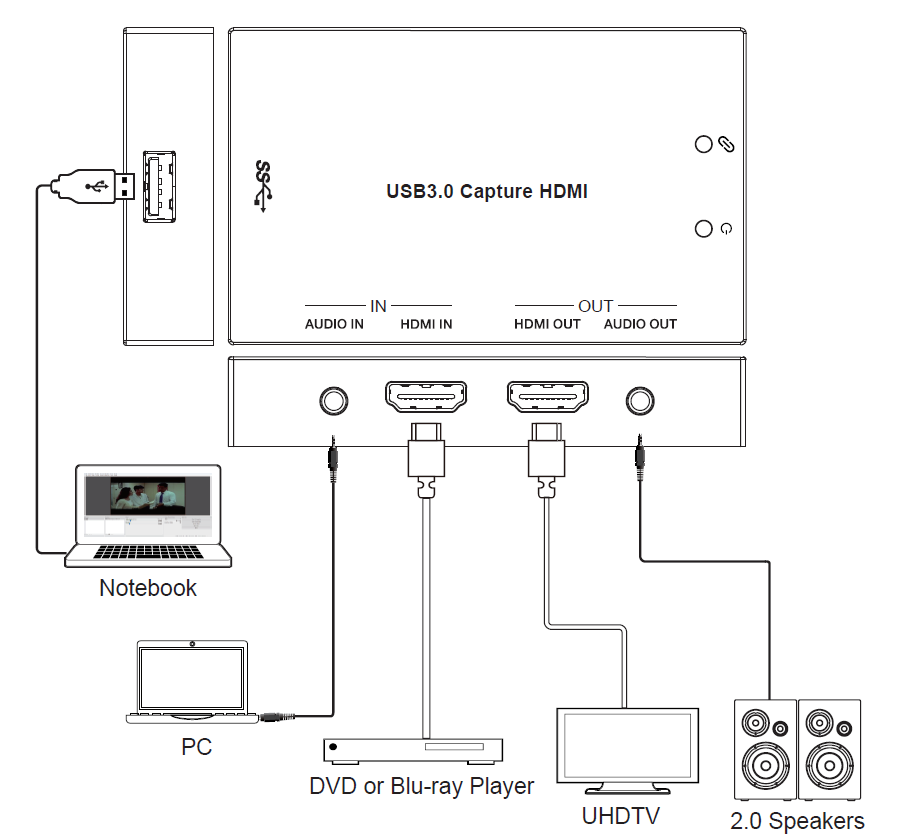

- Supports HDMI video input capture and HDMI loop output.
- Supports resolution 480i~1080p60Hz format video capture.
- Supports resolution 4K2K@60Hz (Down Scaler)->1080p60Hz video capture. (Attention: 4K2K@50/60Hz 4:2:2 resolution not supported down scaler function.)
- HDMI input and HDMI loop output supports HDMI 2.0, HDCP 2.2, resolution the maximum up to 4K2K@60Hz(4:4:4).
- Supports analog stereo audio input. (Double audio inputs selected to capture audio.)
- Supports analog stereo audio extract output from HDMI source.
For quote: model + client name + location
Specifications
| Technical | |
| Input ports | 1x HDMI IN [19-pin female] 1x AUDIO IN [3.5mm Stereo Mini-jack] |
| Output ports | 1x USB [USB Type A, USB3.0—300~350MB/s] 1x HDMI OUT [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] |
| HDMI input resolution | Up to 4k2k@60(4:4:4) (Attention: 4k2k@50/60Hz 4:2:2 not supported down scaler function.) |
| HDMI output capture resolution | 640x360, 640x480, 720x480, 720x576, 800x600, 856x480, 960x540, 1024x576, 1024x768, 1280x720, 1280x800, 1368x768, 1440x900, 1280x1024, 1280x960, 1600x1200, 1680x1050, 1920x1080 |
| HDMI loop out resolution | Up to 4k2k@60(4:4:4) |
| Frame Rate | 25/29.97/30/50/59.94/60fps |
| Audio and video capture | UVC (USB video class) and UAC (USB audio class) standard |
| Supports OS | Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above) |
| Software compatibility | OBS (Windows), Windows Media Encoder(Windows), Adobe Flash Media Live Encoder (Windows, OS X), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and Potplayer (Windows) etc. |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Silvery |
| Dimension | 98mm [W] x 60mm [D] x 17mm [H] |
| Weight | 125g |
| Power Consumption | 3.4W |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (Non-condensing) |
Questions about this model
What job is HDMI to USB3.0 Capture (Analog Audio In) for?
HDMI to USB3.0 Capture (Analog Audio In) is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-UH60P?
MCVT-UH60P is listed with: 1 in / 1 out; 4K. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-UH60P?
WhatsApp MEGRA with model MCVT-UH60P, the client name, and the location. Add room type and I/O or run length if you already know them.
What does MCVT-UH60P convert?
The title lists HDMI to USB3.0 Capture (Analog Audio In). That is the format bridge for this SKU. Confirm resolution on the specification table.
