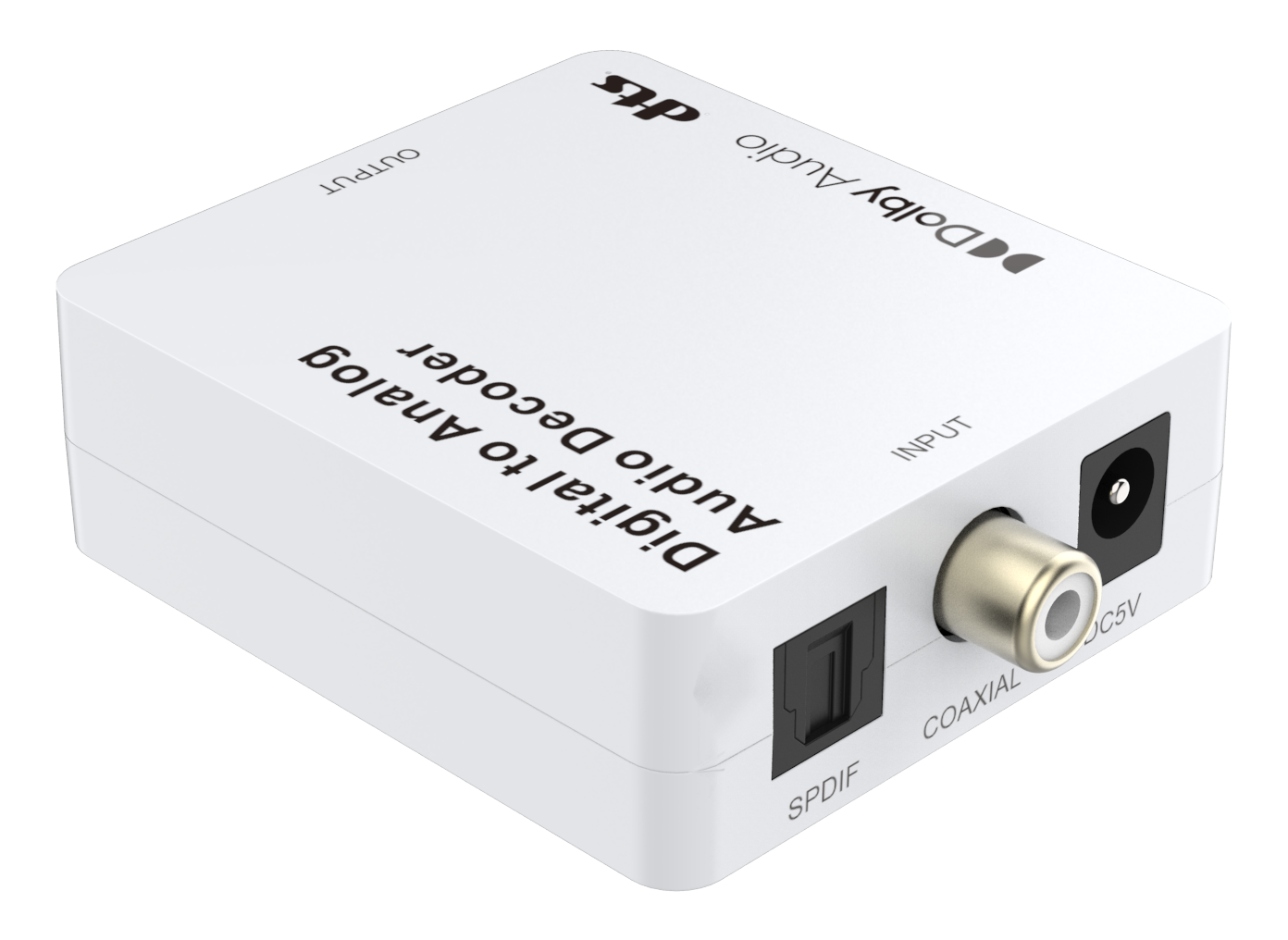

Digital Audio Decoder
MCVT-212

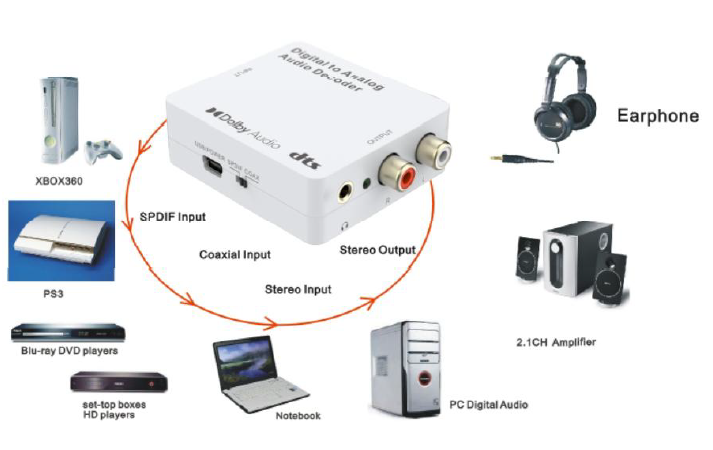

Digital Audio Decoder (MCVT-212) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 1 out.
- Decode Dolby Digital (AC3), DTS or PCM digital audio to stereo audio output.
- Support PCM 32KHz.44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz sample frequency audio decode.
- Support Dolby Digital 5.1 channels, DTS-ES6.1 channels audio decode.
- No need to install drivers. Portable, flexible, plug and play.
For quote: model + client name + location
Specifications

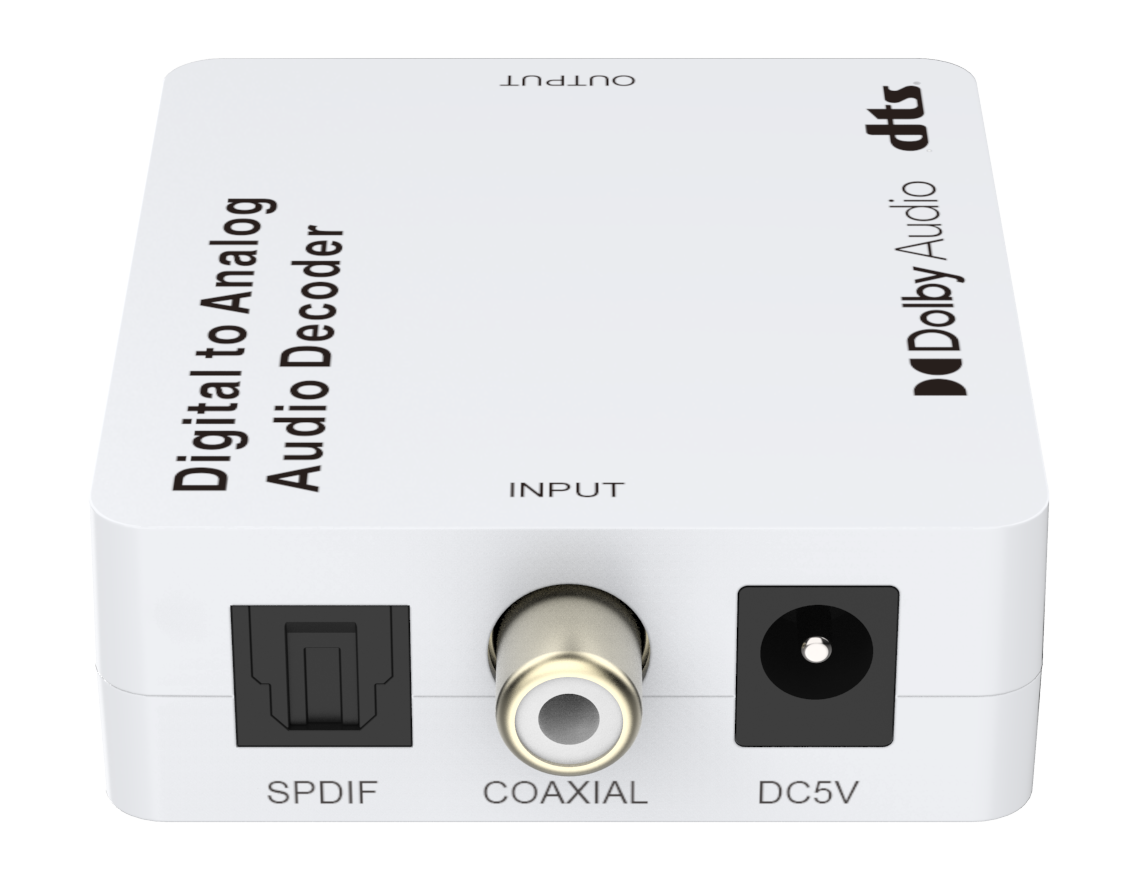

| Input Ports | 1 x Optical (Toslink), 1 x Digital Coaxial |
| Output Ports | 1 x RCA (L/R), 1 x 3.5mm (Headphone) |
| Signal to Noise Ratio | 103db |
| Degree of Separation | 95db |
| Frequency Response | (20Hz ~ 20KHz) +/- 0.5db |
| Dimensions | 72mm(D)x55mm(W)x20mm(H) |
| Weight | 40g |
Questions about this model
What job is Digital Audio Decoder for?
Digital Audio Decoder is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-212?
MCVT-212 is listed with: 1 in / 1 out. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-212?
WhatsApp MEGRA with model MCVT-212, the client name, and the location. Add room type and I/O or run length if you already know them.
What still needs confirming for MCVT-212?
Send the source type and the destination type on WhatsApp, plus the model code, so the format match can be checked against this sheet.
