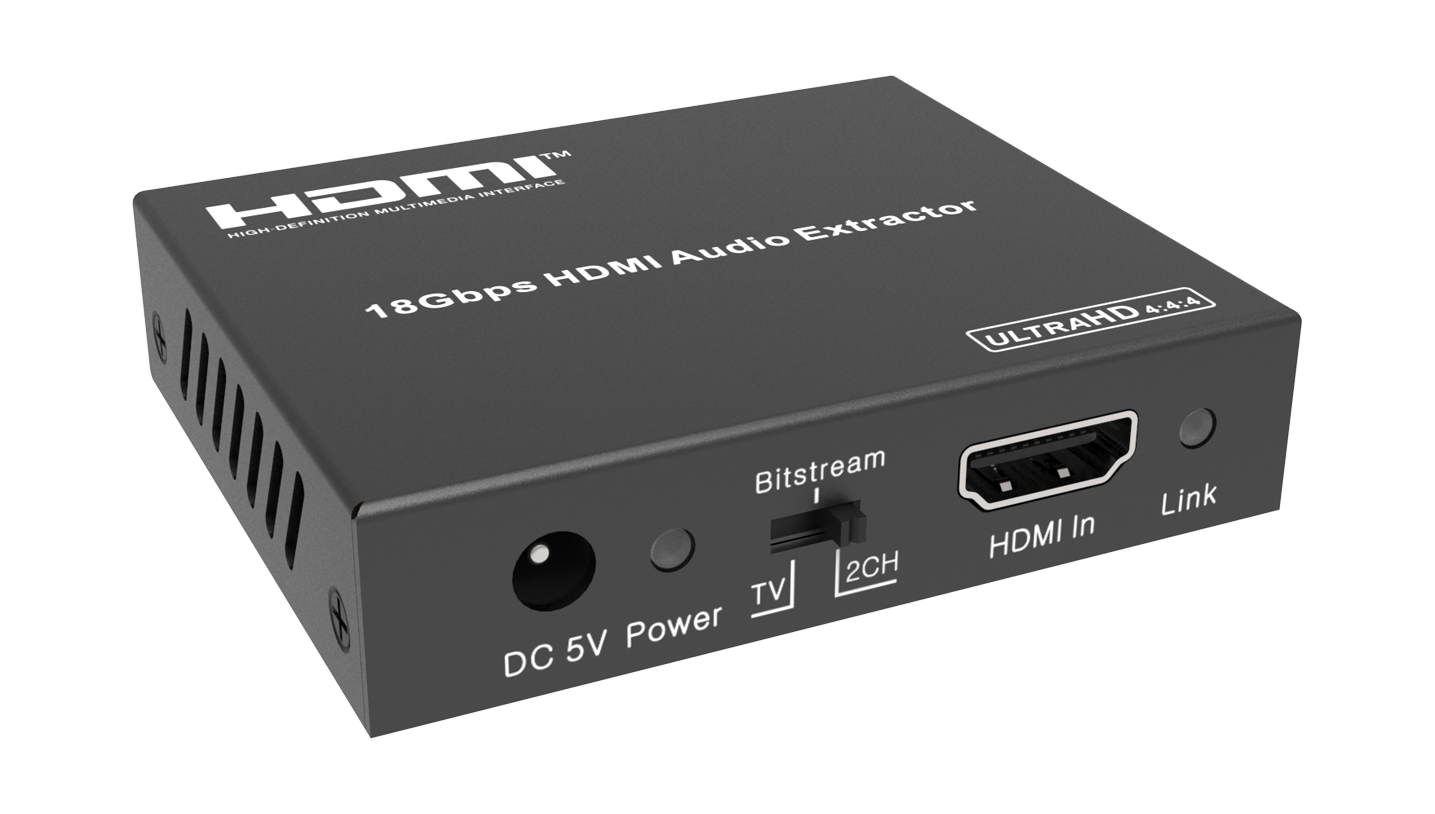

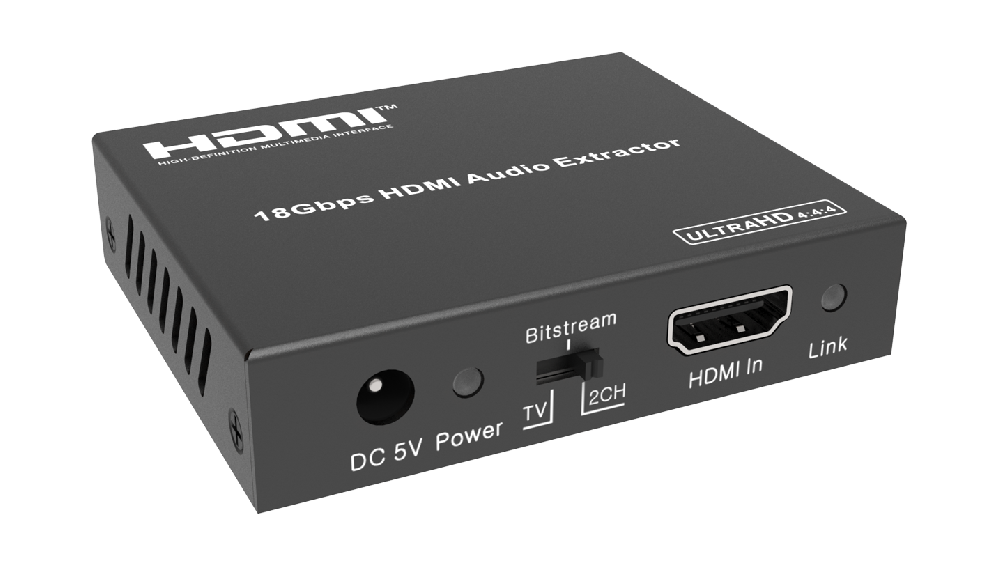

4K60 HDMI Audio Extractor
MCVT-MB01
4K60 HDMI Audio Extractor (MCVT-MB01) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 1 out; 4K60.
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
- Supports HDMI High Bit Rats(HBR) audio pass through
- Audio sample rates up to 192kHz
For quote: model + client name + location
Specifications
| Technical | |
| HDCP Compliance | HDCP2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1 CH, Dolby Digital, DTS5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH |
| L/R Audio Formats | Analog Stereo 2CH |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Input | 1 x HDMI TypeA[19-pin female] |

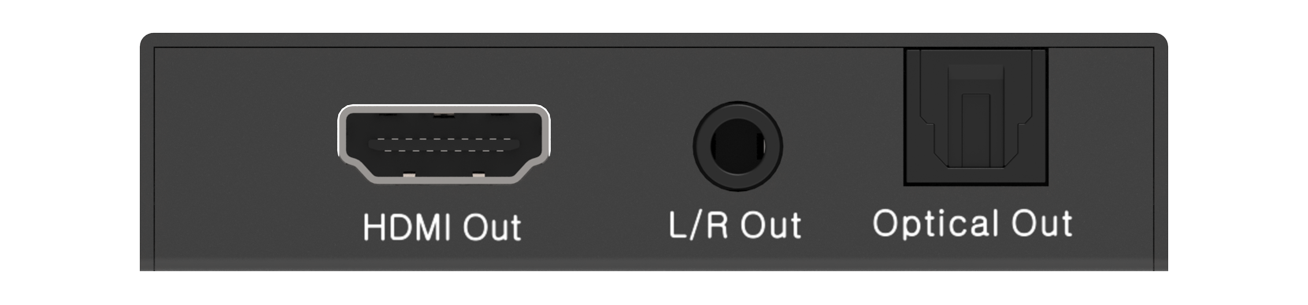

| Output | 1 x HDMI Type A[19-pin female] 1 x L/R Audio Out [3.5mm Stereo Mini-jack] 1 x Optical Out[S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 73.5mm [W] x60.7mm [D] x17mm [H] |
| Weight | 130g |
| Power Supply | Input： AC100- 240V 50/60 Hz Output: DC5V/1A(US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 1W(Max) |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDMI Audio Extractor for?
4K60 HDMI Audio Extractor is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-MB01?
MCVT-MB01 is listed with: 1 in / 1 out; 4K60. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-MB01?
WhatsApp MEGRA with model MCVT-MB01, the client name, and the location. Add room type and I/O or run length if you already know them.
What still needs confirming for MCVT-MB01?
Send the source type and the destination type on WhatsApp, plus the model code, so the format match can be checked against this sheet.
