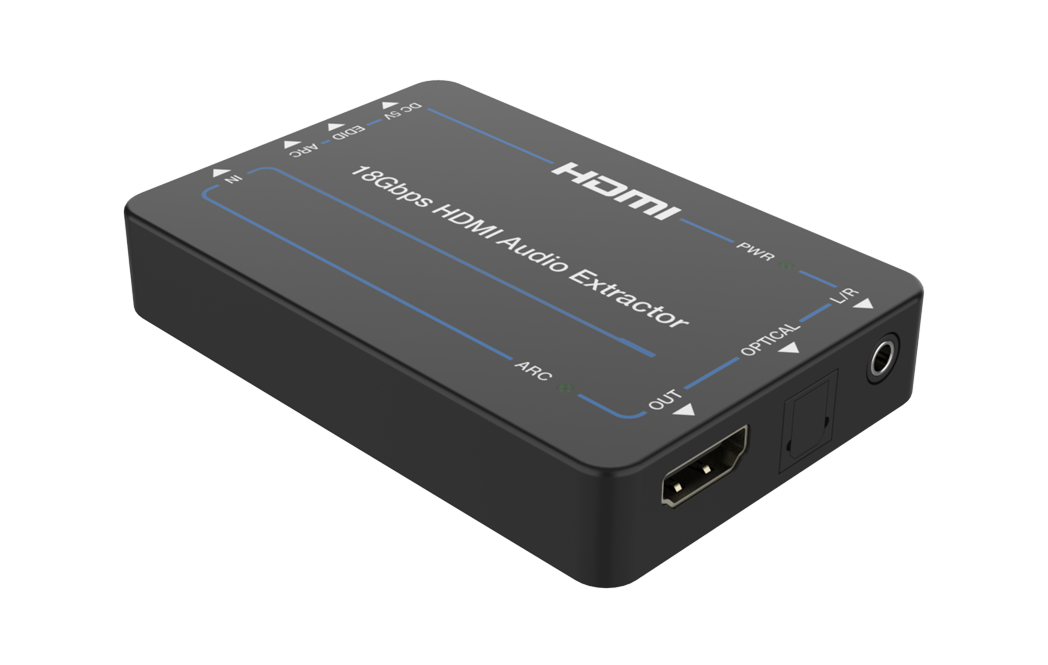

4K60 HDMI Audio Extractor (ARC)
MCVT-MB01EB
4K60 HDMI Audio Extractor (ARC) (MCVT-MB01EB) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 1 out; 4K60; HDMI 2.0b; Up to 4k2k@60Hz 4:4:4.
- HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Video resolution up to 4K2K@60Hz (YUV 4:4:4)

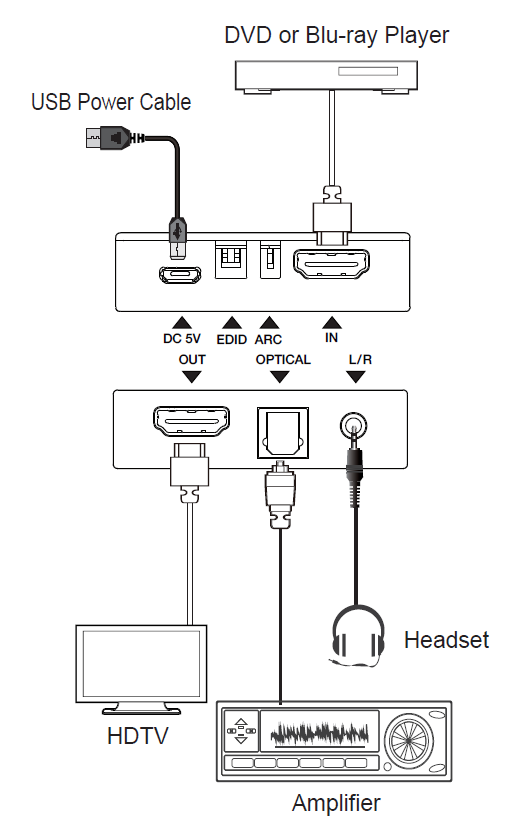

- Support extracting audio from HDMI source device to multi-channel optical fiber (SPDIF) and L/R analog audio output
- Support ARC function. when ARC is enabled, the audio will be returned to the A/V receiver via the optical port
- Supported optical audio formats: LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4k2k@60Hz 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4/4:2:2 |
| Color Depth | 8/10/12 bit（1080P） 8/10/12 bit（4K@24/30Hz） 8 bit（4K@60Hz） |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio Formats | LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Input | 1x HDMI IN [Type A, 19-pin female] |

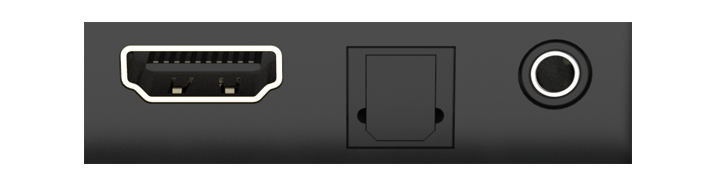

| Output | 1x HDMI OUT [Type A, 19-pin female] 1x OPTICAL OUT [S/PDIF] 1x L/R OUT [3.5mm, Stereo Mini-jack] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 90mm[W] x 60mm[D] x 16mm[H] |
| Weight | 48g |
| Power Supply | DC 5V / 1A |
| Power Consumption | 2W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDMI Audio Extractor (ARC) for?
4K60 HDMI Audio Extractor (ARC) is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-MB01EB?
MCVT-MB01EB is listed with: 1 in / 1 out; 4K60; HDMI 2.0b; Up to 4k2k@60Hz 4:4:4. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-MB01EB?
WhatsApp MEGRA with model MCVT-MB01EB, the client name, and the location. Add room type and I/O or run length if you already know them.
What still needs confirming for MCVT-MB01EB?
Send the source type and the destination type on WhatsApp, plus the model code, so the format match can be checked against this sheet.
