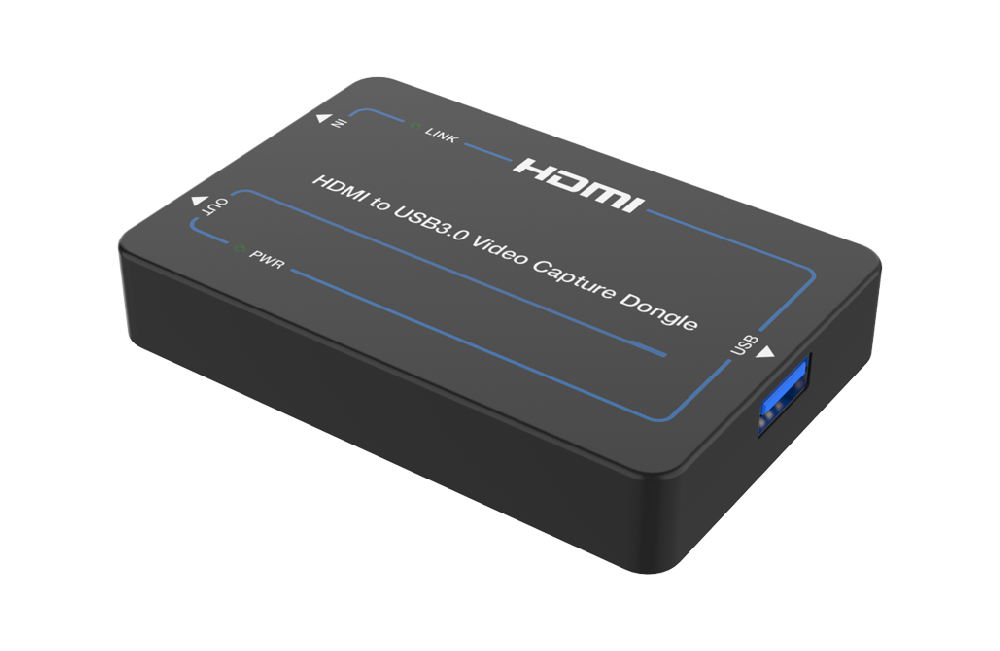

HDMI to USB 3.0 Capture
MCVT-UH60EB
HDMI to USB 3.0 Capture (MCVT-UH60EB) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: Converter; 4K; HDMI 2.0b; Up to 4K2K@60Hz 4:4:4.
- HDMI 2.0b, HDCP 2.2, USB 2.0 and USB 3.0 compliant
- 18Gbps HDMI video bandwidth, 5Gbps USB video bandwidth
- HDMI INPUT video resolution reaches up to 4K2K@60Hz;
- Support 4K2K@60Hz downscaling to 1080p60Hz
- Support 4K60 4:4:4 HDMI loop out
- Operative in Windows, Linux and OS X
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | HDMI: 18 Gbps; USB: 5Gbps |
| Video Resolution | Up to 4K2K@60Hz 4:4:4 |
| Video Compression Standards | Video will be in YUV2 with no compression if outputting via a USB 3.0 port; Video will be compressed in MJPEG if outputting via a USB 2.0 port |
| USB OUTPUT Resolution | Support 4K24/25/30/50/60 INPUT down scaling to 1080P OUTPUT; For resolutions lower than 1080P, INPUT keeps the same as OUTPUT |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| HDMI Audio Format | PCM 2.0 |
| USB Audio Format | PCM 2.0 |
| USB Version | USB 3.1 GEN 1 |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connection | |
| Input | 1x HDMI Type A [19-pin female] |

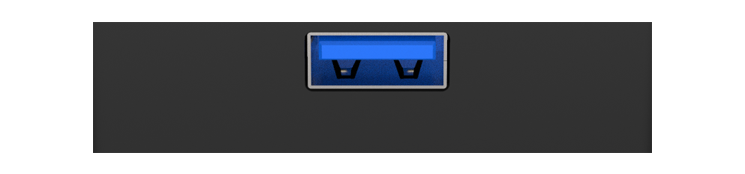

| Outputs | 1x HDMI Type A [19-pin female] 1x USB Type A [female] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimension | 90mm[W] x 60mm[D] x 16mm[H] |
| Weight | 47g |
| Power Supply | USB 5V / 900mA |
| Power Consumption | 3.5W (Max) |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (Non-condensing) |
Questions about this model
What job is HDMI to USB 3.0 Capture for?
HDMI to USB 3.0 Capture is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-UH60EB?
MCVT-UH60EB is listed with: Converter; 4K; HDMI 2.0b; Up to 4K2K@60Hz 4:4:4. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-UH60EB?
WhatsApp MEGRA with model MCVT-UH60EB, the client name, and the location. Add room type and I/O or run length if you already know them.
What does MCVT-UH60EB convert?
The title lists HDMI to USB 3.0 Capture. That is the format bridge for this SKU. Confirm resolution on the specification table.
