One-Key-Display USB-C to HDMI Adapter
MCVT-UCH1

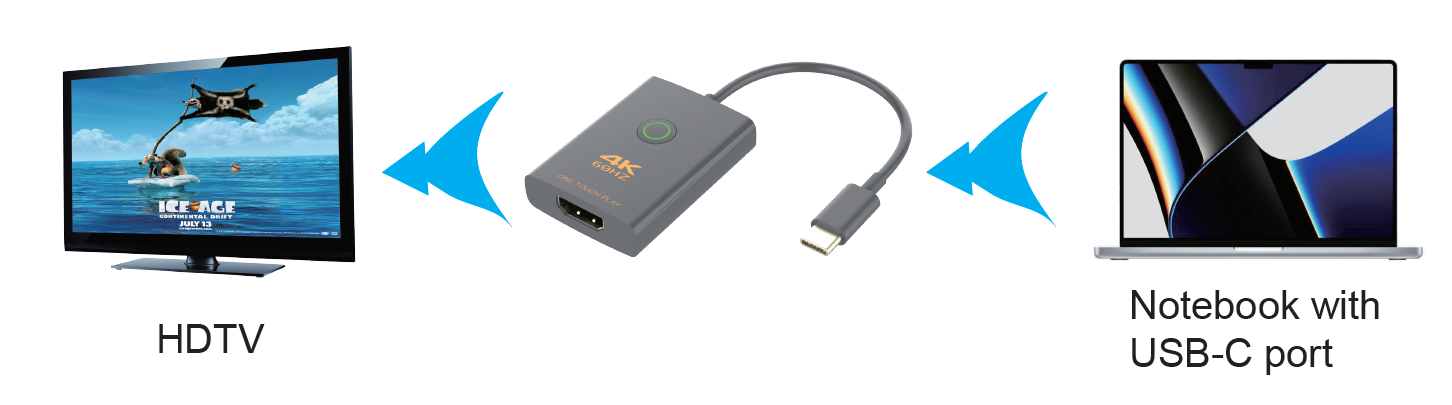

One-Key-Display USB-C to HDMI Adapter (MCVT-UCH1) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 1 out; 4K; HDMI 2.0b; Up to 4K2K@60Hz.
- HDMI 2.0 and DP 1.2a compliant
- Support 18Gbps HDMI video bandwidth
- Video resolution up to 4K@60Hz 4:4:4
- One click video mute for security
For quote: model + client name + location
Specifications
| Mechanical | |
| HDMI Compliance | HDMI 2.0b |
| USB-C Compliance | DP 1.2a |
| Video Bandwidth | HDMI: 18 Gbps |
| Video Resolution | Up to 4K2K@60Hz |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2 |
| Audio Format | LPCM 7.1CH, Dolby True HD, and DTS-HD Master |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connection | |
| Input | 1x USB Type C |
| Output | 1x HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Plastic |
| Color | Apple gray |
| Dimensions | 55mm[W] x 36mm[D] x 12mm[H] |
| Weight | 23g |
| Power Supply | USB 5V / 1A |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is One-Key-Display USB-C to HDMI Adapter for?
One-Key-Display USB-C to HDMI Adapter is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-UCH1?
MCVT-UCH1 is listed with: 1 in / 1 out; 4K; HDMI 2.0b; Up to 4K2K@60Hz. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-UCH1?
WhatsApp MEGRA with model MCVT-UCH1, the client name, and the location. Add room type and I/O or run length if you already know them.
What does MCVT-UCH1 convert?
The title lists One-Key-Display USB-C to HDMI Adapter. That is the format bridge for this SKU. Confirm resolution on the specification table.
