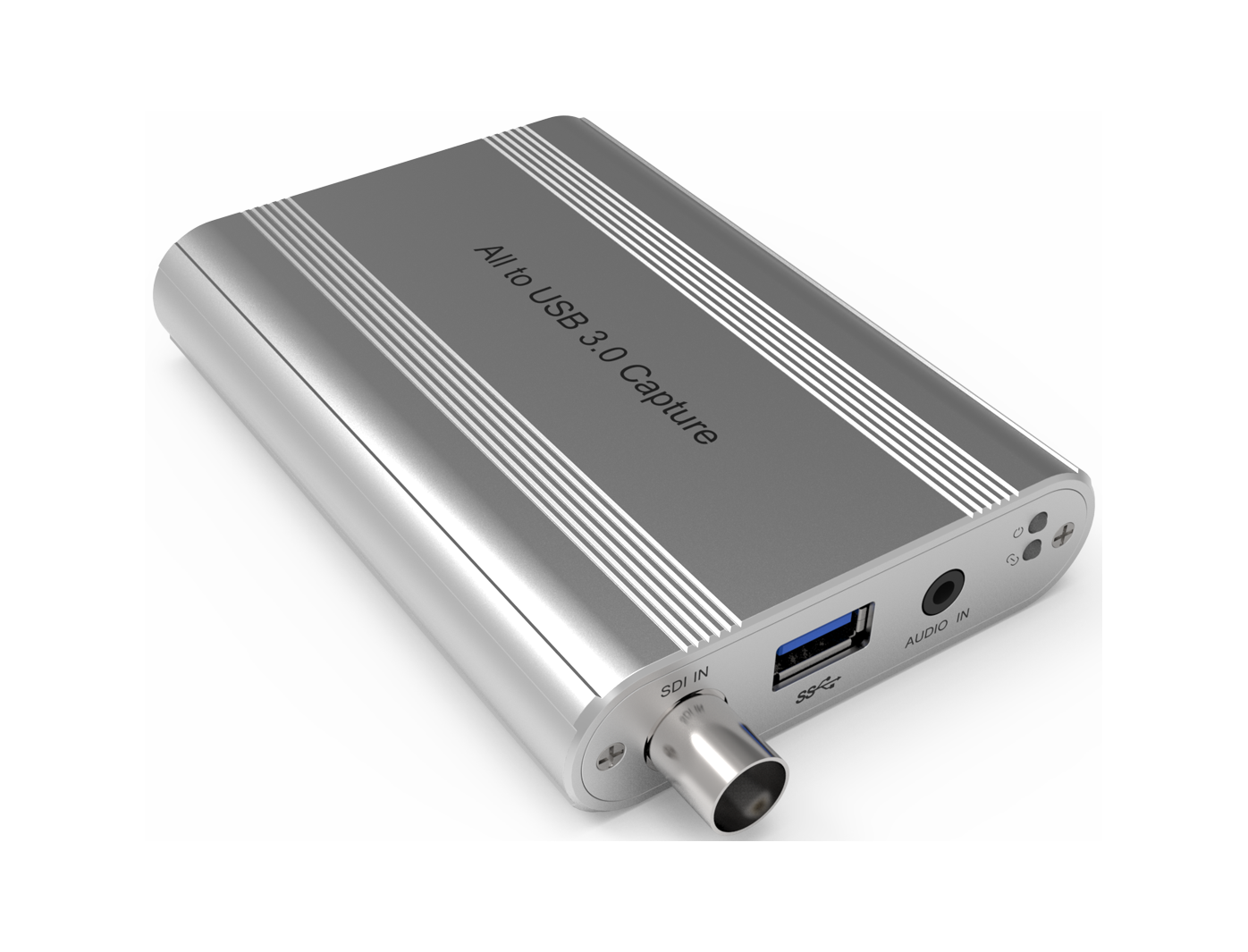

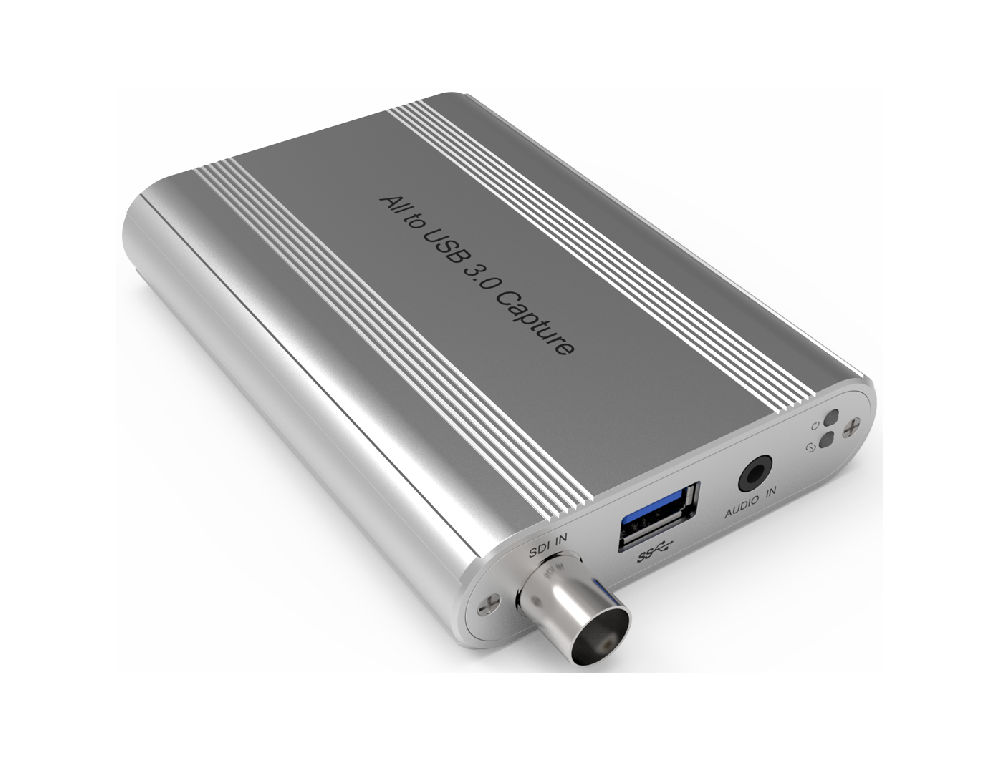

Multi-Format to USB3.0 Capture
MCVT-UA60
Multi-Format to USB3.0 Capture (MCVT-UA60) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 640 out.
- Supports AV, YPbPr, VGA, DVI, HDMI and SDI video input capture.
- Supports input interface automatic recognition.
- Supports resolution 480i~1920×1200 input format video capture.
- Supports AV, YPbPr, VGA and DVI analog stereo audio inputs.
- Compatibles Windows, Linux, OS X operating systems.
- Compatibles USB3.0 about transmission rate up to 300~350MB/s.
For quote: model + client name + location
Specifications
| Technical | |
| Host port | 1x USB [USB Type A, USB3.0 — 300~350MB/s] |

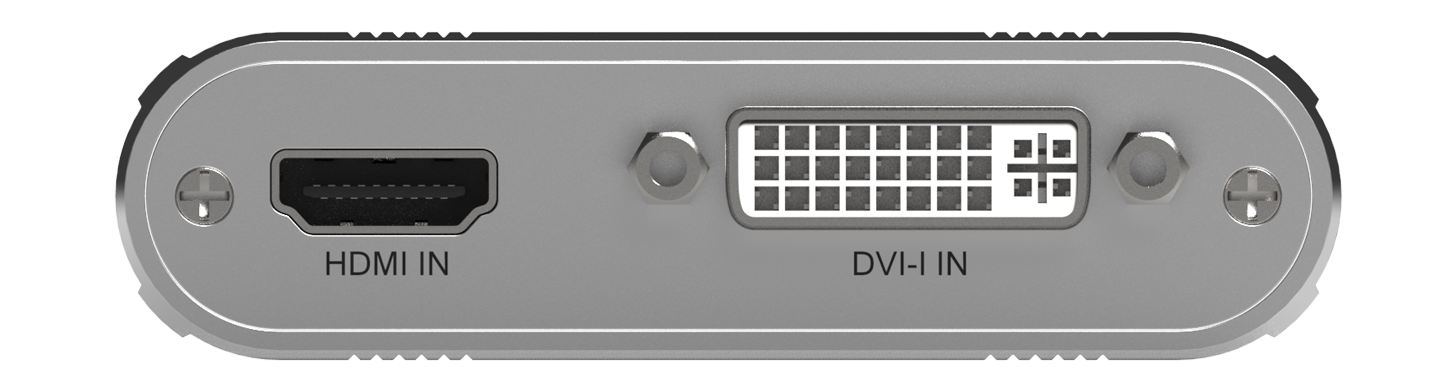

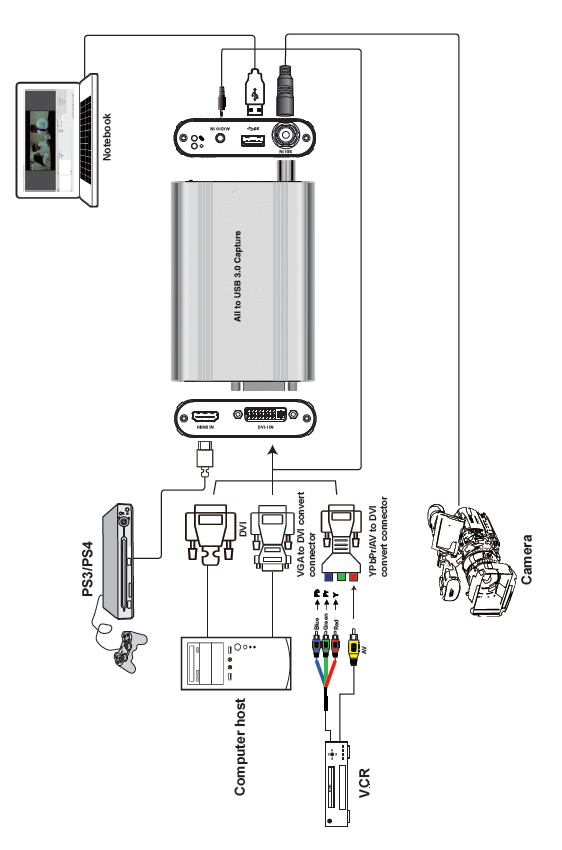

| Input ports | 1x DVI IN [DVI-I, Attention: This is a common interface, it can also connect VGA/YPbPr/ AV source input though converter joint.] 1x HDMI IN [19-pin female] 1x SDI IN [BNC] 1x AUDIO IN [3.5mm Stereo Mini-jack] |
| HDMI input resolution | 480i, 480p, 576i, 576p, 720p50/60, 1080i50/60, 1080p24/25/30/50/60 |
| SDI input resolution | 480i, 576i, 720p50/60, 1080I50/60, 1080P24/25/30/50/60 |
| VGA input resolution | 640x480,800x600,1024x768,1280x1024,1400x1050,1600x1200 |
| DVI input resolution | 720x480i/p60Hz, 720x576i/p50Hz, 1280x720p50Hz, 1280x720p60Hz, 1920x1080i/p50Hz, 1920x1080i/p60Hz |
| YPbPr input resolution | 480i, 576i, 480p, 576p, 720p50/60, 1080I50/60 |
| AV input resolution | 480i, 576i |
| Output resolution | 640x360, 640x480, 720x480, 720x576, 800x600, 856x480, 960x540, 1024x576, 1024x768, 1280x720, 1280x1024, 1280x960, 1280x800, 1368x768, 1440x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200 |
| Frame Rate | 25/29.97/30/50/59.94/60fps |
| Audio and video capture | UVC (USB video class) and UAC (USB audio class) standard |
| Supports OS | Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above) |
| Software compatibility | Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and Potplayer (Windows) etc. |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White |
| Dimension | 114mm [W] x 82mm [D] x 22mm [H] |
| Weight | 168g |
| Power Consumption | 3.9W |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (Non-condensing) |
Questions about this model
What job is Multi-Format to USB3.0 Capture for?
Multi-Format to USB3.0 Capture is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-UA60?
MCVT-UA60 is listed with: 1 in / 640 out. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-UA60?
WhatsApp MEGRA with model MCVT-UA60, the client name, and the location. Add room type and I/O or run length if you already know them.
What does MCVT-UA60 convert?
The title lists Multi-Format to USB3.0 Capture. That is the format bridge for this SKU. Confirm resolution on the specification table.
