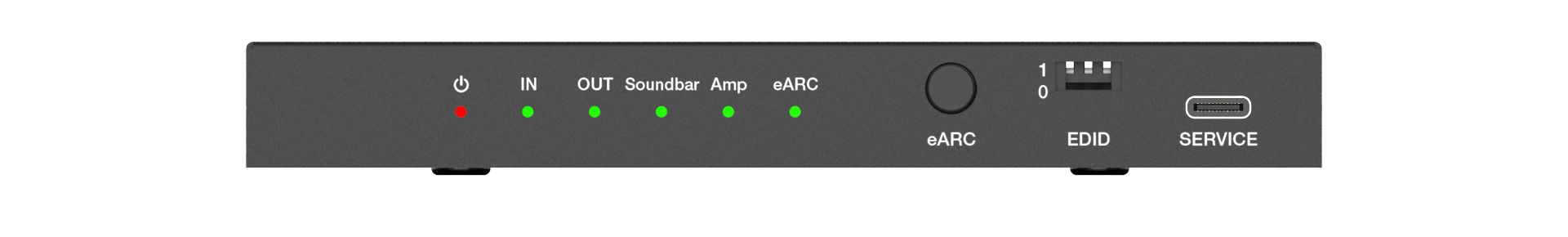

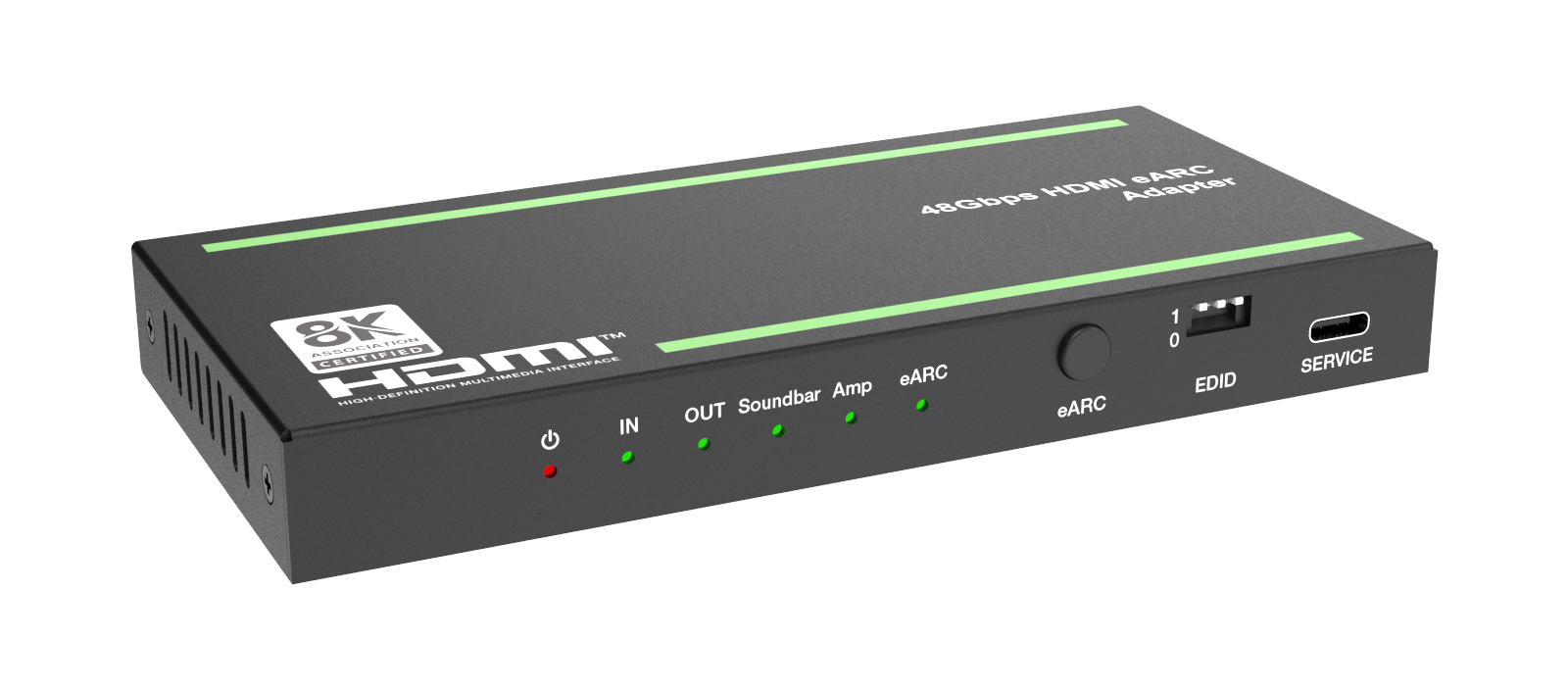

8K60 eARC Audio Adapter
MCVT-SWC11A
8K60 eARC Audio Adapter (MCVT-SWC11A) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: Converter; 8K; HDMI 2.1; Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit.
- HDCP 2.3 compliant
- Support 48Gbps video bandwidth and video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
- VRR, ALLM, QMS, QFT, SBTM are supported, as specified in HDMI 2.1
- Support HDR, HDR10, HDR10+, Dolby Vision pass-through
- Support LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master,DTS:X Audio pass-through
- HDMI input source and TV eARC/ARC audio are de-embedded to S/PDIF, L/R and HDMI audio to output
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit，10-bit, 12-bit |
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X Amp AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X Audio de-embedding output: Optical: PCM 2.0CH/Dolby/DTS 5.1CH L/R: PCM 2.0CH |
| HDR | HDR, HDR 10, HDR 10+, Dolby Vision, HLG |
| ESD Protection | IEC 61000-4-2:±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1 × Source IN [HDMI Type A, 19-pin female] |
| Output | 1 × TV(eARC) OUT [HDMI Type A, 19-pin female] 1 × Soundbar eARC OUT [HDMI Type A, 19-pin female] 1 × Amp AUDIO OUT [HDMI Type A, 19-pin female] 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack] |
| Control | 1 × SERVICE [USB Type C, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimension | 145mm [W] × 68mm [D] × 18mm [H] |
| Weight | 262g |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified） |
| Power Consumption | 5.2W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage Temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidit | 20 - 90% RH (non-condensing) |
| Recommended HDMI Cable | |
| Video Resolution | 8K60 / 4K60 / 1080P |
| HDMI Cable Length (HDMI IN / OUT) | 3m/10ft (Ultra HDMI 2.1) / 8m/26ft / 15m/49ft |
Questions about this model
What job is 8K60 eARC Audio Adapter for?
8K60 eARC Audio Adapter is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-SWC11A?
MCVT-SWC11A is listed with: Converter; 8K; HDMI 2.1; Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-SWC11A?
WhatsApp MEGRA with model MCVT-SWC11A, the client name, and the location. Add room type and I/O or run length if you already know them.
What still needs confirming for MCVT-SWC11A?
Send the source type and the destination type on WhatsApp, plus the model code, so the format match can be checked against this sheet.
