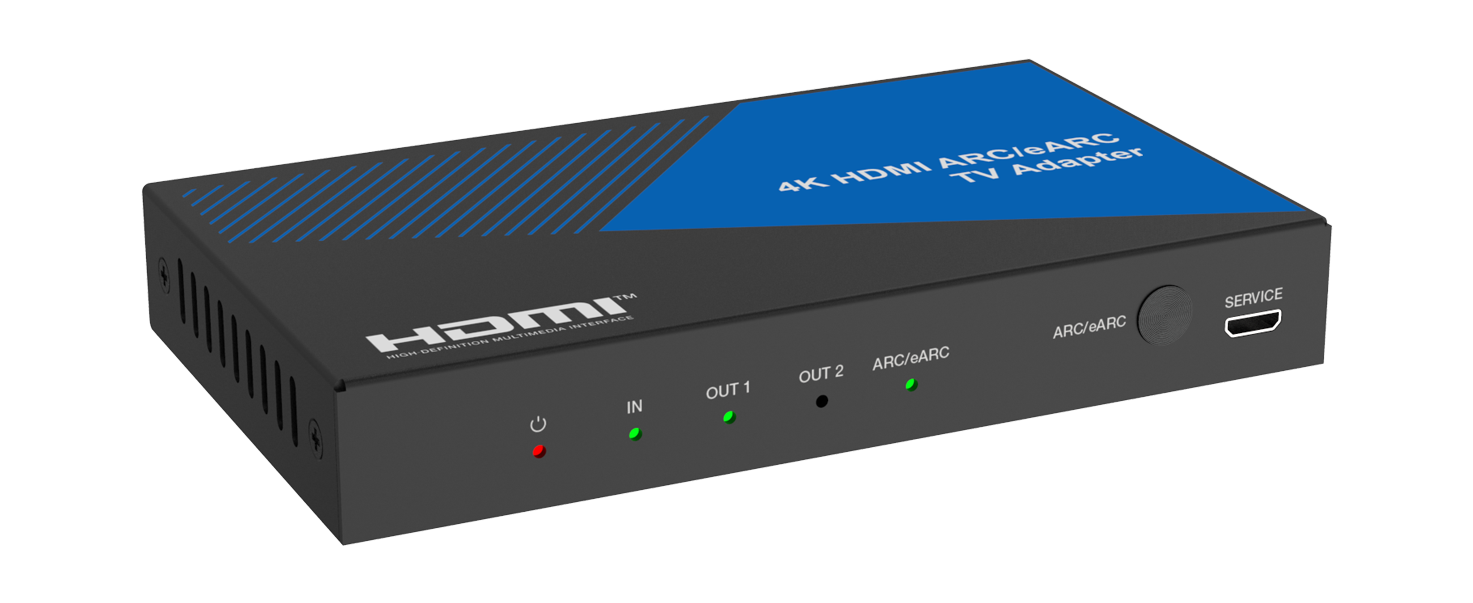

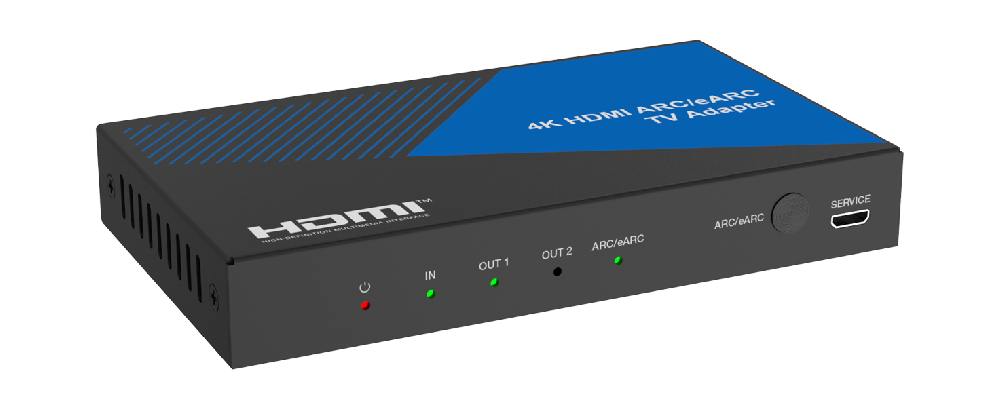

4K60 HDMI ARC/eARC Audio Processor
MCVT-SWB11A
4K60 HDMI ARC/eARC Audio Processor (MCVT-SWB11A) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 1 out; 4K60; HDMI 2.0b; Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4.
- HDMI 2.0b and HDCP 2.3 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
- Support HDR, HDR10, HDR10+,Dolby Vision and HLG pass through
- Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Perfect solution for SONOS ARC/BOSE 500/BOSE 700 Soundbars and other eARC/ARC audio/video receivers
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |

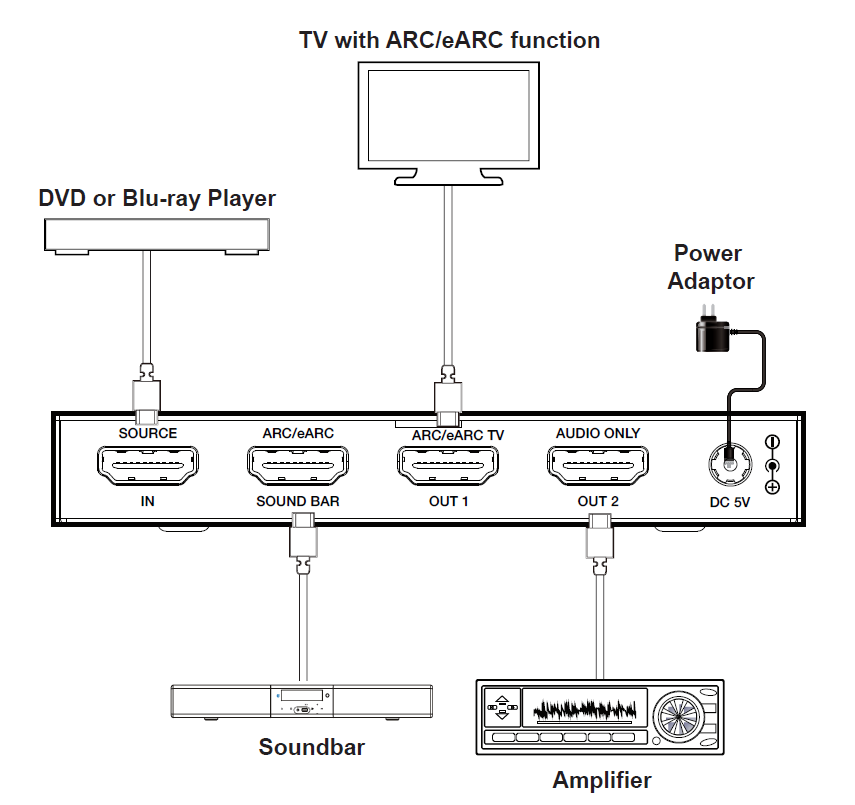

| Connections | |
| Input | 1x HDMI IN [Type A, 19-pin female] |
| Output | 1x HDMI SOUND BAR [Type A, 19-pin female] 2x HDMI OUT [Type A, 19-pin female] |
| Control | 1x SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 120mm (W) x 70mm (D) x 16mm (H) |
| Weight | 210g |
| Power Supply | DC 5V/1A |
| Power Consumption | 2.28W (Max) |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Questions about this model
What job is 4K60 HDMI ARC/eARC Audio Processor for?
4K60 HDMI ARC/eARC Audio Processor is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-SWB11A?
MCVT-SWB11A is listed with: 1 in / 1 out; 4K60; HDMI 2.0b; Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-SWB11A?
WhatsApp MEGRA with model MCVT-SWB11A, the client name, and the location. Add room type and I/O or run length if you already know them.
What still needs confirming for MCVT-SWB11A?
Send the source type and the destination type on WhatsApp, plus the model code, so the format match can be checked against this sheet.
