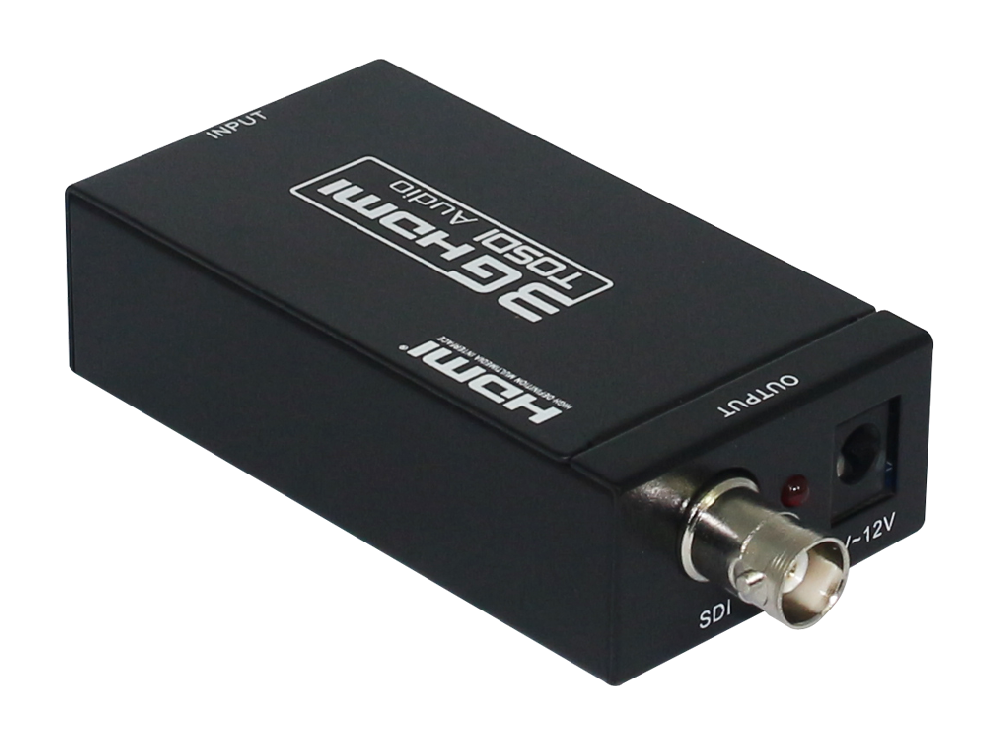

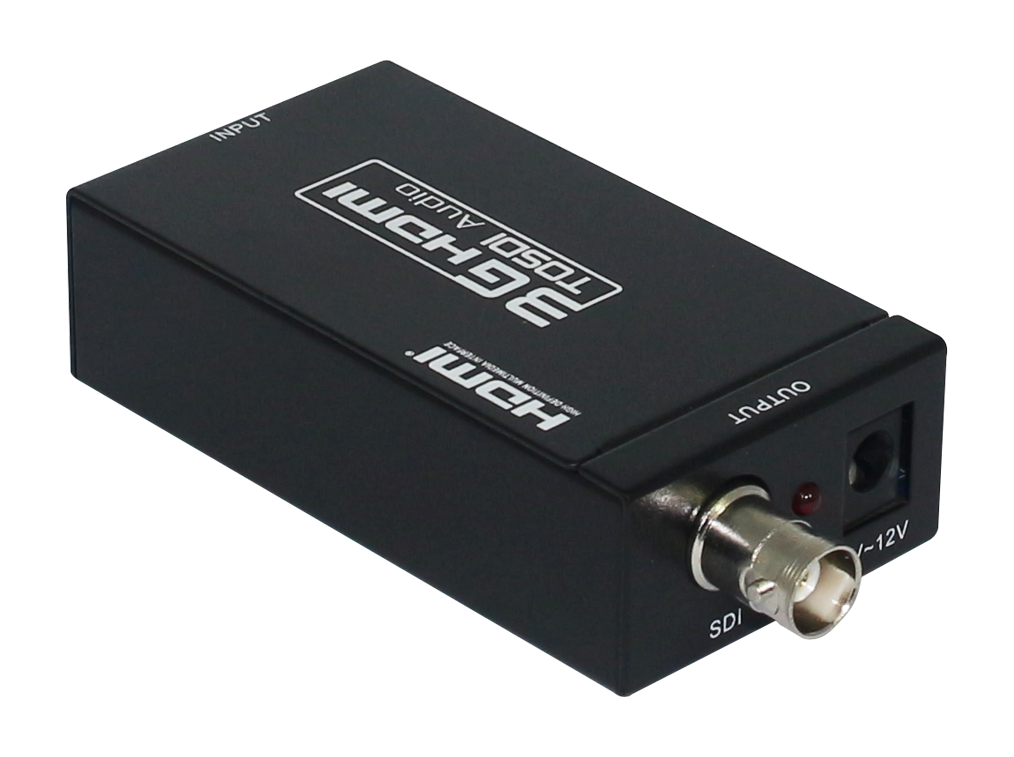

HDMI to 3G-SDI Converter
MCVT-S009
HDMI to 3G-SDI Converter (MCVT-S009) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: 1 in / 1 out.
- Shows HDMI source on SDI display.
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
- Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
- Converts HDMI signal to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s); 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s); 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
For quote: model + client name + location
Specifications
| Input Port | 1x HDMI |

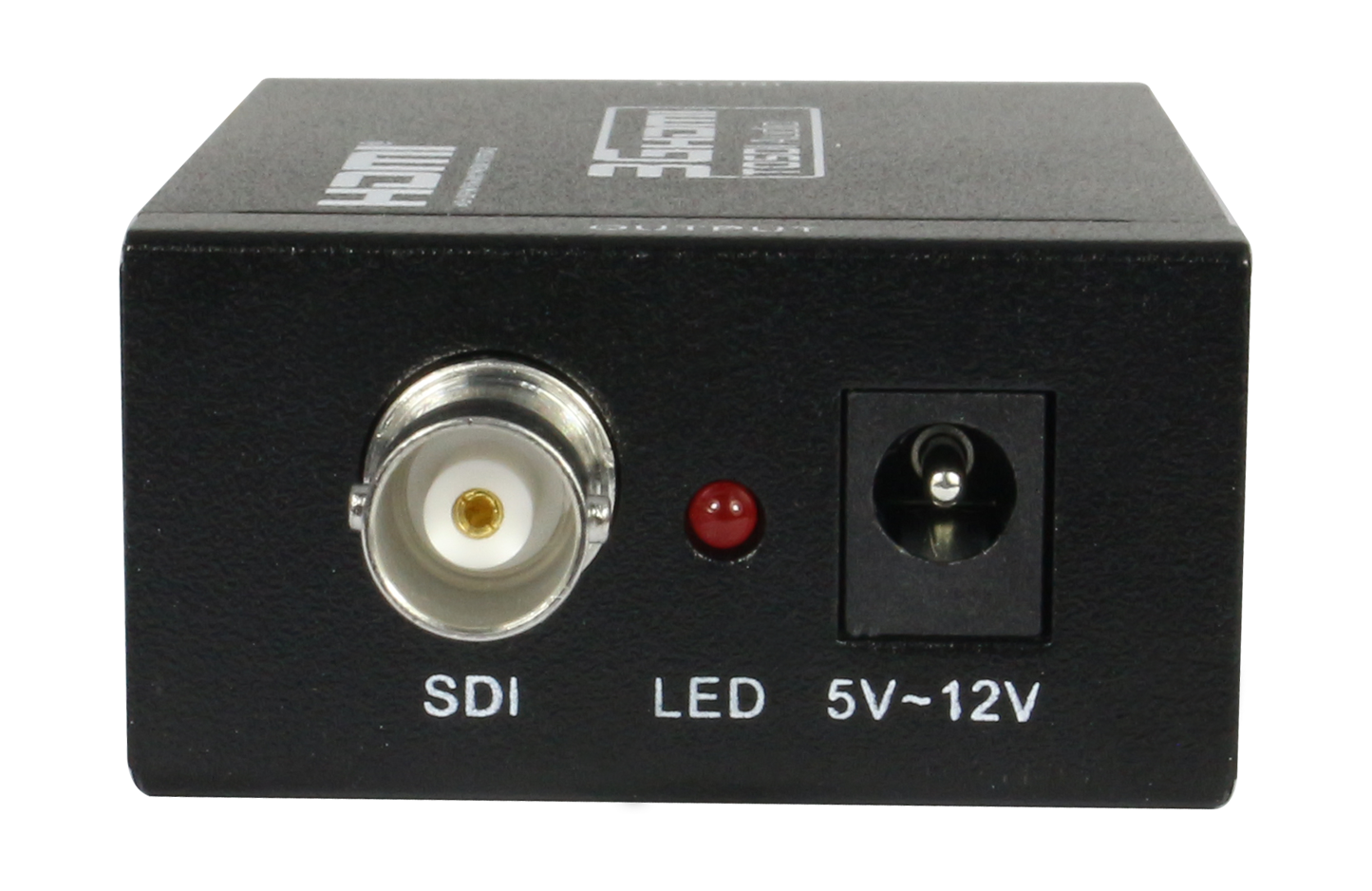

| Output Port | 1x BNC (SDI/HD-SDI/3G-SDI) |
| SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
| In/Output Resolution | 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60; 1080p@23.97/24/25/29.97/30/50/59.94/60 |
| Power Supply | DC 5V-12V |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Dimension | 80mm x 41mm x 25mm |
| Weight | 150g |
| Operating Temperature | 0°C - 40°C / 32°F - 104°F |
| Storage Temperature | -20°C - 60°C / -4°F - 140°F |
| Relative Humidity | 20 - 90% RH (Non-condensing) |
| Power Consumption (Max) | 5W |
Questions about this model
What job is HDMI to 3G-SDI Converter for?
HDMI to 3G-SDI Converter is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-S009?
MCVT-S009 is listed with: 1 in / 1 out. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-S009?
WhatsApp MEGRA with model MCVT-S009, the client name, and the location. Add room type and I/O or run length if you already know them.
What does MCVT-S009 convert?
The title lists HDMI to 3G-SDI Converter. That is the format bridge for this SKU. Confirm resolution on the specification table.
