3G-SDI to HDMI Converter
MCVT-S008
3G-SDI to HDMI Converter (MCVT-S008) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: Converter.
- Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
- Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

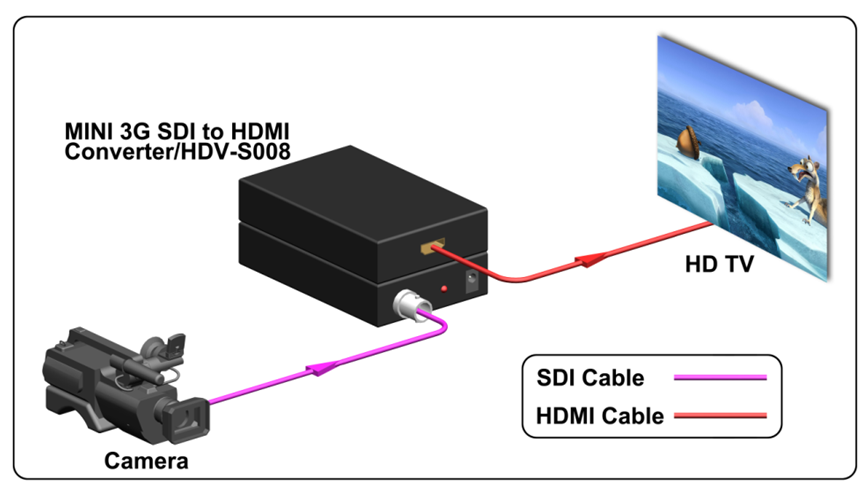

- Connect with other units to extend your signal over long distances
For quote: model + client name + location
Specifications

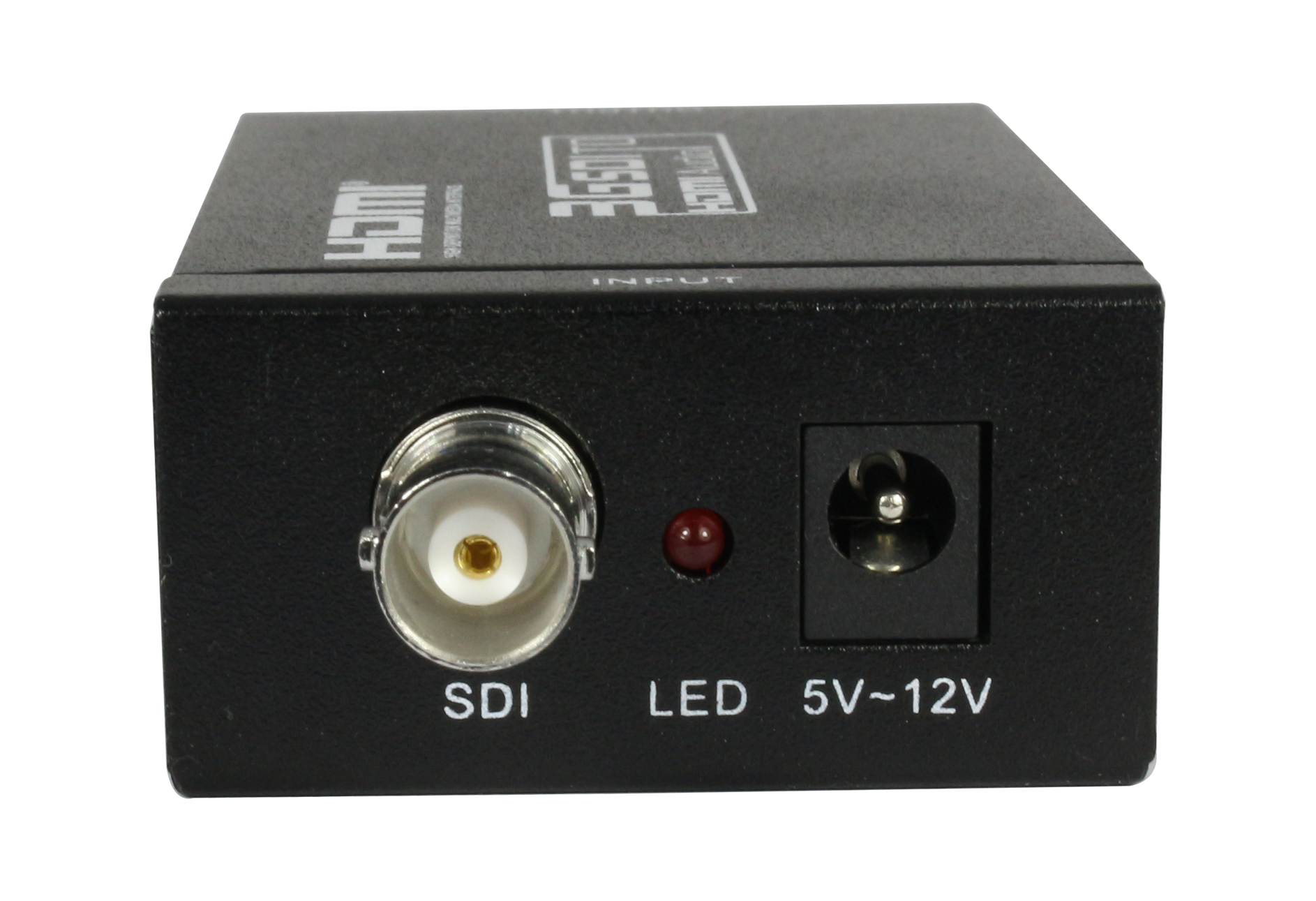

| Specification | Input Port / 1 x BNC (SDI/HD-SDI/3G-SDI) |
| Output Port | 1 x HDMI |
| SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
| In/Output Resolution | 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60 |
| Power Supply | DC 5V -12V |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Dimension | 80mm x 41mm x 25mm |
| Weight | 150g |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 5W |
Questions about this model
What job is 3G-SDI to HDMI Converter for?
3G-SDI to HDMI Converter is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-S008?
MCVT-S008 is listed with: Converter. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-S008?
WhatsApp MEGRA with model MCVT-S008, the client name, and the location. Add room type and I/O or run length if you already know them.
What does MCVT-S008 convert?
The title lists 3G-SDI to HDMI Converter. That is the format bridge for this SKU. Confirm resolution on the specification table.
