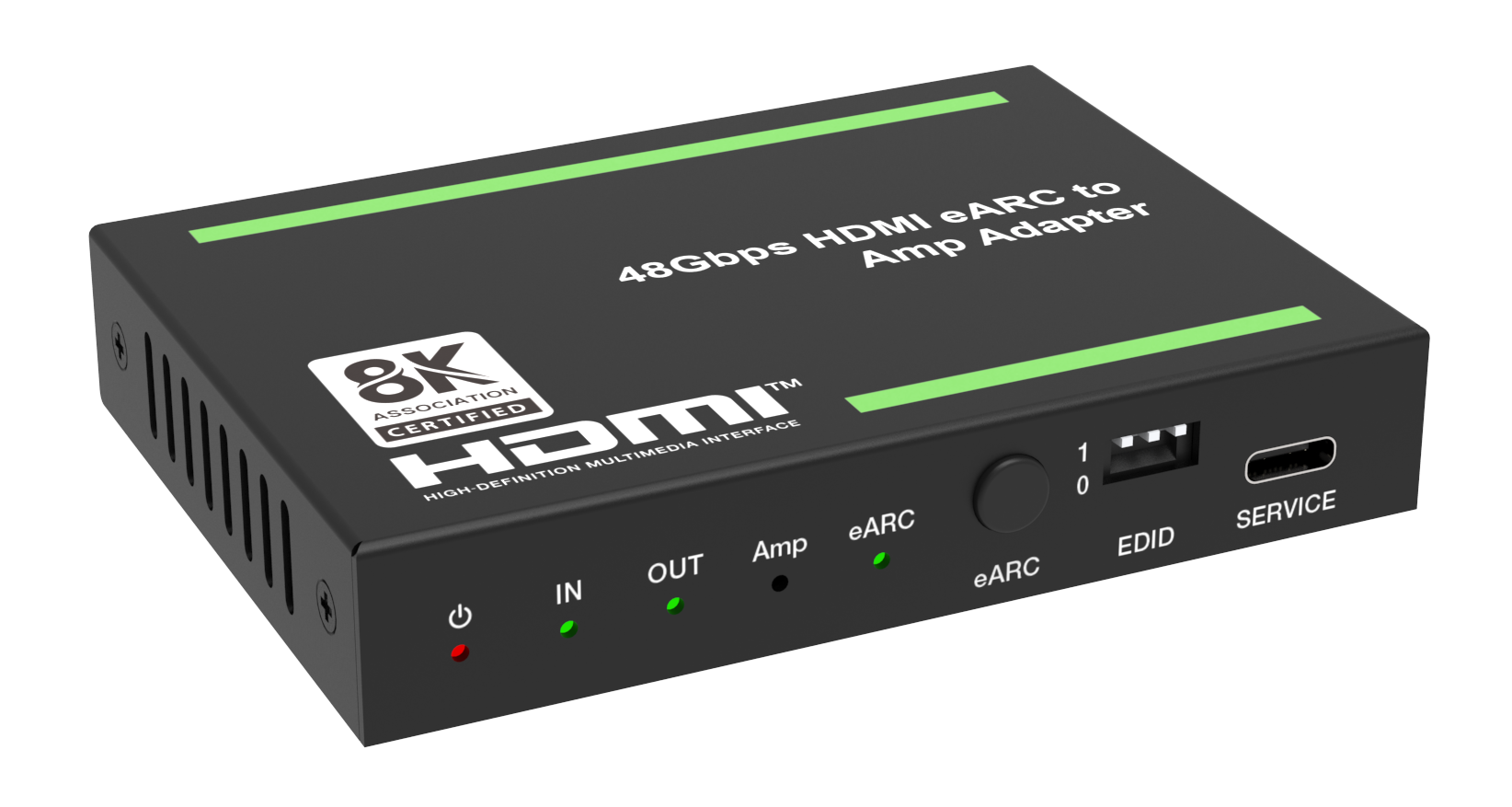

8K60 eARC Audio to Amplifier Adapter
MCVT-MC02
8K60 eARC Audio to Amplifier Adapter (MCVT-MC02) is a MEGRA MATRIX converter that adapts one video or audio format so mixed equipment can connect.
It is for rooms that mix HDMI with ARC, eARC, SDI, or USB capture.
Key facts from this model: Converter; 8K; HDMI 2.1; Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit.
- HDCP 2.3 compliant
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth, as specified in HDMI 2.1
- Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- Support VRR, ALLM, QMS, QFT, SBTM, as specified in HDMI 2.1
- HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
For quote: model + client name + location
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Audio Latency | No Latency |
| Video Latency | No Latency |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit，10-bit, 12-bit |
| Audio Formats | HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO BREAKOUT: OPTICAL OUT: PCM 2.0CH, Dolby, DTS 5.1CH L/R OUT: PCM 2.0CH |
| HDR | HDR, HDR 10, HDR 10+, Dolby Vision, HLG |
| ESD Protection | IEC 61000-4-2:±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1 × Source IN [HDMI Type A, 19-pin female] |
| Output | 1 × TV(eARC) OUT [HDMI Type A, 19-pin female] 1 × Amp AUDIO OUT [HDMI Type A, 19-pin female] |
| Control | 1 × SERVICE [USB Type C, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimension | 95mm [W] × 68mm [D] × 18mm [H] |
| Weight | 178g |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified） |
| Power Consumption | 4W（Max） |
| Operation Temperature | 32°F - 104°F / 0°C - 40°C |
| Storage Temperature | -4°F - 140°F / -20°C - 60°C |
| Relative Humidit | 20 - 90% RH (non-condensing) |
| Recommended HDMI Cable | |
| Video Resolution | 8K60 / 4K60 / 1080P |
| HDMI Cable Length (HDMI IN / OUT) | 2m/6.6ft ~ 3m/10ft (Ultra HDMI 2.1) / 5m/16ft / 15m/49ft |
Questions about this model
What job is 8K60 eARC Audio to Amplifier Adapter for?
8K60 eARC Audio to Amplifier Adapter is a MEGRA MATRIX converter. It adapts one video or audio format so mixed equipment can connect.
What are the key facts and limits of MCVT-MC02?
MCVT-MC02 is listed with: Converter; 8K; HDMI 2.1; Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit. Full connections are in the specification table on this page.
When should I choose a converter instead of a matrix, switcher, or extender?
Choose a converter only when connectors or formats do not match — HDMI with ARC/eARC, SDI, or USB capture. It is a format bridge. It does not replace a matrix (any-to-any), a switcher (source select), a splitter (one-to-many), or an extender (distance). Buy this family for the in/out pair; buy the other family for the room job.
What should I send for a correct quote on MCVT-MC02?
WhatsApp MEGRA with model MCVT-MC02, the client name, and the location. Add room type and I/O or run length if you already know them.
What does MCVT-MC02 convert?
The title lists 8K60 eARC Audio to Amplifier Adapter. That is the format bridge for this SKU. Confirm resolution on the specification table.
